TASCAM DR-05X STEREO HANDHELD AUDIO RECORDER/USB INTERFACE
SKU
TAS-DR-05X
MFR#
DR-05X
was
$219.00
Special Price
$99.00
Availability:
Out of stock

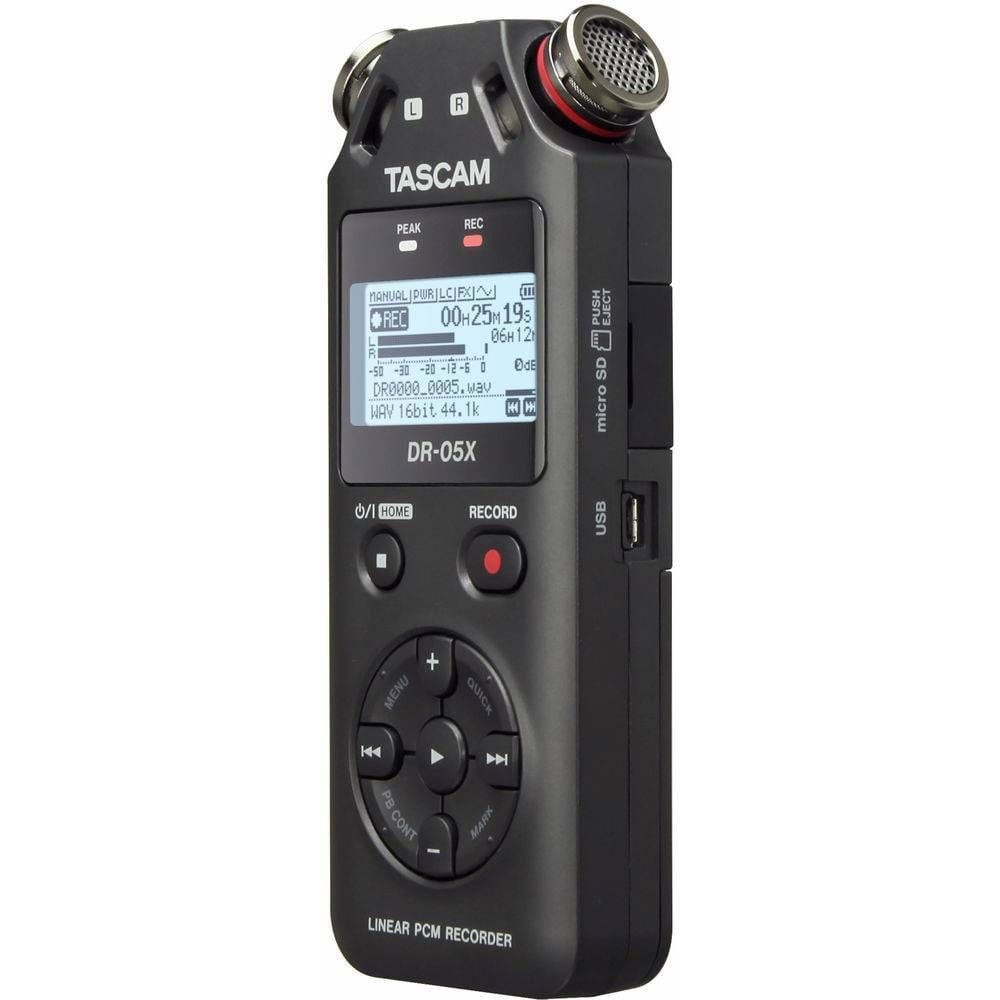

TASCAM DR-05X STEREO HANDHELD AUDIO RECORDER/USB INTERFACE
For speech, sound effects, and live music recording applications, the TASCAM DR-05X portable handheld recorder is capable of capturing two tracks of high-resolution audio with no external microphones required. Its onboard omnidirectional condenser mics are fixed in an A-B arrangement for spacious stereo imaging of your source. Equally adept as a handheld device, stand-mounted, or camera-mounted setups, the DR-05X can handle anything from sampling sessions and recitals to interviews and podcasts.
Key Features
- Speech, Effects, and Music Recording
- Onboard Omni Mics, Built-In Speaker
- 3.5mm Mic/Line Input w/ Plug-In Power
- Built-In Tuner, EQ, and Reverb
- Records in WAV Format up to 96 kHz
- 3.5mm Line/Headphone Output
- Auto Recording & Pre-Recording Functions
- Battery Life up to 17.5 Hours
- Supports microSDXC Cards up to 128GB
- Auto Level, Limiter, and Low-Cut Filters
Specs
| Number of Tracks |
WAV:
2 |
| Maximum Sampling Rate |
96 kHz / 24-Bit
|
| Microphone |
Built-In Omnidirectional Condenser Stereo Pair, A/B Configuration
|
| Built-In Speaker |
Yes, 0.3 W Mono
|
| Display |
Monochrome LCD (Backlit)
|
| Memory Card Support |
microSD (64 MB 3 GB)
microSDHC (4 GB to 32 GB) microSDXC (48 Up to 128 GB) |
| Internal Storage |
None
|
| Audio File Formats |
BWF, MP3, WAV
|
| Sample Rates |
WAV:
44.1 / 48 / 96 kHz |
| Bit Depth |
16 / 24-Bit
|
| Bit Rates |
32 to 320 kb/s (Record)
32 to 320 kb/s + VBR (Playback) |
| Signal Processing & FX |
Auto Gain, EQ, Limiter, Low-Cut Filter, Reverb
|
| Timecode Support |
No
|
| Recording Time |
WAV 44.1 kHz/16-Bit:
1 Hr 41 Mins per GB (Stereo) WAV 48 kHz/16-Bit: 1 Hr 33 Mins per GB (Stereo) WAV 96 kHz/16-Bit: 46 Mins per GB (Stereo) WAV 44.1 kHz/24-Bit: 1 Hr 7 Mins per GB (Stereo) WAV 48 kHz/24-Bit: 1 Hr 2 Mins per GB (Stereo) WAV 96 kHz/24-Bit: 31 Mins per GB (Stereo) MP3 32 kb/s: 74 Hrs 32 Mins per GB (Stereo) MP3 64 kb/s: 37 Hrs 16 Mins per GB (Stereo) MP3 96 kb/s: 24 Hrs 50 Mins per GB (Stereo) MP3 128 kb/s: 18 Hrs 38 Mins per GB (Stereo) MP3 192 kb/s: 12 Hrs 25 Mins per GB (Stereo) MP3 256 kb/s: 9 Hrs 19 Mins per GB (Stereo) PCM 320 kb/s: 7 Hrs 27 Mins per GB (Stereo) |
| Analog I/O |
1 x 1/8" / 3.5 mm TRS Female Unbalanced Line/Mic Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone/Line Output |
| Digital I/O |
None
|
| Phantom Power |
None
|
| Plug-In Power |
Yes
|
| System Connection |
1 x Micro-USB (2.0)
|
| Frequency Response |
20 Hz to 20 kHz +1/-3 dB (at 44.1 kHz, JEITA)
20 Hz to 22 kHz +1/-3 dB (at 48 kHz, JEITA) 20 Hz to 40 kHz +1/-3 dB (at 96 kHz, JEITA) |
| Max Input Level |
Mic/Line Inputs:
-4 dBV |
| Max Output Level |
Line Outputs:
+2 dBV |
| Headphone Output Power |
20 mW per Channel into 32 Ohms
|
| Impedance |
Mic/Line Inputs:
≥18 Kilohms (Plug-In Power Off) ≥2 Kilohms (Plug-In Power On) Line Outputs: 12 Ohms |
| SNR |
Line Inputs:
≥92 dB |
| THD |
≤0.05%
|
| Microphone Max SPL |
125 dB SPL
|
| Power Options |
Battery, USB Bus Power, AC/DC Power Adapter
|
| Battery Type |
2 x AA (Included)
|
| Approximate Battery Life |
WAV 44.1 kHz/16-Bit:
17.5 Hours (Alkaline, 2 Channels, without Headphones) 16.5 Hours (Alkaline, 2 Channels, with Headphones) 14.5 Hours (NiMH, 2 Channels, without Headphones) 14 Hours (NiMH, 2 Channels, with Headphones) WAV 96 kHz/24-Bit: 15.5 Hours (Alkaline, 2 Channels, without Headphones) 14 Hours (Alkaline, 2 Channels, with Headphones) 12.5 Hours (NiMH, 2 Channels, without Headphones) 13 Hours (NiMH, 2 Channels, with Headphones) MP3 128 kb/s: 16.5 Hours (Alkaline, 2 Channels, Playback, with Headphones) 13 Hours (NiMH, 2 Channels, without Headphones) 13.5 Hours (NiMH, 2 Channels, with Headphones) MP3 320 kb/s: 11 Hours (Alkaline, 2 Channels, without Headphones) 15.5 Hours (Alkaline, 2 Channels, without Headphones) 10 Hours (NiMH, 2 Channels, without Headphones) 13.5 Hours (NiMH, 2 Channels, with Headphones) |
| AC/DC Power Adapter |
VDC Not Included
|
| Mounting Options |
1/4"-20 Female
|
| Operating Temperature |
32 to 72°F / 0 to 40°C
|
| Dimensions |
2.4 x 5.6 x 1" / 6.1 x 14.1 x 2.6 cm
|
| Weight |
4.2 oz / 119 g (without Batteries)
5.8 oz / 165 g (with Batteries) |
