TASCAM DR-10X PORTABLE STEREO RECORDER FOR ENG MICROPHONES • CAPTIVE XLR PLUG MOUNTS ON ENG MICROPHONE
SKU
TAS-DR-10X
MFR#
DR-10X
was
$199.00
Special Price
$129.00
Availability:
Out of stock

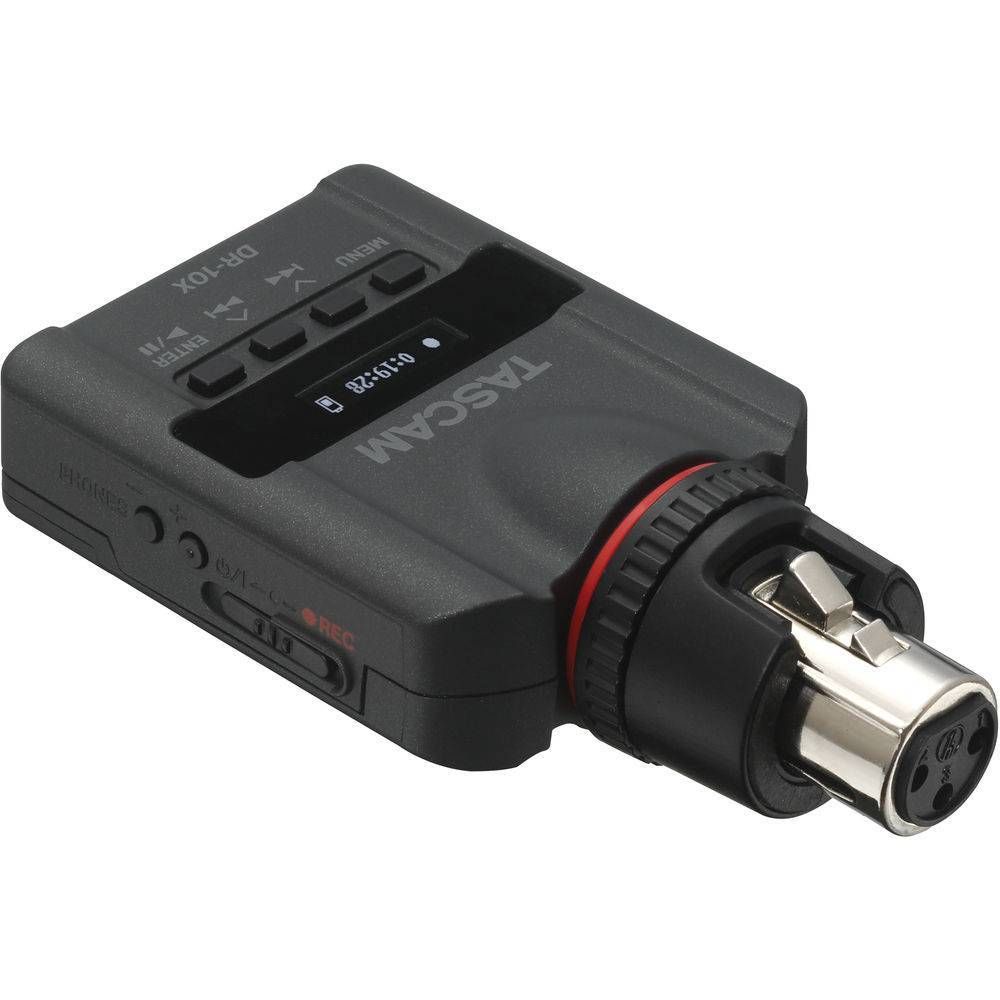

TASCAM DR-10X PORTABLE STEREO RECORDER FOR ENG MICROPHONES • CAPTIVE XLR PLUG MOUNTS ON ENG MICROPHONE
With the TASCAM DR-10X Micro Plug-On Audio Recorder attached directly to your preferred microphone, you can record full-resolution dialog and speech while skipping the trouble of long cable runs and avoiding the confusion of configuring a wireless microphone system. Whether you use a handheld dynamic mic or a battery-powered condenser (both available separately), the lightweight DR-10X can be discreetly affixed to the mic without weighing it down. Thanks to its small, low-profile design, the DR-10X is ideal for news gathering, interviews, weddings, and vlogs where the audio equipment needs to stay out of sight.
Key Features
- News Gathering, Interviews, Weddings
- For Handheld Dynamic Microphones
- For Battery-Powered Condenser Mics
- Limiter & Auto-Level Prevent Distortion
- Records Broadcast WAV with Safety Track
- XLR Input without Phantom Power
- Volume Adjustable 3.5mm Headphone Output
- Up to 10 Hours via Single AAA Battery
- Supports microSDHC Cards up to 32GB
- Attaches to XLR-Equipped Microphones
Specs
| Number of Tracks |
1
|
| Maximum Sampling Rate |
48 kHz / 24-Bit
|
| Microphone |
None
|
| Built-In Speaker |
No
|
| Display |
OLED
|
| Memory Card Support |
microSD (64 MB to 2 GB)
microSDHC (4 to 32 GB) |
| Internal Storage |
None
|
| Audio File Formats |
BWF, MP3, WAV
|
| Sample Rates |
WAV:
44.1 / 48 kHz |
| Bit Depth |
16 / 24-Bit
|
| Bit Rates |
128 to 192 kb/s (Record)
32 to 320 kb/s (Playback) |
| Signal Processing & FX |
Auto Gain, Limiter, Low-Cut Filter
|
| Timecode Support |
No
|
| Recording Time |
WAV 48 kHz/24-Bit:
2 Hrs 4 Mins per GB (Mono) |
| Analog I/O |
1 x XLR 3-Pin Female Balanced Mic Input (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output |
| Digital I/O |
None
|
| Phantom Power |
None
|
| Plug-In Power |
No
|
| System Connection |
1 x Micro-USB (2.0)
|
| Frequency Response |
20 Hz to 22 kHz +1/-2 dB
|
| Gain/Trim Range |
+29 dB to +45 dB
|
| Max Input Level |
Mic Inputs:
-31 dBu |
| Impedance |
Mic Inputs:
≥10 Kilohms |
| SNR |
Mic Inputs:
≥80 dB |
| Power Options |
Batteries or USB Bus Power
|
| Battery Type |
1 x AAA (Not Included)
|
| Approximate Battery Life |
WAV 48 kHz/24-Bit:
10 Hours (Alkaline, Mono, without Headphones) 8 Hours (NiMH, Mono, without Headphones) 15.5 Hours (Lithium, Mono, without Headphones) |
| Operating Temperature |
32 to 72°F / 0 to 40°C
|
| Dimensions |
2 x 3.7 x 1.1" / 52 x 94.4 x 28 mm
|
| Weight |
2.4 oz / 68.3 g (with Batteries)
2 oz / 56.3 g (without Batteries) |
