TASCAM DR-70D PORTABLE RECORDER FOR DSLR
SKU
TAS-DR-70D
MFR#
DR-70D
was
$419.00
Special Price
$249.00
Availability:
Out of stock

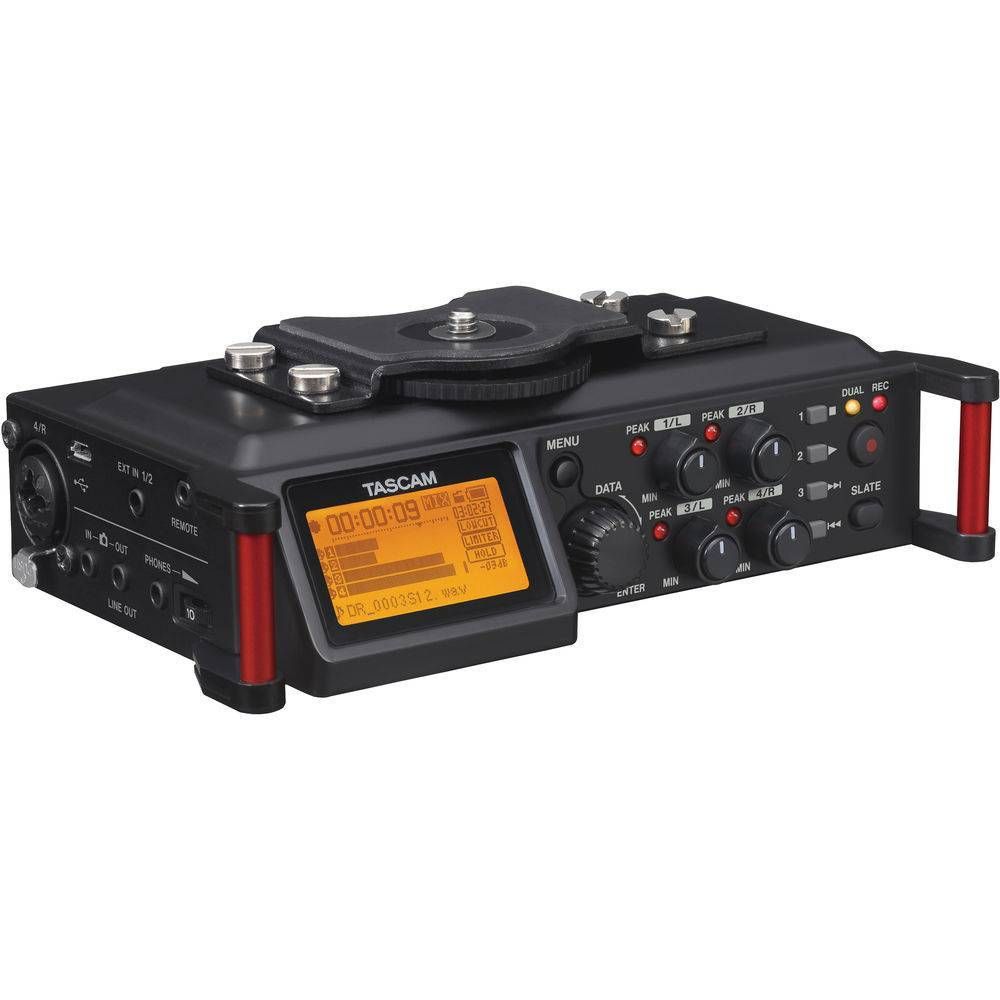

TASCAM DR-70D PORTABLE RECORDER FOR DSLR
For filmmaking, television, and web broadcast applications where you want to record direct sound and ambience, the TASCAM DR-70D multi-track field recorder is an ideal companion for your DSLR. Capture up to four tracks of high-resolution audio from external sources and the onboard omnidirectional microphones, route audio to and from your camera, and conveniently monitor through headphones. With strap-friendly handles, a tripod mounting socket, and a camera-mount screw attachment, the DR-70D is compatible with a variety of setups and working styles.
Key Features
- Filmmaking, TV & Web Broadcast
- Optimized for DSLR Shooters
- Dual Onboard Omnidirectional Microphones
- 4 x XLR-1/4" Inputs with Phantom Power
- 3.5mm Mic/Line Input with Plug-In Power
- Records in WAV up to 96 kHz
- 3.5mm Camera/Line & Headphone Outputs
- Supports Battery, AC, or USB Powering
- Supports SDXC Cards up to 128GB
- Limiter, Low-Cut Filter & Polarity
Specs
| Number of Tracks |
4
|
| Maximum Sampling Rate |
96 kHz / 24-Bit
|
| Microphone |
Built-In Omnidirectional Electret Condenser Stereo Pair, A/B Configuration
|
| Built-In Speaker |
No
|
| Display |
Monochrome LCD (Backlit)
|
| Memory Card Support |
SD (64 MB to 2 GB)
SDHC (4 GB to 32 GB) SDXC (48 GB to 128 GB) |
| Internal Storage |
None
|
| Audio File Formats |
BWF, WAV
|
| Sample Rates |
WAV:
44.1 / 48 / 96 kHz |
| Bit Depth |
16 / 24-Bit
|
| Signal Processing & FX |
Delay, Limiter, Low-Cut Filter
|
| Timecode Support |
No
|
| Recording Time |
WAV 44.1 kHz/16-Bit:
1 Hr 41 Mins per GB (Stereo) WAV 48 kHz/16-Bit: 1 Hr 33 Mins per GB (Stereo) WAV 96 kHz/16-Bit: 46 Mins per GB (Stereo) WAV 44.1 kHz/24-Bit: 1 Hr 7 Mins per GB (Stereo) WAV 48 kHz/24-Bit: 1 Hr 2 Mins per GB (Stereo) WAV 96 kHz/24-Bit: 31 Mins per GB (Stereo) |
| Analog I/O |
4 x Combo XLR-1/4" TRS Female Balanced Line/Mic Input (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Mic Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Camera Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Camera/Line Output 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output 1 x 2.5 mm TRS Female Remote Input |
| Digital I/O |
None
|
| Phantom Power |
+24 / 48 V ± 4 V (Selectable on Individual Inputs)
|
| Phantom Power Current |
10 mA per Channel
|
| Plug-In Power |
Yes
|
| System Connection |
1 x Micro-USB (2.0)
|
| Frequency Response |
Line Outputs, Mic/Line Inputs:
20 Hz to 20 kHz +0.5/-2 dB (at 48 kHz, JEITA) 20 Hz to 40 kHz +0.5/-3 dB (at 96 kHz, JEITA) |
| Gain/Trim Range |
Balanced Inputs:
+21 dB to +63 dB Unbalanced Inputs: +3 dB to +38 dB |
| Max Input Level |
Mic Inputs:
0 dBu Line Inputs: +20 dBu 1/8" Inputs: +10 dBV Camera Inputs: +6 dBV |
| Max Output Level |
Camera Outputs:
-24 dBV Line Outputs: +6 dBV |
| Headphone Output Power |
20 mW per Channel
|
| Impedance |
Mic Inputs:
2 Kilohms Line Inputs: ≥10 Kilohms 1/8" / 3.5 mm Inputs: 10 Kilohms Camera Outputs: 200 Ohms Line Outputs: 200 Ohms |
| SNR |
≥92 dB
|
| THD |
≤0.02%
|
| EIN |
-120 dBu
|
| Power Options |
Batteries, USB Bus Power, AC/DC Power Adapter
|
| Battery Type |
4 x AA (Not Included)
|
| Approximate Battery Life |
WAV 44.1 kHz/16-Bit:
6 Hours (AA Alkaline, 2 Channels, Phantom Off, Recording) 3.5 Hours (AA Alkaline, 2 Channels, Phantom On, Recording) 11 Hours (AA Alkaline, Recording, Built-In Mic) 6.25 Hours (AA NiMH, 2 Channels, Phantom Off, Recording) 3.25 Hours (AA NiMH, 2 Channels, Phantom On, Recording) 10.5 Hours (Alkaline, Recording, Built-In Mic) |
| AC/DC Power Adapter |
5 VDC at 1 A (Not Included)
|
| Mounting Options |
1/4"-20 Female, Shoe Mount
|
| Operating Temperature |
32 to 140°F / 0 to 40°C
|
| Dimensions |
6.7 x 2.2 x 4.2" / 169 x 55.2 x 106.5 mm
|
| Weight |
1.2 lb / 530 g (without Batteries)
1.4 lb / 625 g (with Batteries) |
