TASCAM ML-4D/OUT-X LINE OUTPUT DANTE CONVERTER W/ DSP XLR
SKU
TAS-ML-4D-OUT-X
was
$799.00
Special Price
$599.00
Availability:
In stock

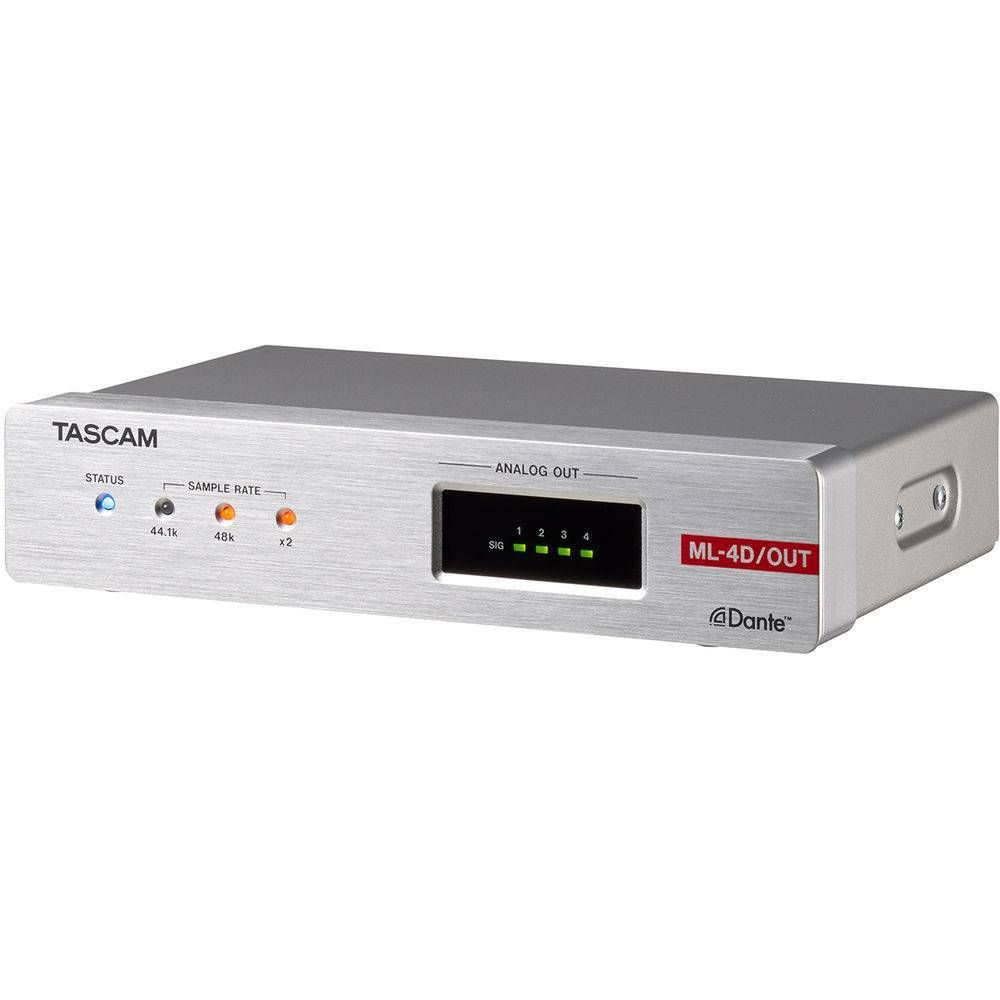

TASCAM ML-4D/OUT-X LINE OUTPUT DANTE CONVERTER W/ DSP XLR
The ML-4D/OUT-X 4-Channel Line-Output Dante Converter with Built-In DSP Mixer from TASCAM is a compact half-rack converter that can be used to convert 4-channel Dante input/output signals into 4-channel analog output signals on 3-pin XLR connectors for pro-audio applications.
The ML-4D/OUT-X features level control and is compatible with Dante Domain Manager software, which offers security functions, enables the use of wide-area networks, and provides easy access to Dante systems using already established network infrastructures. With AES67 mode, connection to AES67 network systems is also possible. Two installation brackets are included.
Key Features
- For PA, SR, and Pro Audio Applications
- 4 Analog 3-Pin XLR Line Outputs
- 4 Dante Inputs/Outputs
- Flexible Routing
- PoE (Power over Ethernet) Power Supply
Specs
| Formats Supported |
44.1/48/88.2/96 kHz, 16/24-Bit, 4 Channels
|
| Connector |
RJ-45
|
| Transmission Protocol |
Dante
|
| Gigabit Ethernet |
1000 BASE-T (IEEE 802.3ab)
|
| Cable |
Category 5e or Faster STP Cables
|
| Connector |
3-Pin XLR (1: Gnd, 2: Hot, 3: Cold)
|
| Nominal Output Levels |
+4 dBu (when Ref. Level Not −9 dBFS)
+6 dBu (when Ref. Level Set to −9 dBFS) |
| Maximum Output Level |
Switchable:
+15 dBu (Ref. Level: −9 dBFS) +18 dBu (Ref. Level: −14 dBFS) +20 dBu (Ref. Level: −16 dBFS) +22 dBu (Ref. Level: −18 dBFS) +24 dBu (Ref. Level: −20 dBFS) |
| Output Impedance |
200 Ohms or Lower
|
| Frequency Response |
Dante In / Line Out:
±0.5 dB: 20 Hz to 20 kHz (44.1/48 kHz Sampling Frequency, JEITA) ±0.5 dB: 20 Hz to 40 kHz (88.2/96 kHz Sampling Frequency, JEITA) |
| Distortion |
0.002 % (when −1 dBFS Input, 44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
|
| Signal to Noise Ratio |
105 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
|
| Crosstalk |
100 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
|
| Dynamic Range |
108 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
|
| Power |
PoE Class 0
TASCAM PS-P1220E AC Adapter (Sold Separately) |
| Power Consumption |
4 W
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Dimensions |
8.4 x 1.8 x 5.4" / 21.4 x 4.4 x 13.6 cm
|
| Weight |
30.4 oz / 863 g
|
