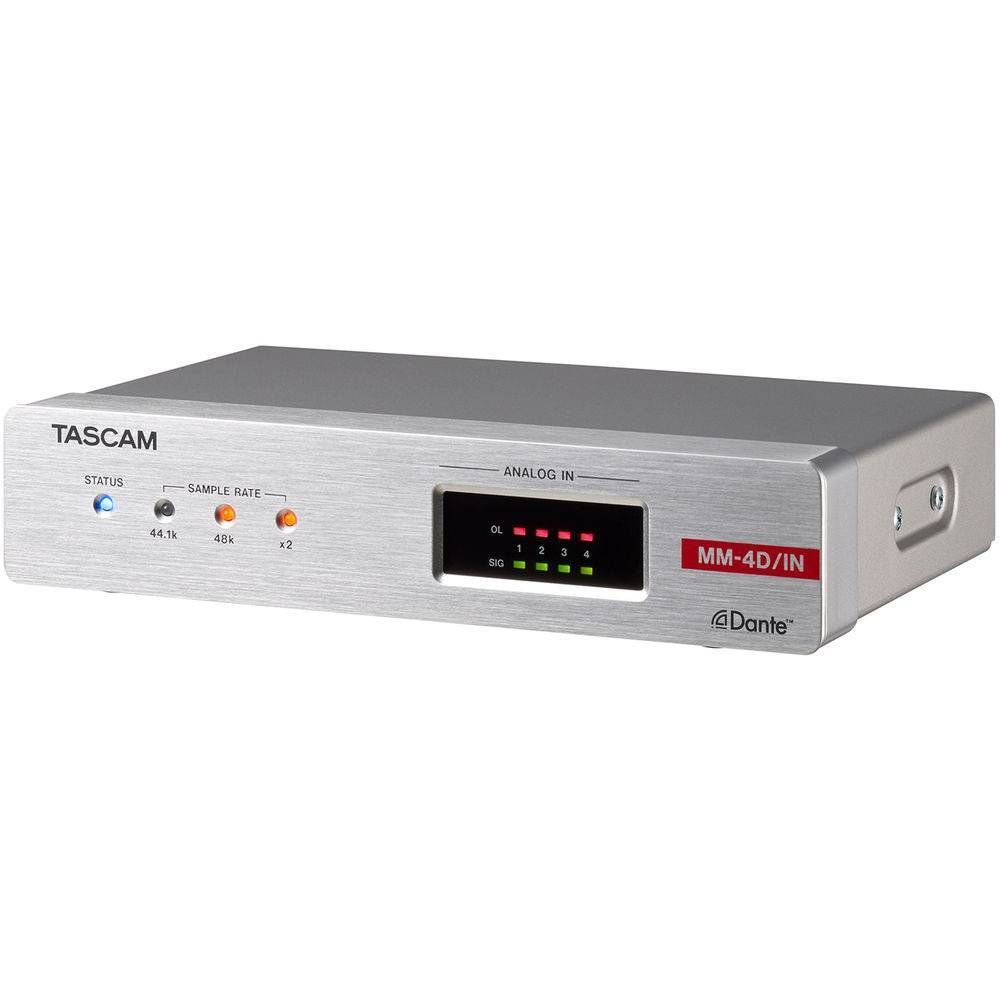

TASCAM MM-4D/IN-E 4-CHANNEL MIC/LINE INPUT DANTE CONVERTER WITH DSP EUROBLOCK
The MM-4D/IN-E 4-Channel Mic/Line Input Dante Converter with Built-In DSP Mixer from TASCAM can be used to convert 4-channel mic/line input signals on Euroblock connectors into 4-channel Dante input/output signals for pro-audio applications.
The MM-4D/IN-E Input/Output Dante Converter features level control and is compatible with Dante Domain Manager software, which offers security functions, enables the use of wide area networks, and provides easy access to Dante systems using already established network infrastructures. With AES67 mode, connection to AES67 network systems is also possible. Two installation brackets are included.
Key Features
- For PA, SR, and Pro Audio Environments
- 4 Analog Mic/Line Inputs
- 4 Dante Inputs/Outputs
- Flexible Routing
- PoE (Power over Ethernet) Power Supply
Specs
| Formats Supported |
44.1/48/88.2/96 kHz, 16/24-Bit, 4 Channels
|
| Connector |
RJ-45
|
| Transmission Protocol |
Dante
|
| Gigabit Ethernet |
1000 BASE-T (IEEE 802.3ab)
|
| Cable |
Category 5e or Faster STP Cables
|
| Connector |
Euroblock (Balanced) 3.81 mm Pitch
|
| Minimum Input Level |
-70 dBu
|
| Maximum Input Level |
+26 dBu
|
| Input Impedance |
2.0 kOhms or Higher
|
| External Control Interface |
Euroblock (Balanced) 3.81 mm Pitch
|
| LED Configuration |
Output Format: Open Collector (10 Ohms Output Impedance, 48 V Withstand Voltage, 35 mA Maximum Current)
Low level Maximum Output Voltage: 0.5 V |
| Switch Connectors |
Maximum Input Voltage: 5.5 V
High Level Minimum Input Voltage: 2.31 V Low Level Maximum Input Voltage: 0.99 V |
| Frequency Response |
Dante In / Line Out:
±0.5 dB: 20 Hz - 20 kHz (44.1/48 kHz Sampling Frequency, JEITA) ±0.5 dB: 20 Hz - 40 kHz (88.2/96 kHz Sampling Frequency, JEITA) |
| Distortion |
0.003 % (when −1 dBFS Input, 44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
|
| Signal to Noise Ratio |
108 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
|
| Crosstalk |
100 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
|
| Dynamic Range |
108 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
|
| Power |
PoE Class 0
TASCAM PS-P1220E AC Adapter (Sold Separately) |
| Power Consumption |
7.5 W
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Dimensions |
8.4 x 1.7 x 5.4" / 21.4 x 4.4 x 13.6 cm
|
| Weight |
31.2 oz / 885.0 g
|
