TASCAM MODEL 12 MIXER PRODUCTION SUITE MIXER/RECORDER/USB INTERFACE
SKU
TAS-MODEL-12
MFR#
MODEL-12
was
$899.00
Special Price
$599.00
Availability:
Out of stock

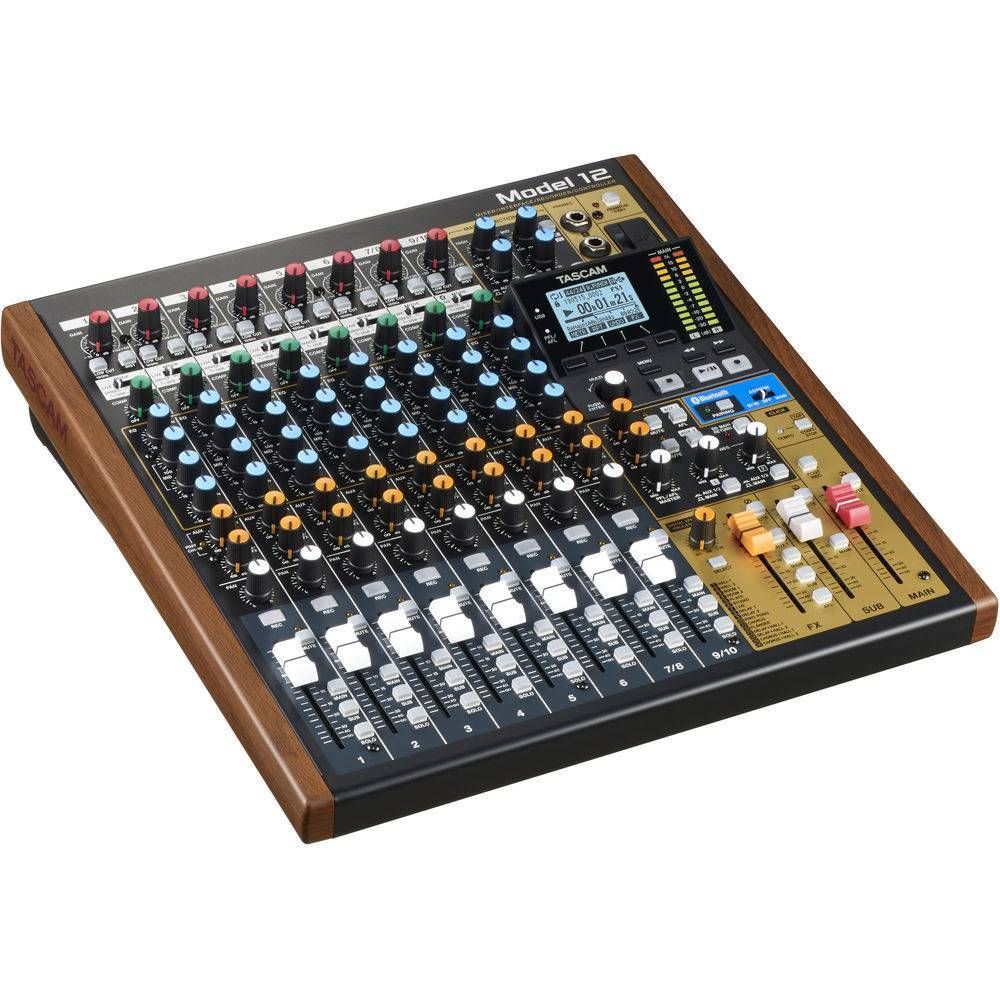

TASCAM MODEL 12 MIXER PRODUCTION SUITE MIXER/RECORDER/USB INTERFACE
Building upon the success of the Model 24 and Model 16, the highly flexible TASCAM Model 12 is an all-in-one production mixer for music and multimedia creators, songwriters, and performers. This powerful, versatile hybrid mixer/recorder/audio interface is designed for both live and recording applications and is well suited for bands, studios, conferences, podcasts, houses of worship, and more.
Key Features
- MIDI I/O, Metronome, and Click Output
- 10 x Input Channels (8 Mic Preamps)
- 10 x Line Inputs (6 Mono + 2 Stereo)
- Single-Knob Compressor
- 2 x Aux Sends + Built-In Multi-FX
- Mix-Minus for Echo-Free Podcasts/Radio
- 12-Track Recorder and Playback
- External DAW Control - HUI/MCU Protocols
- USB Audio Interface (12-In x 10-Out)
- Wireless Bluetooth Connectivity
Specs
| Form Factor |
Desktop
|
| Number of Tracks |
12 (10 Inputs + Stereo Mix)
|
| Maximum Simultaneous Tracks |
10 x Recording
|
| Maximum Sampling Rate |
48 kHz / 24-Bit
|
| Gain/Trim Range |
-10 dB to +40 dB (Channels 1 to 6)
-20 dB to +30 dB (Channels 7 to 10) Mic Inputs: Up to 50 dB Mic Inputs: Up to 79 dB USB, SD: 24 dB |
| High-Pass Filter |
100 Hz, 12 dB/Octave
|
| EQ Parameters |
Mono Channels:
High: ±15 dB at 10 kHz (Shelving) Mid: ±15 dB at 100 Hz, 0.5 Q (Semi-Parametric) Low: ±15 dB at 80 Hz (Shelving) Stereo Channels: High: ±15 dB at 10 kHz (Shelving) Mid: ±15 dB at 600 Hz, 0.5 Q (Notch/Peak) Low: ±15 dB at 80 Hz (Shelving) Master: High: ±15 dB at 10 kHz (Shelving) Mid: ±15 dB at 100 Hz to 8 kHz, 0.5 to 5 Q (Parametric) Low: ±15 dB at 60 Hz (Shelving) |
| Built-In Effects |
7 x Reverb
2 x Mono Delay 1 x Stereo Delay Chorus Flanger 2 x Delay+Reverb 2 x Chorus+Reverb |
| Analog Audio I/O |
8 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
1 x 1/8" / 3.5 mm TRRS Unbalanced Stereo Input 2 x 1/4" TRS Headphone Output 2 x 1/4" TRS Subgroup/Bus Output 2 x 1/4" TRS Aux Output 1 x 1/4" TRS Click Input 2 x 1/4" TRS Unbalanced Insert In/Out 2 x XLR 3-Pin Balanced Main Output 1 x 1/4" TRS Click Input |
| Phantom Power |
48 V
|
| Host Connection |
1 x USB-C (Class-Compliant)
|
| Host Connection Protocol |
USB 2.0
|
| MIDI I/O |
1 x DIN 5-Pin Input
1 x DIN 5-Pin Output |
| Other I/O |
1 x 1/4" TRS Footswitch Input
|
| Wireless |
Bluetooth
|
| Wireless Connectivity |
Bluetooth
|
| Frequency Response |
20 Hz to 20 kHz ±0.5 dB
|
| Maximum Input Level |
1/8" / 3.5 mm Inputs:
+8 dBV (Stereo) Hi-Z Inputs: +19.8 dBu Insert Return: +18 dBu Line Inputs: +22 dBu Mic Inputs: +10 dBu |
| Maximum Output Level |
Aux/Click/Subgroup Outputs:
+16 dBu XLR Main Outputs: +22 dBu |
| Headphone Output Power |
45 mW per Channel into 32 Ohms
|
| Impedance |
1/8" / 3.5 mm Inputs:
10 Kilohms Hi-Z Inputs: 1 Megohm Insert Return: 5 Kilohms Insert Send: 100 Ohms Line Inputs: 22 Kilohms (Balanced) Mic Inputs: 1.8 Kilohms Aux/Click/Subgroup Outputs: 200 Ohms XLR Main Outputs: 200 Ohms |
| SNR |
-103 dBu
|
| THD |
0.004% (Min Gain, +2 dBu Input, 1 kHz)
|
| Crosstalk |
-95 dB (1 kHz)
|
| EIN |
-128 dBu (150-Ohm Source, Max Gain)
|
| Audio File Formats |
Recording:
BWF, WAV Playback: BWF, WAV |
| Sample Rates |
44.1 / 48 kHz
|
| Bit Depths |
16 / 24-Bit
|
| Supported Media |
SD Card
|
| Memory Card Slot |
1 x SDXC
|
| Supported Media Capacity |
SD:
512 MB Minimum to 2 GB Maximum SDHC: 4 GB Minimum to 32 GB Maximum SDXC: 64 GB Minimum to 512 GB Maximum |
| File System Support |
SD: FAT16
SDHC: FAT32 SDXC: exFAT |
| OS Compatibility |
macOS 10.12
macOS 10.13 macOS 10.14 macOS 10.15 Windows 7 Windows 8.1 Windows 10 *As of November, 2021: Check with manufacturer for the most up-to-date compatibility |
| Supported Drivers/API & Plug-Ins |
Core Audio (Mac)
Windows Class-Compliant (No Driver Needed) ASIO 2.0 WDM MME |
| Processor Requirement |
2 GHz or Better
|
| RAM Requirements |
2 GB
|
| Minimum Display Resolution |
1280 x 800
|
| Power Requirements |
AC/DC Power Adapter (Included)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
16 W
|
| Operating Temperature |
41 to 95°F / 5 to 35°C
|
| Dimensions |
13.5 x 14.2 x 3.96" / 343 x 360 x 98.5 mm (Including Controls and Protrusions)
|
| Weight |
9.5 lb / 4.3 kg
|
