TASCAM MODEL 24 MIXER/INTERFACE/RECORDER
SKU
TAS-MODEL-24
MFR#
MODEL-24
was
$1,499.00
Special Price
$1,199.00
Availability:
Out of stock

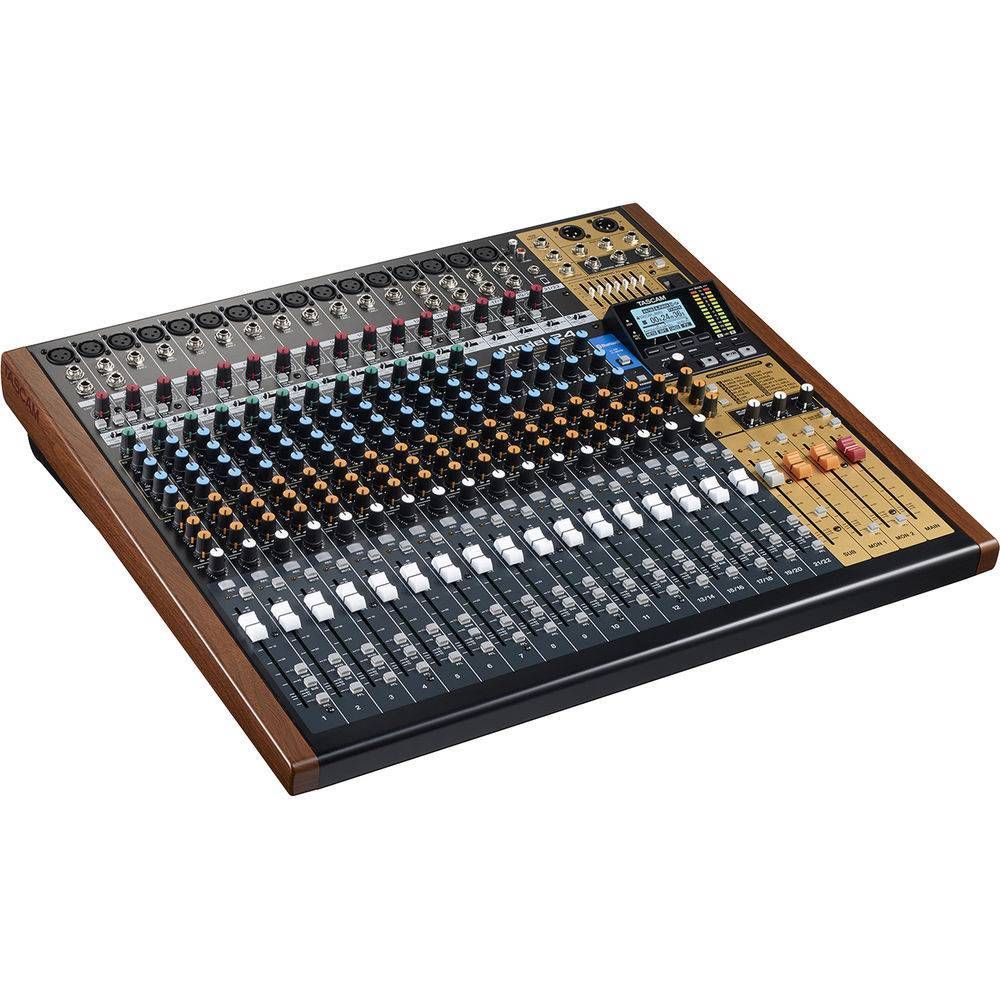

TASCAM MODEL 24 MIXER/INTERFACE/RECORDER
The highly flexible TASCAM Model 24 is a powerful, versatile, hybrid mixer/recorder/audio interface for both live and recording applications, well suited for bands, studios, conferences, podcasts, houses of worship, and more. The full-featured professional mixer offers 22 input channels including 16 microphone preamps with phantom power, two 1/4" Hi-Z jacks, 12 balanced 1/4" mono line inputs, and four balanced 1/4" stereo line inputs. Additionally, the last stereo input also accepts signals from a variety of sources including Bluetooth, USB, RCA, or a 3.5mm stereo mini jack.
Key Features
- 22 x Input Channels
- 16 x Microphone Preamps
- 20 x Line Inputs (12 Mono + 4 Stereo)
- Single-Knob Compressor
- 7-Band GEQ for Main or Monitor Outputs
- 3 x Aux Sends + Built-In Multi-FX
- 24-Track Recorder and Playback
- USB 2.0 Audio Interface (24-In x 22-Out)
- Wireless Bluetooth Connectivity
Specs
| Form Factor |
Desktop
|
| Number of Tracks |
24 (22 Inputs + Stereo Mix)
|
| Maximum Simultaneous Tracks |
22 x Recording
|
| Maximum Sampling Rate |
48 kHz / 24-Bit
|
| Gain/Trim Range |
-10 dB to +40 dB (Channels 1 to 12)
-20 dB to +30 dB (Channels 13 to 20) Mic Inputs: Up to 50 dB |
| High-Pass Filter |
100 Hz, 18 dB/Octave
|
| EQ Parameters |
Mono Channels:
High: ±15 dB at 12 kHz (Shelving) Mid: ±15 dB at 100 Hz to 8 kHz, 0.55 Q (Semi-Parametric) Low: ±15 dB at 80 Hz (Shelving) Stereo Channels: High: ±15 dB at 12 kHz (Shelving) Mid: ±15 dB at 600 Hz, 0.55 Q (Notch/Peak) Low: ±15 dB at 80 Hz (Shelving) Graphic EQ: ±15 dB at 8 kHz ±15 dB at 4 kHz ±15 dB at 2 kHz ±15 dB at 1 kHz ±15 dB at 500 Hz ±15 dB at 250 Hz ±15 dB at 125 Hz |
| Built-In Effects |
7 x Reverb
2 x Mono Delay 1 x Stereo Delay Chorus Flanger 2 x Delay+Reverb 2 x Chorus+Reverb |
| Analog Audio I/O |
20 x 1/4" TRS Balanced Line Input
16 x XLR 3-Pin Balanced Mic Input 1 x 1/8" / 3.5 mm TRS Unbalanced Stereo Input 1 x Stereo RCA Coaxial Unbalanced Input 1 x 1/4" TRS Headphone Output 2 x 1/4" TRS Subgroup/Bus Output 2 x 1/4" TRS Monitor Output 1 x 1/4" TRS FX Output 2 x 1/4" TRS Control Room Output 2 x 1/4" TRS Unbalanced Insert In/Out 2 x XLR 3-Pin Balanced Output |
| Phantom Power |
48 V
|
| Host Connection |
1 x USB-B (Class-Compliant)
|
| Host Connection Protocol |
USB 2.0
|
| Other I/O |
1 x 1/4" TS Remote Input
|
| Wireless |
Bluetooth
|
| Wireless Connectivity |
Bluetooth
|
| Maximum Input Level |
1/8" / 3.5 mm Inputs:
+8 dBV (Unbalanced, Stereo) Insert Return: +18 dBu Line Inputs: +22 dBu Mic Inputs: +10 dBu RCA Inputs: +8 dBV (Unbalanced) |
| Maximum Output Level |
Monitor/FX/Subgroup/Control Room Outputs:
+16 dBu XLR Main Outputs: +22 dBu |
| Headphone Output Power |
80 mW per Channel into 32 Ohms
|
| Impedance |
1/8" / 3.5 mm Inputs:
10 Kilohms Insert Return: 10 Kilohms Insert Send: 100 Ohms Line Inputs: 22 Kilohms (Balanced) Mic Inputs: 1.8 Kilohms RCA Inputs: 10 Kilohms Control Room/FX/Monitor/Subgroup Outputs: 100 Ohms XLR Main Outputs: 100 Ohms |
| Audio File Formats |
Recording:
BWF, WAV Playback: BWF, WAV |
| Sample Rates |
44.1 / 48 kHz
|
| Bit Depths |
16 / 24-Bit
|
| Supported Media |
USB Hard Disk Drive
|
| Memory Card Slot |
1 x SDXC
|
| Supported Media Capacity |
SD:
512 MB Minimum to 2 GB Maximum SDHC: 4 GB Minimum to 32 GB Maximum SDXC: 64 GB Minimum to 512 GB Maximum |
| File System Support |
SD: FAT16
SDHC: FAT32 SDXC: exFAT |
| OS Compatibility |
macOS 10.11
macOS 10.12 macOS 10.13 Windows 7 Windows 8.1 Windows 10 *As of November, 2021: Check with manufacturer for the most up-to-date compatibility |
| Power Requirements |
AC Input
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
52 W
|
| Operating Temperature |
41 to 95°F / 5 to 35°C
|
| Dimensions |
22.7 x 20.2 x 4.4" / 575.8 x 513.1 x 112.5 mm (with Side Panel)
20.3 x 19.8 x 4.4" / 514.6 x 502.9 x 112.5 mm (without Side Panel) |
| Weight |
22.0 lb / 10.0 kg
|
