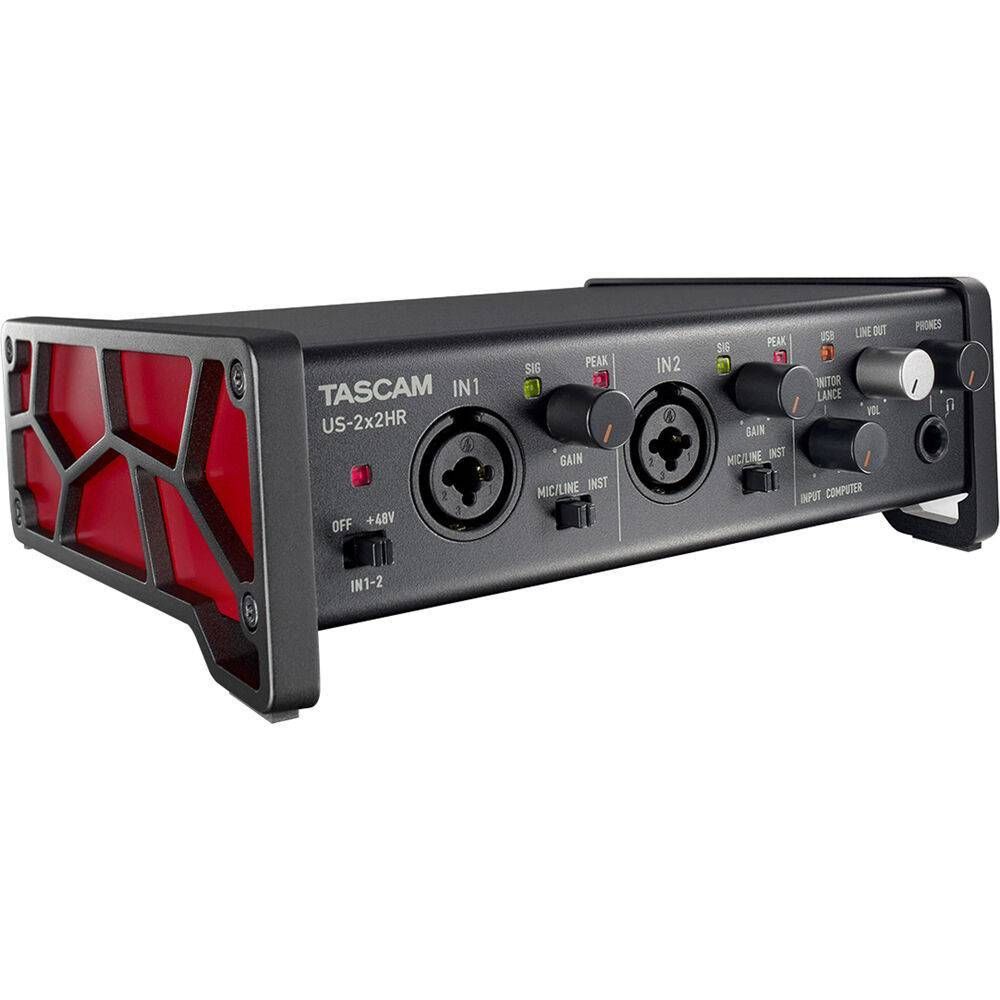

Record or livestream songs, podcasts, and commentary in high resolution to your Mac/Windows computer or iOS mobile device with the TASCAM US-2x2HR, a desktop 2x2 USB-C audio/MIDI interface designed to deliver comfortable, user-friendly operation, clean audio quality, and simultaneous input of two mics or instruments for home recordists and traveling content creators. The inclusion of MIDI ports gives producers an easy way to integrate MIDI gear into their music production setups.
Specs
Display |
None
|
Channels of I/O |
Analog:
2 Inputs / 2 Outputs |
Maximum Sampling Rate |
192 kHz / 24-Bit
|
Number of Microphone Preamps |
2 Preamps
|
Input Level Adjustment |
2 x Knob
|
Expansion Slots |
None
|
Pad |
None
|
Gain/Trim Range |
Mic/Line/Hi-Z Inputs:
56 dB |
High-Pass Filter |
None
|
Solo/Mute |
None
|
Analog Audio I/O |
2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel)
2 x 1/4" TRS Balanced Line Output 1 x 1/4" TRS Unbalanced Headphone Output (Front Panel) |
Phantom Power |
48 V, Selectable On/Off (Applied to All Inputs)
|
Digital Audio I/O |
None
|
Host Connection |
1 x USB-C
|
Host Connection Protocol |
USB 2.0
|
USB (Non-Host) |
None
|
Sync I/O |
None
|
Network I/O |
None
|
MIDI I/O |
1 x DIN 5-Pin Input
1 x DIN 5-Pin Output |
Frequency Response |
Mic, Line Inputs:
20 Hz to 20 kHz +0/-0.4 dB (at 44.1/48 kHz, JEITA) 20 Hz to 40 kHz +0/-0.4 dB (at 88.2/96 kHz, JEITA) Line Outputs: 20 Hz to 20 kHz +0.2/-0.1 dB (at 44.1/48 kHz, JEITA) 20 Hz to 40 kHz +0.2/-0.4 dB (at 88.2/96 kHz, JEITA) |
Maximum Input Level |
Mic Inputs:
+9 dBu Line Inputs: +20 dBu Hi-Z Inputs: +10 dBV |
Maximum Output Level |
Line Outputs:
+20 dBu |
Headphone Output Power |
18 mW per Channel into 32 Ohms (0.1% THD)
|
Impedance |
Mic Inputs:
2.2 Kilohms Line Inputs: 10 Kilohms Hi-Z Inputs: ≥ 1 Megohm Line Outputs: 210 Ohms |
SNR |
Mic Inputs:
110 dB (A-Weighted, Min Gain) Line Inputs: 108 dB (A-Weighted, Min Gain) Line Outputs: 110 dB (A-Weighted, Max Gain) |
THD+N |
Mic Inputs:
0.0013% (1 kHz, Min Gain) Line Inputs: 0.0011% (1 kHz, Min Gain) Line Outputs: 0.0012% (1 kHz) |
EIN |
-128 dBu
|
Sample Rates |
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
|
Sample Rate Conversion |
None
|
Bit Depths |
24-Bit
|
Sync Sources |
Internal
|
OS Compatibility |
macOS 10.13
macOS 11 or Later Windows 7 or Later iPadOS 13 or Later iOS 11 or Later *As of November, 2021: Check with manufacturer for the most up-to-date compatibility |
Included Software |
Cubase LE
|
Compatible Software (Not Included) |
Any Core Audio (Mac) Compliant Software
|
Included Plug-Ins |
Virtual Instruments:
SampleTank SE |
Supported Drivers/API & Plug-Ins |
Core Audio (Mac)
ASIO WDM |
Processor Requirement |
2 GHz or Better
|
RAM Requirements |
2 GB
|
Mobile Device Compatibility |
iPad
iPhone |
Required Hardware |
Available USB 2.0 Port
USB Cable (Included) |
Internet Connection |
Required for Registration, Software/Driver Download
|
Power Requirements |
AC/DC Power Adapter (Not Included) or USB Bus Power
|
AC/DC Power Adapter |
5 VDC, Center-Positive (Not Included)
|
Power Consumption |
1.75 W
|
