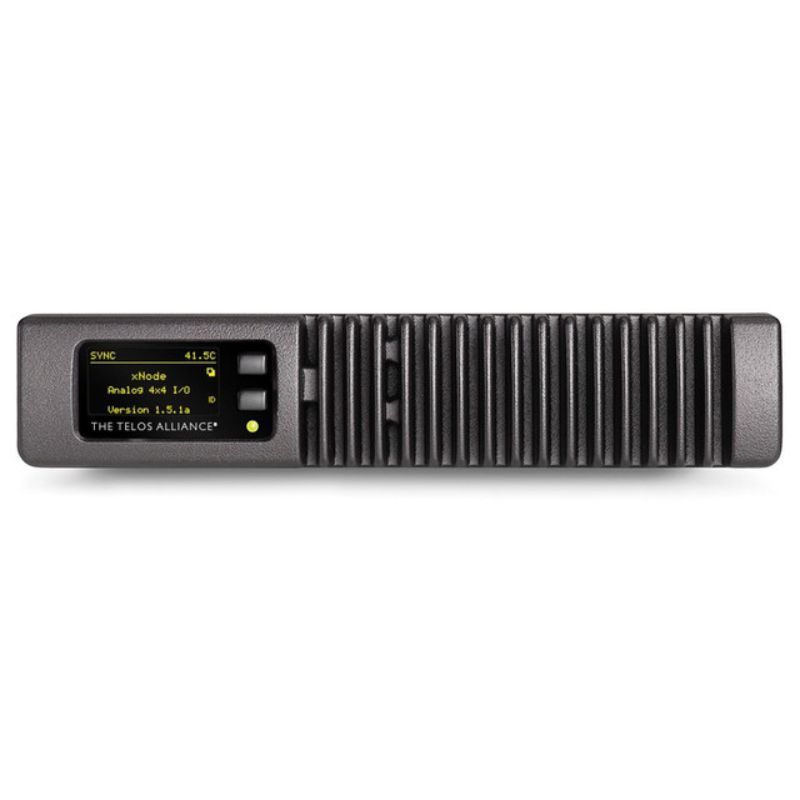

TELOS ANALOG-xNODE PN 2001-00298-000 AoIP INTERFACE PROVIDES 4 STEREO ( 8 MONO ) ANALOG INPUTS AND OUTPUTS FULLY AES67 COMPLIANT.
SKU
TEL-xNODE-ANALOG
MFR#
2001-00298-000-TEL
was
$2,195.00
Special Price
$1,875.00
Availability:
Out of stock
TELOS ANALOG-xNODE PN 2001-00298-000 AoIP INTERFACE PROVIDES 4 STEREO ( 8 MONO ) ANALOG INPUTS AND OUTPUTS FULLY AES67 COMPLIANT.
The xNode lightweight, half-rack, high-performance IP-Audio interface from Telos Alliance is loaded with advanced features and capabilities. One-button configuration takes a new xNode from out-of-the-box to on-the-air in under one minute. They’re fanless, which means they’re noiseless too. Versatile mounting options let you deploy two xNodes in just 1RU of rack space, or on ceilings, walls, and under counters with an available wall-mount kit. xNodes have studio-grade audio performance specs. Redundant power options (using AC mains and Power-over-Ethernet) and dual-redundant network interfaces are included, both with automatic switching. And xNodes are fully AES67-compliant, so they work with all AES67 audio gear—now, and in the future. In fact, they are the first and only AoIP I/O devices that are Livewire+™, RAVENNA, and AES67 compliant. Every xNode not only supports RAVENNA audio stream interoperability, but also enables advertising/discovery of those streams natively, above and beyond AES67.
The Analog xNode has 8 mono or 4 stereo balanced line-level inputs and 8 mono or 4 stereo balanced line-level outputs, on RJ-45 and DB-25 connectors. It can also accommodate 5.1 Surround inputs and outputs, each with an associated discrete Stereo mix. Each input is switchable to accommodate either consumer-level -10dBv or professional level +4dBu sources. The short-circuit protected outputs can deliver up to +24dBu before clipping. Axia uses only studio-grade A/D/A converters and low-noise components, so that each Analog node provides superior audio performance for high-end studio use.
Features:
- Fanless design with cast-aluminum heat-sinks is completely silent in-studio. Front-panel heat sinks are cooled by ambient air, not "rack air," eliminating overheating worries.
- World's only fully AES67-compliant AoIP interface; xNodes are "universal translators" that support a huge installed base of Livewire+ hardware as well as audio streams from other AES67-compliant devices.
- First and only AoIP I/O device that is Livewire+, RAVENNA, and AES67 compliant. Every xNode not only supports RAVENNA audio stream interoperability, but also enables advertising/discovery of those streams natively, above and beyond AES67.
- High-resolution front-panel multi-function OLED display meters inputs and outputs or GPIO status, gives software and other status information.
- Power-efficient: xNodes use just 14 Watts each.
- Exclusive redundant power plan uses AC and Power over Ethernet (IEEE 802.3af) supplied by compliant Ethernet switches. Multi-color front-panel LED glows green when AC mains power is used, red when PoE is used, and orange when both AC and PoE are connected.
- Exclusive redundant network connection: Dual NICs allow you to connect xNode to separate network branches for full audio pathway redundancy. Automatic failover activates backup connection should the primary be interrupted.
- Built-in Syslog server with configurable event filter and SNMP (Simple Network Management Protocol) support help you stay fully informed, should an xNode's power or connection status change.
- Synchronize your AES master clock to a designated xNode AES/EBU input to keep all of your AES streams synchronized to the house clock.
- xNodes use premium components, including rugged cast aluminum faceplates and heat sinks, high-resolution OLED displays, bulletproof power supplies designed for high-availability telecom applications, studio-quality SRCs with recording-studio specs.
- I/O connections via industry-standard RJ-45 audio connectors or high-density DB-25 connections, both available prefabricated and ready to attach in seconds.
- Versatile mounting options: Use freestanding, rack singly or side-by-side in 1 RU, or wall-mount using an optional surface-mount kit.
- Analog xNode inputs can be configured to supply four stereo audio channels, eight true mono channels, or 5.1 surround + stereo downmix. Outputs support the same variety of selections, easily selectable in software via the built-in web interface.
- On the Analog, AES/EBU, Mixed Signal, and Microphone xNodes, a fully configurable mixing matrix allows for mixing of both physical and network inputs, stream conversion, and a multitude of other unique solutions.
Specification:
| Analog Line Inputs | |
| Input Impedance | >40 k Ohms, balanced |
| Nominal Input Range | Selectable, +4 dBu or -10dBv |
| Input Headroom | 20 dB above nominal inputMeta |
| Analog Line Outputs | |
| Output Source Impedance | <50 Ohms balanced |
| Output Load Impedance | 600 Ohms, minimum |
| Nominal Output Level | +4 dBu |
| Maximum Output Level | +24 dBu |
| Digital Reference | Internal (network timebase) or external reference 48 kHz, +/- 2 ppm |
| Internal Sampling Rate | 48 kHz |
| Input Sample Rate | 32 kHz to 192 kHz |
| Output Sample Rate | 44.1 kHz or 48 kHz |
| A/D Conversions | 24-bit, Delta-Sigma, 256x oversampling |
| D/A Conversions | 24-bit, Delta-Sigma, 256x oversampling |
| Frequency Response | Any input to any output: +/- 0.5 dB, 20 Hz to 20 kHz |
| Latency | Analog Input to Analog Output, 2.75ms including network, converters, and mixing process Digital Input to Digital Output, 1.75ms including network mixing engine (ASRC off) |
| Dynamic Range | Analog Inputs to Analog Outputs 108dB referenced to 0dBFs, 111dB A-weighted Analog Inputs to Digital Outputs 110dB referenced to 0dBFs, 113dB A-weighted Digital Inputs to Analog Outputs 112dB referenced to 0dBFs, 115dB A-weighted Digital Inputs to Digital Outputs 126dB |
| Equivalent Input Noise | Microphone Preamp: -128 dBu, 150 Ohm source, reference -50 dBu input level |
| Total Harmonic Distortion + Noise | Mic Pre Input to Analog Output: < 0.005%, 1 kHz, -36dBu input, +18dBu output Analog Input to Analog Output: < 0.005%, 1 kHz, +18dBu input, +18dBu output Analog Input to Digital Output: < 0.004%, 1 kHz, +18dBu input, -6dBFs output Digital Input to Analog Output: < 0.004%, 1 kHz, -6dBFs input, +18dBu output Digital Input to Digital Output: < 0.0003%, 1 kHz, -20dBFs |
| Crosstalk Isolation, Stereo Separation And CMRR | Analog Line channel to channel isolation: 90dB minimum, 20Hz to 20kHz Analog Line stereo separation: 85dB minimum, 20Hz to 20kHz Analog Line Input CMRR: 80dB minimum, 20Hz to 20kHz Microphone Input CMRR: >60 dB, 20 Hz to 20 kHz |
| Power Supply AC Input | Auto-ranging supply, 95VAC to 240VAC, 50 Hz to 60 Hz, IEC receptacle, internal fuse Power consumption: 14 Watts |
| Operating Temperatures | 0 degree C to +40 degree C, <90% humidity, no condensation |
| Dimensions | 8.5” (22 cm) wide; two may be mounted side-by-side in a standard 1RU rack space 1.72” (4.4 cm) height, 11.75” (30 cm) depth |
