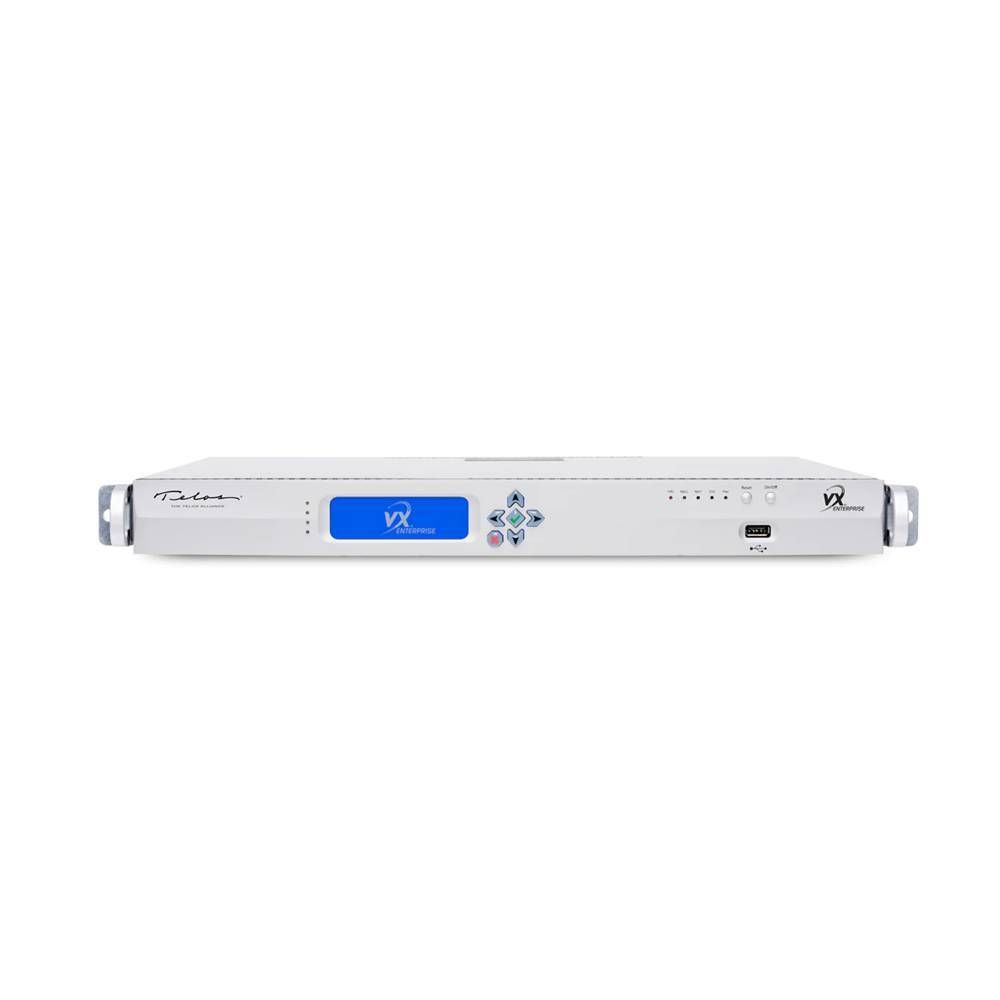

TELOS VX ENTERPRISE VOIP TALKSHOW SYSTEMS PN 2001-00425-000
Telos VX® is the world’s first VoIP (Voice over IP) talkshow system — a broadcast phone system that’s so powerful, it can run all the on-air phones for your entire plant. Telos VX Enterprise™, with built-in support for AES67, is the next evolution of Telos VX VoIP phone system in a powerful new 1RU hardware unit. Additionally, support for the G.722 voice codec ensures the highest quality calls from supported mobile devices. With capacity expandable up to 120 hybrids/faders, VX Enterprise is ideal for medium to large facilities and can grow with your station over time. (For smaller facilities, check out VX Prime+ with 8-hybrid capacity.)
AES67 support brings a new level of compatibility and flexibility to VX phone systems. Support for AES67 gives broadcasters the flexibility of integrating VX Enterprise into any AES67 environment. With plug-and-play connectivity, you can network multiple channels of audio with any manufacturer’s AES67-compliant hardware. Beyond AES67, Livewire users have the added convenience and power of networking control (GPIO), advertising/discovery, and program associated data throughout the network.
Using VoIP, VX Enterprise gives you remarkable-sounding on-air phone calls with no ‘gotchas’. VX Enterprise weds modern networking to the remarkable power of digital signal processing. VX Enterprise uses Ethernet as its connection backbone, significantly cutting the cost of phone system installation, maintenance, and cabling. It uses standard SIP protocol that works with many VoIP PBX systems and SIP Telco to take advantage of low-cost and high-reliability service offerings. VX Enterprise can also connect to traditional telco lines via Asterisk PBX systems, which can be customized for specific facility requirements.
Don’t have an IP-Audio network yet? Optional Telos Alliance xNodes, like the Telos Alliance Mixed Signal Node, break out audio into analog and digital formats, along with GPIO logic commands. And with informative VSet phones, talent finds it easier than ever to take control of their callers, moving and sharing lines between studios at the touch of a button.
Specifications:
General
• Telos 5th-generation Adaptive Digital Hybrids
• Maximum number of hybrids: 120, when used with a-Law or u-Law codecs for VoIP lines. (Higher-quality codecs, such as G.722, consume more system resources and result in a decreased number of total lines available.)
• Maximum number of SIP numbers: unlimited
• Maximum active on-air calls: 120 • Maximum on-air calls on one fader: 12
Analog Inputs (with Telos Alliance xNode)
• Input Impedance: >40 k Ohms, balanced
• Nominal Level Range: Selectable, +4 dBu or -10dBv
• Input Headroom: 20 dB above nominal input
Analog Outputs (with Telos Alliance xNode)
• Output Source Impedance: <50 Ohms balanced
• Output Load Impedance: 600 Ohms, minimum
• Nominal Output Level: +4 dBu
• Maximum Output Level: +24 dBu
Digital Audio Inputs and Outputs
• Reference Level: +4 dBu (-20 dB FSD)
• Impedance: 110 Ohm, balanced (XLR)
• Signal Format: AES-3 (AES/EBU)
• AES-3 Input Compliance: 24-bit with selectable sample rate conversion, 32 kHz to 96kHz input sample rate capable
• AES-3 Output Compliance: 24-bit Digital Reference: Internal (network timebase) or external reference 48 kHz, +/- 2 ppm
• Internal Sampling Rate: 48 kHz
• Output Sample Rate: 44.1 kHz or 48 kHz
• A/D Conversions: 24-bit, Delta-Sigma, 256x oversampling
• D/A Conversions: 24-bit, Delta-Sigma, 256x oversampling
• Latency <3 ms, mic in to monitor out, including network and processor loop
Frequency Response
• Any input to any output: +0.5 / -0.5 dB, 20 Hz to 20 kHz
Dynamic Range
• Analog Input to Analog Output: 102 dB referenced to 0 dBFS, 105 dB “A” weighted to 0 dBFS
• Analog Input to Digital Output: 105 dB referenced to 0 dBFS
• Digital Input to Analog Output: 103 dB referenced to 0 dBFS, 106 dB “A” weighted
• Digital Input to Digital Output: 138 dB
Total Harmonic Distortion + Noise
• Analog Input to Analog Output: <0.008%, 1 kHz, +18 dBu input, +18 dBu output
• Digital Input to Digital Output: <0.0003%, 1 kHz, -20 dBFS
• Digital Input to Analog Output: <0.005%, 1 kHz, -6 dBFS input, +18 dBu output
Crosstalk Isolation, Stereo Separation, and CMRR
• Analog Line channel to channel isolation: 90 dB isolation minimum, 20 Hz to 20 kHz
• Analog Line Stereo separation: 85 dB isolation minimum, 20 Hz to 20 kHz
• Analog Line Input CMRR: >60 dB, 20 Hz to 20 kHz
VX Enterprise IP/Ethernet Connections
• One 100/1000BASE-T Ethernet via RJ-45 LAN connection
• One 100/1000BASE-T Ethernet via RJ-45 WAN connection
Processing Functions
• All processing is performed at 32-bit floating-point resolution
• Send AGC/limiter
• Send filter
• Gated Receive AGC
• Receive filter
• Receive dynamic EQ
• Ducker
• Sample rate converter
• Line Echo Canceller (hybrid)
• Acoustic Echo Canceller
Power Supply AC Input
• Hot-swap capable dual-redundant internal auto-ranging power supplies. 90 – 132 / 187 – 264 VAC, 50Hz/60Hz. IEC receptacle, internal fuse.
• Power consumption: 150 Watts
Operating Temperatures
• -10 degree C to +40 degree C, <90% humidity, no condensation
Dimensions and Weight
• One rack unit - 1.75”H x 19”W x 15.5”D (44 x 483 x 394 mm)
Studio Audio Connections
• Via Livewire IP/Ethernet. Each selectable group and fixed line has a send and receive input/output
• Each studio has a Program-on-Hold input
• Each Acoustic Echo Canceller has two inputs (signal and reference) and one output
• Livewire+™ AES67 equipped studios may take and supply audio directly to/from the network. Telos Alliance xNodes are available for pro analog and AES3 breakout.
• VX Enterprise supports AES67 connectivity.
Telco Connections
• Audio: standard RTP. Codecs: g.711μ-Law and A-Law, and g.722.
• Control: standard SIP Endpoint, ISDN PRI/T-1, ISDN BRI and POTS may be supported with the appropriate interfaces using an Asterisk Open source PBX.
