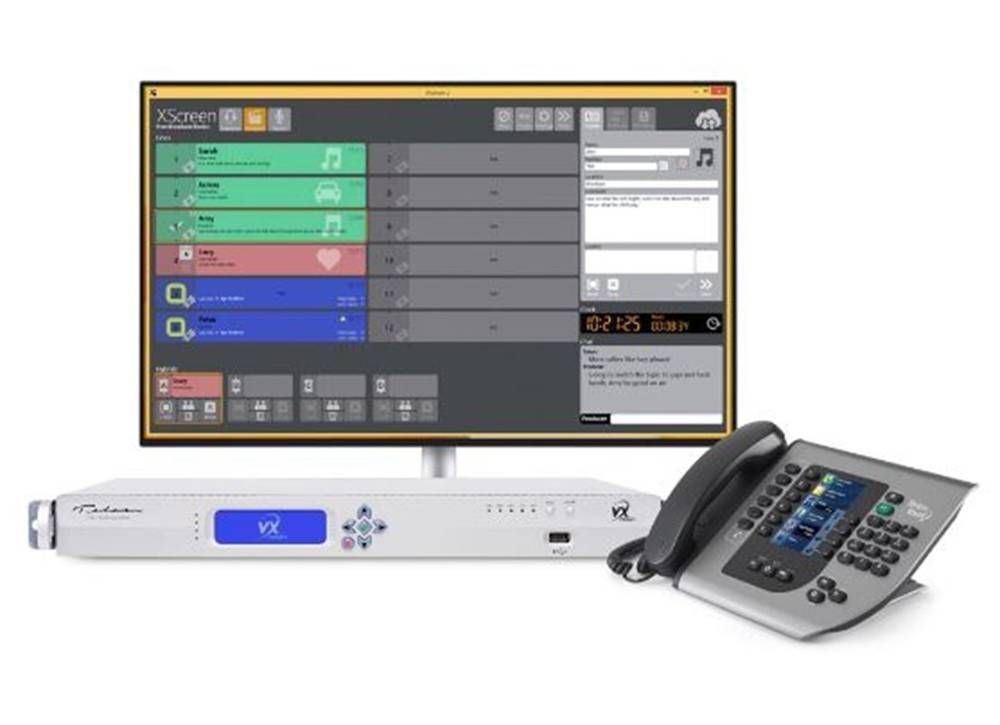

TELOS VX PRIME + VoIP TALKSHOW SYSTEM PN 2001-00510-000

VX PRIME SPECIFICATIONS

System

• Maximum number of simultaneous calls on-air, VX Prime: 8 (more with conferencing)
• Maximum number of SIP numbers, VX Prime: 96

Audio Performance (Node)

Analog Line Inputs

• Input Impedance: >40 k ohms, balanced
• Nominal Level Range: Selectable, 4 dBu or -10dBv
• Input Headroom: 20 dB above nominal input

Analog Line Outputs

• Output Source Impedance: <50 ohms balanced
• Output Load Impedance: 600 ohms, minimum
• Nominal Output Level: 4 dBu
• Maximum Output Level: 24 dBu

Digital Audio Inputs And Outputs

• Reference Level: 4 dBu (-20 dB FSD)
• Impedance: 110 Ohm, balanced (XLR) h Signal Format: AES-3 (AES/EBU)
• AES-3 Input Compliance: 24-bit with selectable sample rate conversion, 32 kHz to 96kHz input sample rate capable.
• AES-3 Output Compliance: 24-bit
• Digital Reference: Internal (network timebase) or external reference 48 kHz, /- 2 ppm
• Internal Sampling Rate: 48 kHz
• Output Sample Rate: 44.1 kHz or 48 kHz
• A/D Conversions: 24-bit, Delta-Sigma, 256x oversampling
• D/A Conversions: 24-bit, Delta-Sigma, 256x oversampling
• Latency <3 ms, mic in to monitor out, including network and processor loop

Frequency Response

• Any input to any output: 0.5 / -0.5 dB, 20 Hz to 20 kHz

Dynamic Range

• Analog Input to Analog Output: 102 dB referenced to 0 dBFS, 105 dB “A” weighted to 0 dBFS
• Analog Input to Digital Output: 105 dB referenced to 0 dBFS
• Digital Input to Analog Output: 103 dB referenced to 0 dBFS, 106 dB “A” weighted
• Digital Input to Digital Output: 138 dB

Total Harmonic Distortion Noise

• Analog Input to Analog Output: <0.008%, 1 kHz, 18 dBu input, 18 dBu output
• Digital Input to Digital Output: <0.0003%, 1 kHz, -20 dBFS
• Digital Input to Analog Output: <0.005%, 1 kHz, -6 dBFS input, 18 dBu output

Crosstalk Isolation, Stereo Separation And CMRR

• Analog Line channel to channel isolation: 90 dB isolation minimum, 20 Hz to 20 kHz
• Analog Line Stereo separation: 85 dB isolation minimum, 20Hz to 20 kHz
• Analog Line Input CMRR: >60 dB, 20 Hz to 20 kHz

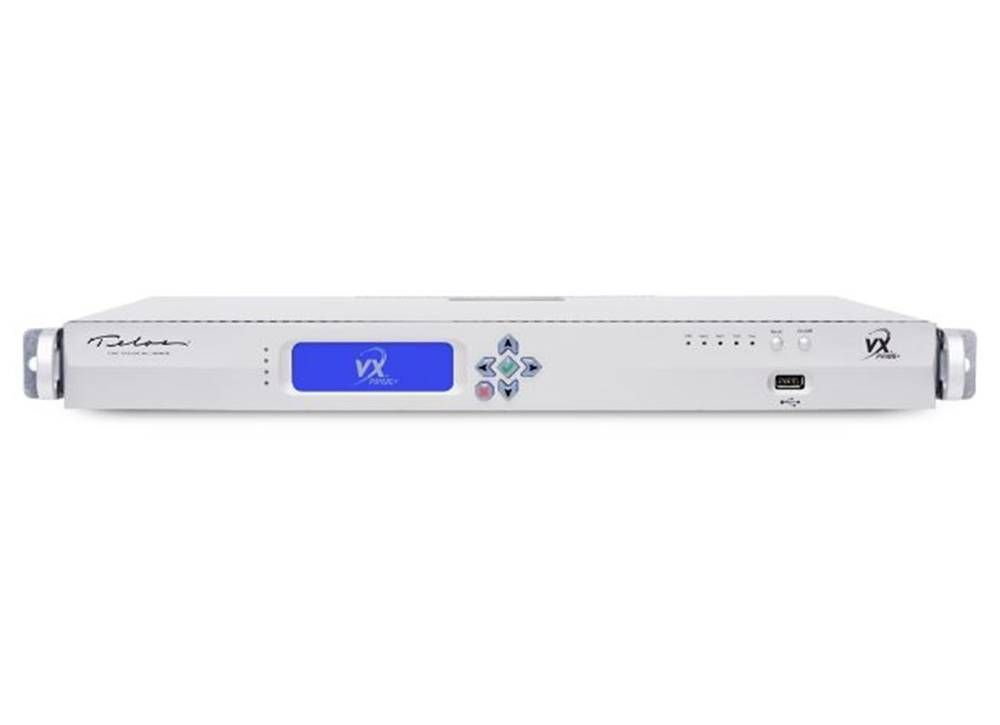

VX Prime Engine

IP/Ethernet Connections

• One 1 Gigabit Ethernet via RJ-45 LAN connection (livewire)
• One 1 Gigabit Ethernet via RJ-45 WAN Connection (SIP provider)

Processing Functions

• All processing is performed at 32-bit floating-point resolution.
• Send AGC/limiter
• Send filter
• Gated Receive AGC
• Receive filter
• Receive dynamic EQ (3 band)
• Ducker
• Sample rate converter

Power Supply AC Input

• Hot-swap capable dual-redundant internal auto-ranging power supplies. 90 – 132 / 187 – 264 VAC, 50Hz/60Hz. IEC receptacle, internal fuse.
• Power consumption: 100 Watts

Operating Temperatures

• -10 degree C to 40 degree C, <90% humidity, no condensation
• Fanless, convection-cooled

Dimensions and Weight

• Rackmount, 2RU
• 3.5 inches x 17 inches x 15 inches
• 10 pounds

Studio Audio Connections

• Via Livewire Ethernet. Each selectable group and fixed line has a send and receive input/output.
• Each studio may be configured with its own Program-on-Hold input.
• Livewire-equipped studios take audio directly from the network.
• Telos Audio Interface Nodes are available for professional-level analog and AES3 connection breakouts for clients without Livewire AoIP networking.

Telco Connections

• Audio: standard RTP. Codecs: G.711u-Law and A-Law, and G.722.
• Control: standard SIP endpoint
