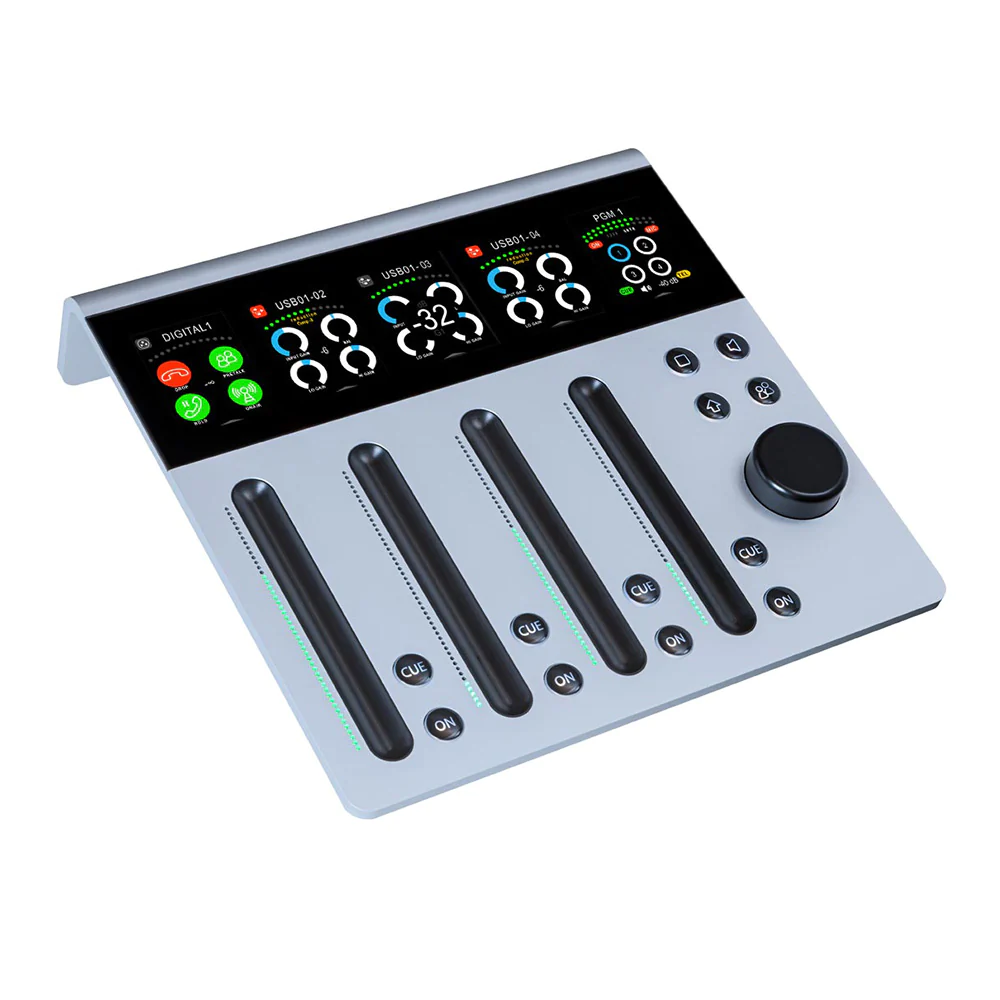

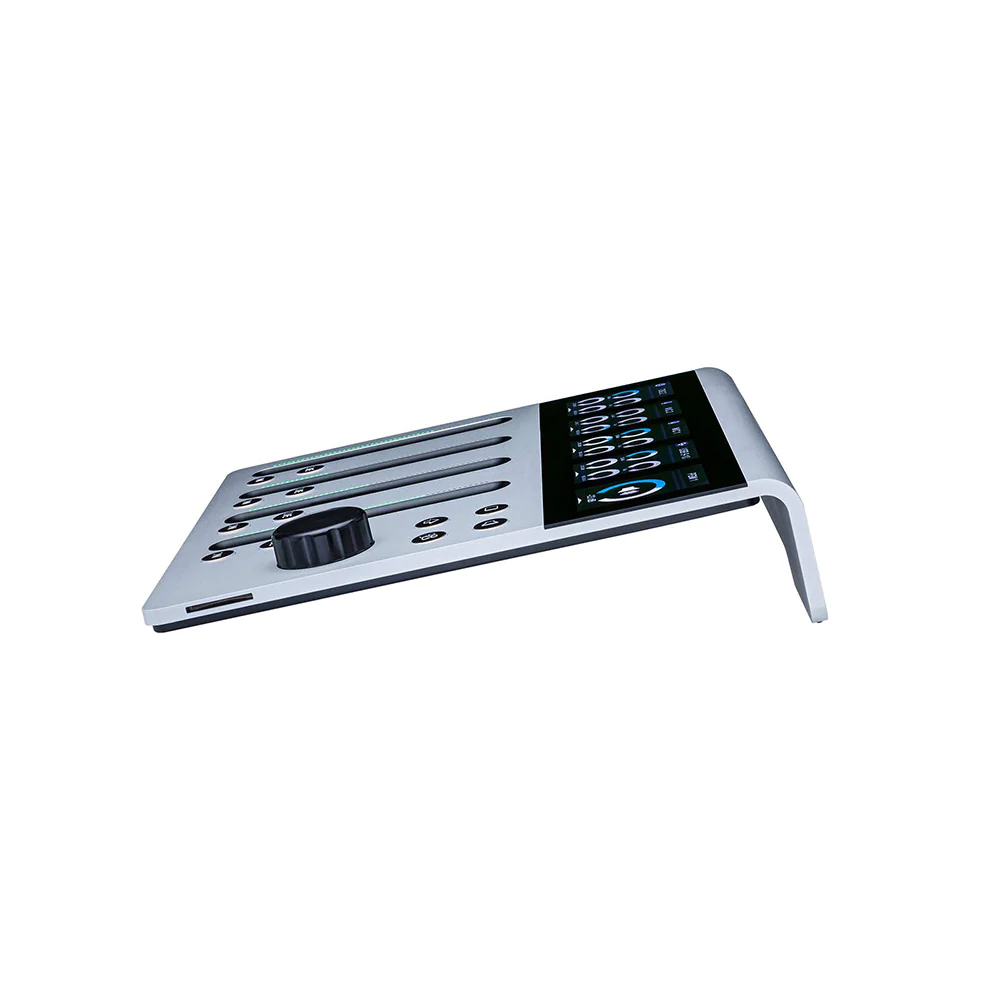

Intellimix Focus is a 4-channel device that highlights the important key features most users ask for. It's the ideal solution for single work places and less technically experienced users.
Intellimix Focus addresses users that do not need to handle more than four channels. Intellimix Focus makes mixing even easier. User's no longer need to handle detailed adjustments that may distract them from their actual mixing. Its lower price compared to Intellimix Pro makes Intellimix Focus the ideal solution for single work places and less technically experienced users like many reporters. As such it is the perfect replacement for every first-generation Intellimix. If needed, advanced AoIP connectivity can be added to Intellimix Focus with the optional X64 AoIP extension.
Intellimix. Enjoy a whole new mixing experience.
Intellimix will simplify your daily work and stimulate your creativity. Get in touch with uncompromising usability. Be it media, audio production or audio for video: You will discover amazing features and a set of well-thought-out control elements like the revolutionary G-Touch© faders. Simpler and smarter - that's the next generation Intellimix!
Product Specs:
Content of delivery | (1) Intellimix Control Unit with fixed PoE cable (2) Intellimix Base Unit (19 " 1U) (3) Brick power supply (4) Mains AC cable (5) Microfiber cloth for cleaning the display |
Inputs | |
Mic/Line Inputs | 2x balanced, with selectable sensitivity -77dBu...+18dBu |
Line Inputs analog | 2x XLR balanced, max. +24dBu 2x RCA unbalanced, max. +24dBU |
Line Inputs digital | 3x AES3/EBU with sample rate converters ADAT-S/PDIF 1x selectable S/PDIF stereo input with sample rate converter or ADAT 8-channel input |
USB | 16x mono or 8x stereo inputs based on PUC2 technology |
AoIP (Dante) | 1x RJ45 4x mono inputs |
Outputs | |
Line Outputs analog | 4x XLR balanced, max. 24dBU 2x RCA unbalanced, max. 24dBU |
Headphone | 2x stereo |
Line Outputs digital | 3x AES3/EBU with sample rate converters ADAT-S/PDIF 1x selectable ADAT 8-channel output or S/PDIF stereo output with sample rate converter |
USB | 16x mono or 8x stereo outputs based on PUC2 technology |
AoIP (Dante) | 1x RJ45 4x mono outputs |
Others | |
GPI/GPOs | 2x GPI via optocoupler 4x GPO via PhotoMOS relay |
APC Extension-Ports | 4x RJ45 powered Ethernet for extensions |
Options | |
Internal Extension Slot | 1x for other AoIP standards |
External Slots | 2x for MADI |
Internal Intellimix Extensions | |
Intellimix X64 (YT2305) | AES67 64 inout channels + 64 output channels (8 streams) nDNS / SDP / RAVENNA Advertisement Livewire+ Advertisement + GPIO Control SAP / Dante Advertisement NMOS Advertisement SMPTE ST2110 ready |
MADI Port (YT2300) | Type: single mode STP 56x or 64x AES 10 MADI input channels 56x or 64x AES 10 MADI output channels |
MADI Port (YT2301) | Type: multimode STP 56x or 64x AES 10 MADI input channels 56x or 64x AES 10 MADI output channels |
Intellimix Extensions | |
AES67 RAVENNA Livewire+ Interface (YT2305) | 64x channels in (8 streams) 64x channels put (8 streams) |
Multi I/O Box (YT2310) | 2x Mic/Line Inputs 2x Headphone Outputs 8x Line Inputs analog 8x Line Outputs analog 3x AES3/EBU Inputs 2x AES3/EBU Outputs 1x S/PDIF Input 1x S/PDIF Output 2x USB Audio IF 10x GPI 10x GPO 2x ACI |
Digital I/O Module (YT2311) | 4x AES3/EBU/SPDIF input with sample rate converters 4x AES3/EBU/SPDIF outputs |
Analog I/O Module (YT2313) | 18/24dBU 4x analog Line Inputs 4x amalog Line Outputs 4x GPI isolated 4x GPO isolated |
Dual De-/Embedder (YT2312) | 2x 3G/HD/SD SDI De-Embedders 2x HD/SD SDI Embedders |
Intellimix Control Unit | |
Display | Light hi-res color TFT transreflective widescreen with 250Cd/m2 |
Touchscreen | Gesture ready 5-finger touch sensor |
Faders | 4x G-Touch© 120mm faders with multifunctional position indicators |
Keys | 12x illuminated sealed hard keys |
Chassis | Solid aluminum desktop cabinet with SD Card reader |
