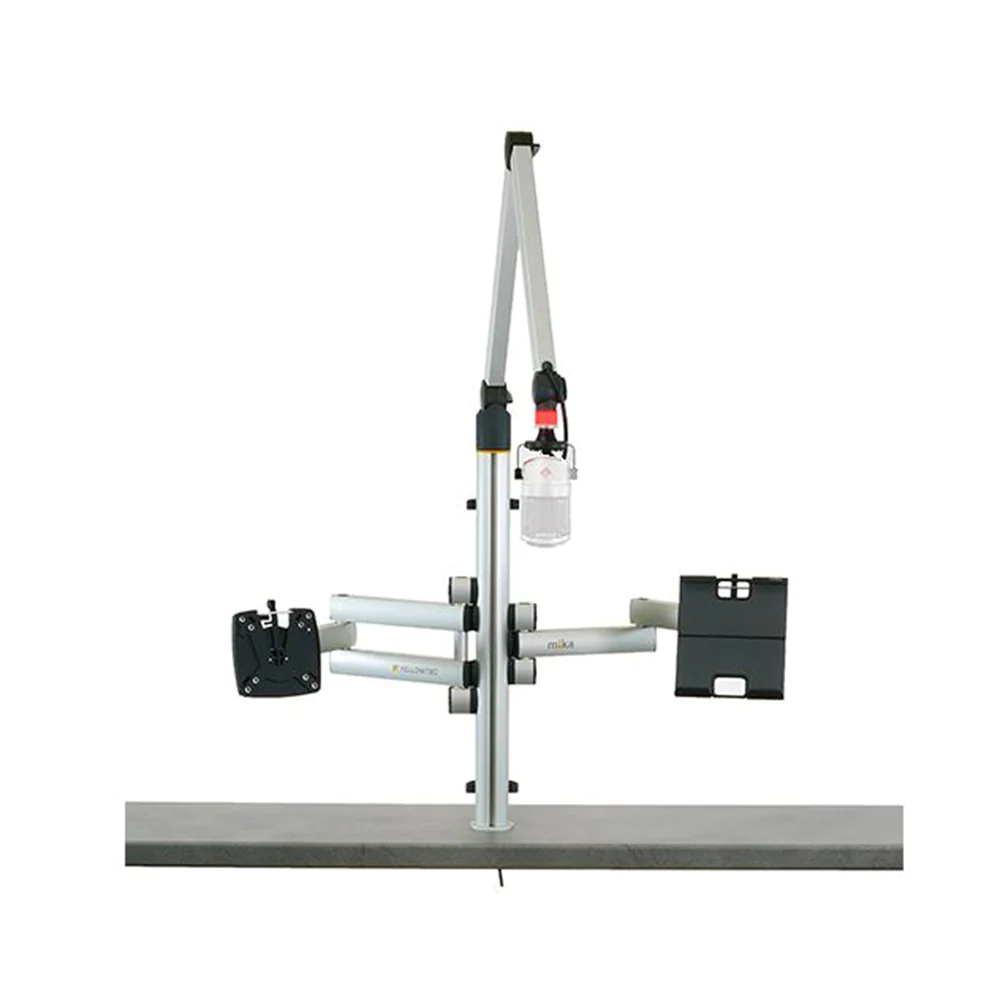

As a package option, m!ka Sets faciliate the combination of multiple m!ka elements. m!ka Set 11 covers all the m!ka parts you need to integrate a monitor, a microphone and a tablet device into your setup. The m!ka Single Monitor + Single Mic + Pad-Dock Set creates the ideal conditions to easily attach them.
The set includes one m!ka On Air Microphone Arm M. Equipped with a bright dual color LED On Air indicator, the mic arm is not only adjustable to your microphone's weight and puts your mic into the perfect position. It also allows users to signalize multiple statuses.
Mic Arm M supports microphones weighing up to 2kg (4.5lbs)
Dual Color litt CleanVision® On Air Indicator (red/white)
Adjustable friction joints
Wiring concealed by tubes and joints
Open-end cable tails (without XLRs)
Monitor Arm M supports monitor weighing up to 15kg (33.06lbs)
Monitor Arm SL supports monitor weighing up to 15kg (22.05lbs)
Equipped with QuickFix Adapter (VESA 75/100) for easy and safe monitor fixation
Adjustable friction joints
Separately adjustable friction of the swivel head's horizontal and vertical inclination
m!ka Pad-Dock serves as holder for tablet devices
Extendable brackets adapt to individual tablet sizes
To be used with m!ka Monitor Arm of your choice
Equipped with QuickFix Adapter for easy and safe fixation to m!ka Monitor Arm
Sturdy plastic construction
System Pole allows for individual arrangements of m!ka equipment in multiple positions
4 full-height grooves serve as mounting points to attach up to 4 m!ka elements at the same height of the pole
m!ka Monitor Arms can be fixed directly inside the grooves
One additional m!ka element can be mounted on top
A litt Signaling Device perfectly fits on top of the pole
Internal steal thread at the bottom for pole mounting
To affix the pole to your desk use the System Pole Desktop Mounting Kit
Sturdy tube construction
Made of durable, silk-mat anodized aluminum
Fully compatible with the whole m!ka Mounting System's range
Various alternative mounting options: Support for desk / wall / ceiling mounting
Renowned German craftsmanship
Note that you have to combine the m!ka elements. The set is not delivered as one piece.
A monitor is not included.
A tablet device is not included.
A microphone is not included.
XLR-connectors are not included. We suggest to use XLR-5 pin connectors for microphone signal and on air light feed on the cable's lower end and XLR-3 type connectors for microphones on the upper end of the cable.
Product Specs:
YT3205 m!ka On Air Mic Arm M aluminum
Maximum range: 78.7 cm / 31" Weight: 1.05kg (2.31lbs) net / 1.5kg (3.31lbs) gr 5/8" thread to attach your microphone
YT3230 m!ka Monitor Arm M aluminum
Maximum range: 50.5 cm / 19.89" Horizontal range: 105 deg. Maximum monitor weight: 15 kg (33.06lbs)
YT3228 m!ka Monitor Arm SL aluminum
Maximum range: 45 cm / 17.72" Maximum monitor weight: 10 kg (22.04lbs)
YT3275 m!ka Pad-Dock
Suitable for tablet devices with a side length of 160-300mm Extendable brackets adapt to the size of your Tablet Computer
YT3243 m!ka System Pole M aluminum
Height: 21.5" (54.5cm) O 51mm
YT3245 m!ka System Pole Desktop Mounting Kit
Suitable for panel thickness up to max 50mm Dual color (black / aluminum) Large washer to secure durable fit Sturdy stainless-steel construction
