YELLOWTEC YT5230 IXM BUNDLE WITH SUPERCARDIOID PREMIUM LINE HEAD

SKU
YT5230
MFR#
YT5230
was $1,158.00 Special Price $1,088.52
Availability: Out of stock
YELLOWTEC YT5230 IXM BUNDLE WITH SUPERCARDIOID PREMIUM LINE HEAD

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

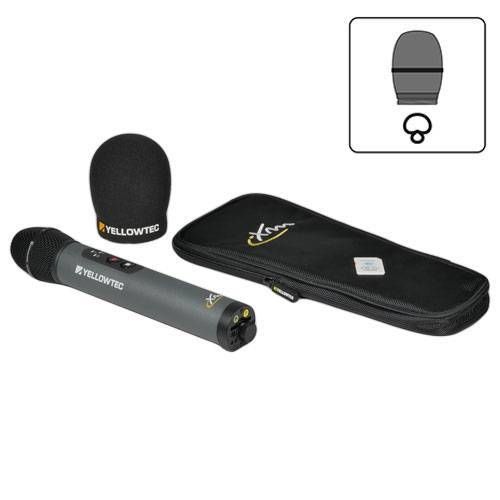

The Yellowtec iXm PREMIUM Supercardioid Bundle consists of the iXm digital recording microphone with Premium Supercardioid capsule (YT5030) and a package of accessories that includes a pouch, windshield, 16GB SD card and USB-C & Lightning SD Card Readers.

The Yellowtec iXm digital recording microphone is a professional handheld all-in-one recorder for reporters in the field. Featuring a built-in SD card slot that accepts standard SD or SDHC memory cards, iXm provides perfect auto levelling by way of its unique LEA engine. The iXm’s microphone capsule has been optimised for high speech intelligibility and low handling noise sensitivity. It is  twist-off-twist-on exchangeable and designed to suit varying recording environments. Omnidirectional, cardioid and supercardioid pick up patterns are available, and the capsules are automatically detected for automatic gain and DSP adaption.

Your Rating

DETAILS

  • All-in-one package for straightforward voice recording workflows
  • Bundle of iXm Recording Mic with iXm Accessories
  • Universal recording device especially developed for journalists
  • Delivers amazing voice recordings no matter the environment
  • Unique onboard LEA DSP Engine (Level Energy Arbitration)
  • Perfect levels at the push of a button even under stressful conditions
  • Interchangeable heads allow for flexible changes of pickup patterns
  • Clean dashboard + status LEDs for intuitive use
  • No handling noise
  • Intelligent power management: Total operation time of up to 14h
  • Powered by 3x AA-batteries and rechargable built-in battery
  • Automatic load-balance of both power sources

Spec Check: iXm PREMIUM Omni-directional (beyerdynamic)

  • Designed for voice recordings in quiet environments like conference rooms
  • Electret condenser microphone capsule made by beyerdynamic
  • Wide natural frequency response
  • Shock mount isolation protects your recording from handheld noise
  • >
  • Sensitivity: 6mV/Pa +/- 4dB
  • Impedance: 200 Ohm
  • Dimensions: 72mm x Ø 48mm
  • Weight: 92g

Tech Specs: iXm Recorder.

Thanks to its onboard LEA Level Energy Arbitration, the iXm Recording Microphone is a first choice recording device for journalists.

Mic Input

  • Frequency Response: 20 Hz - 20 kHz +/- 1,5 dB @ 44.1 + 48 kHz
  • Input refered noise: -105 dB (@60dB Gain)
  • THD+N: 0,01% @ 20 dB GainTHD+N
  • Gain: Up to 60dB gain
  • High Pass Filter: 12 dB/oct. @ 80, 100, 120, 150, 180, 200 Hz (switchable)
  • Capsule Filter: 3 times parametric filters autoselected by capsule type recognition

Line Input

  • Line Input Level Balanced: -20 dBu …. 6 dBu @FS
  • Line Input Level Unbalanced: -20 dBu …. 0 dBu @FS
  • THD+N: 0,01% or -78 dB @ -3 dBFS

LineOutput

  • Line Output Level Balanced: -20 dBu …. 6 dBu @FS
  • Line Output Level Unbalanced: -20 dBu …. 0 dBu @FS
  • Line Output Frequency Response: 20Hz - 20kHz +/- 1dB @44.1 and 48Hu
  • THD+N: 0,01% or -78 dB @ -3 dBFS

Digital Parameters

  • Sampling Frequency: 48 kHz, 44.1 kHz, 32 kHz
  • Bit Resolution: 16 Bit
  • Audio Formats: Linear PCM, MPEG 1 Layer 2
  • Bit rates MPEG mono: 128, 160, 192kbps
  • Bit rates MPEG dual channel: 256, 320, 384 kbps
  • Number of channels: 1 mono or 2 dual channel (mono)

Headphone Out

  • Minimum Impedance: 16 Ohm
  • Output Power: 40 mW @ 16 Ohm

Memory

  • Memory Card: SD or SDHC Memory Card up to 16GB
  • File System: FAT16 FAT32 (SD-CARD)
  • File Format: BWF, WAV, MP2, Support of BWF Header information (Version 0)
  • Data Connection: USB 2.0
  • Recording Time: Recording time depends on SD Card and File-Format: 2GB = 22.75hrs @192kBps mono

Dimensions recorder

  • Length: 193mm
  • ø : 38mm
  • Weight: 283g
