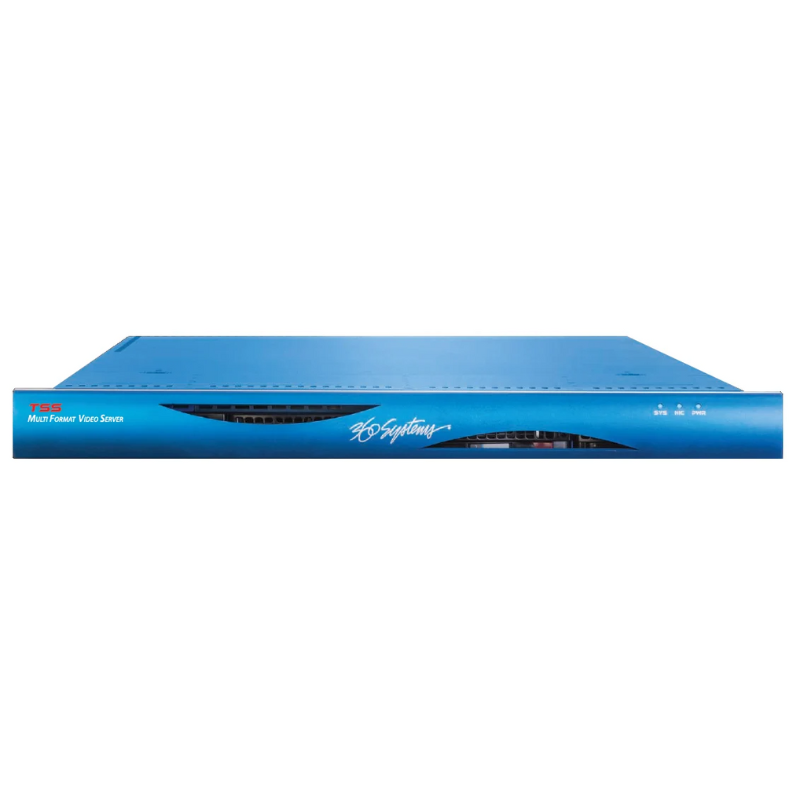

360 SYSTEM TSS-2100 2 CHANNEL HD/SD SERVER ( 1 RECORD / PLAY AND 1 PLAYOUT ) 4TB STORAGE WITH REMOTE WORKSTATION
SKU
360-TSS-2100
MFR#
TSS-2100
$21,675.00
Availability:
Out of stock
360 SYSTEM TSS-2100 2 CHANNEL HD/SD SERVER ( 1 RECORD / PLAY AND 1 PLAYOUT ) 4TB STORAGE WITH REMOTE WORKSTATION
The short, 1U chassis TSS Mini-2100 is just as powerful as the full size TSS servers, along with the same great features. That makes the TSS MINI-2100 from 360 Systems ideal for all applications – big or small. The TSS MINI-2100 offers a single bi-directional channel and a single playout channel. The TSS MINI System incorporates a graphic user interface (GUI) which provides quick access to every server function. It is controlled by a standard keyboard and mouse (supplied) and requires only a SVGA display. The full GUI is also available from remote workstations installed on a PC platform.
360 Systems’ TSS MINI Multi Format Video Server is a multi-channel, multi-format high-definition / standard-definition video recorder/server designed for broadcast, production, and Pro A/V applications. The server’s extensive feature set makes it an excellent choice for VTR replacement, broadcast automation, remote trucks, corporate, educational, house-of-worship, and live entertainment presentations. Each TSS MINI Multi Format Video Server input and output can be independently configured for standard definition or high definition at 720p or 1080i.
Features:
- 2 Channels, 1 Record/Playout and 1 Playout – TSSMINI-2100
- 1U, Short Chassis Form Factor
- 16 Channels Embedded Audio
- H.264 and MPEG2 Encoding / Decoding
- Automatic Up/Down/Cross Conversion of HD or SDcontent
- Remote Control From PC’s via Ethernet
- Redundant Power / Cooling
Specifications:
- VIDEO:
- Video Input: 1 Channel
- Video Outputs: 2 Channels
- Simultaneous video streams: 2 (1 record 1 playout, 2 playout)
- HD Input/Output: HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M)
- Video Format: 1080i at 29.97 or 25 Hz; 720p at 59.94 or 50 fps; 525/60 NTSC; 625/50 PAL
- Encoding Format: H.264 or MPEG2
- HS/SD Scaling: Up, Down, and Cross Conversion of Any File Format to Selected Output
- Jog/Shuttle: Zero to 128X, forward/reverse
- Slow Motion Play with audio: Zero to +/- 2X, forward/reverse
- Frame Accuracy: Frame accurate play, pause and stop
- Genlock Input: Blackburst or tri-level
- ANCILLARY DATA:
- Ancillary Data: HD – 608/708 in VANC; SD – Line 21 VBI
- AUDIO INPUTS / OUTPUTS (per video channel):
- SDI Embedded Audio: 16 channels
- STORAGE:
- Disk Storage System: SATA array, four – 1 or 2 Terabyte drives, RAID 5 controller
- Total Capacity: 8 Terabytes (4 Terabytes standard model)
- Drive Replacement: Hot Swappable
- CONNECTIVITY:
- Networking: Gigabit Ethernet
- Serial Control: VDCP or Odetics protocols, 9-pin on CXP-5 module (optional).
- GPI Control: 12 Inputs, Outputs, Programmable on CXP-5 module (optional)
- MISCELLANEOUS:
- Fault Monitoring LEDs: Front Panel LEDs, power, system, network
- Fault Monitoring Output: GPI output, open collector
- Software Updates: USB
- Power Supply: Dual Redundant, 100-250V – 50/60 Hz. 400W, rear panel plug-in
- Cooling: Redundant fans
- Chassis: 1-RU x 19” Rack, Weight: approx 45 lb. (22 kg)
- EXPANSION MODULES:
- CXP-5: Serial and GPI control module. 1 RU (optional)
