AIDA CCU-MINI COMPACT VISCA SERIAL AND IP PTZ CAMERA CONTROLLER
SKU
AIDA-CCU-MINI
MFR#
CCU-MINI
$295.00
Availability:
Out of stock

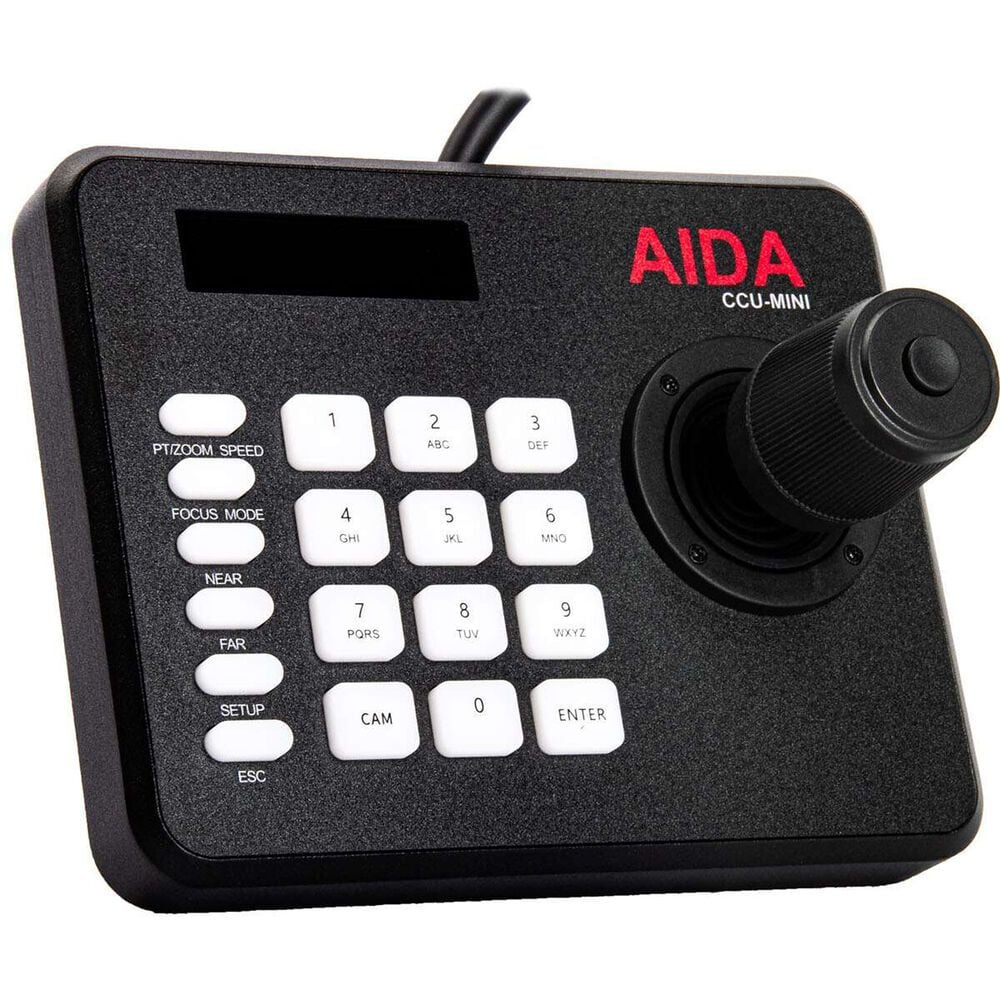

AIDA CCU-MINI COMPACT VISCA SERIAL AND IP PTZ CAMERA CONTROLLER
Add this simplified Compact VISCA Serial & IP PTZ Camera Controller from AIDA Imaging to your PTZ camera production for fast camera selection and easy usage. Using the built-in breakout cable, the CCU-MINI can connect to your cameras using the VISCA serial protocol or control IP cameras over a LAN. The breakout cable features a 12 VDC female power input, an RJ45 Ethernet cable, an RS-485 terminal block serial cable, and an RJ45 RS-422 serial cable.
Using the 3-way joystick, you can control the pan, tilt, and zoom operations for up to seven cameras. You can select cameras using a single button press, and there are additional buttons for control of focus, pan/tilt speed, and setup operations. A large LCD shows you the status of your camera controls.
Features:
- Control up to Seven PTZ Cameras
- Pan/Tilt/Zoom Joystick
- One-Touch Camera Selection
- VISCA Serial and VISCA-over-IP Control
- Compact, Simplified Controls, Large LCD
Specifications:
| Number of Supported Cameras | 7 Channels |
| Supported Control Protocols | IP, RS-232, RS-422, VISCA |
| Control I/O | 1x RJ45 (RS-422) 1x RJ45 (IP Control) 1x Block (RS-485) |
| Controls | 12x Camera Selection Buttons 4x Multifunction Buttons 1x Focus Button 1x Camera Movement Speed Button 1x Menu Button 1x Pan/Tilt, Zoom Joystick |
| PoE Support | Yes |
| Power Connectors | 1x Barrel / Coaxial |
| Input Power | 12 VDC |
| Security Lock Support | No |
| Dimensions | 6.75 x 5.5 x 4" / 171.45 x 139.7 x 101.6 mm |
| Weight | 2 lb / 907 g |
