AIDA CS-12.0F 12MM HD CS MOUNT LENS FOR GEN3G CAMERA
SKU
AIDA-CS-12.0F
MFR#
CS-12.0F
$40.00
Availability:
Out of stock

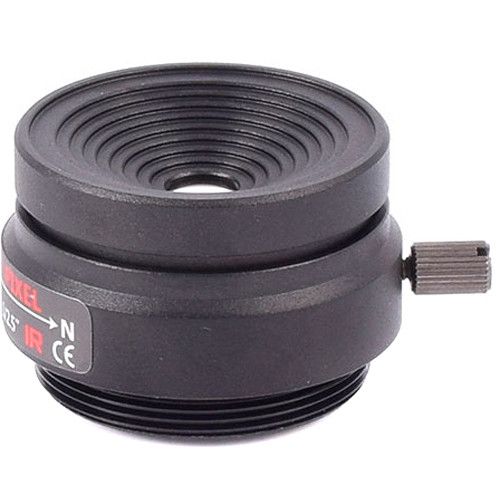

AIDA CS-12.0F 12MM HD CS MOUNT LENS FOR GEN3G CAMERA
The AIDA Imaging 12mm f/1.6 CS Mount Lens is designed for cameras that use a 1/3"-type sensor and optimized for AIDA Imaging GEN series cameras that use a CS mount. On a camera that uses a 1/2.5"-type sensor, this lens will yield a 30.8° angle-of-view.
Features:
- For 1/3"-Type Cameras
- Fixed f/1.6 Aperture
- Optimized for GEN Series Cameras
Specification:
| Focal Length |
12mm
|
| Aperture |
f/1.6
|
| Focus Adjustment |
Manual
|
| Iris |
Fixed
|
| Horizontal Field-of-View |
1/2.5": 30.8°
1/2.8": 27° 1/3.2": 15.4° |
| Image Format |
Max.: 1/2.5" sensor
|
| Distortion |
1.5% (with 1/2.5" sensor)
|
| Mount Type |
CS
|
| Operating Temperature |
-4 to 140°F / -20 to 60°C
|
| Dimensions |
Length: 0.81" / 21 mm
Diameter: 1.2" / 30 mm |
| Weight |
1 oz / 27g
|
