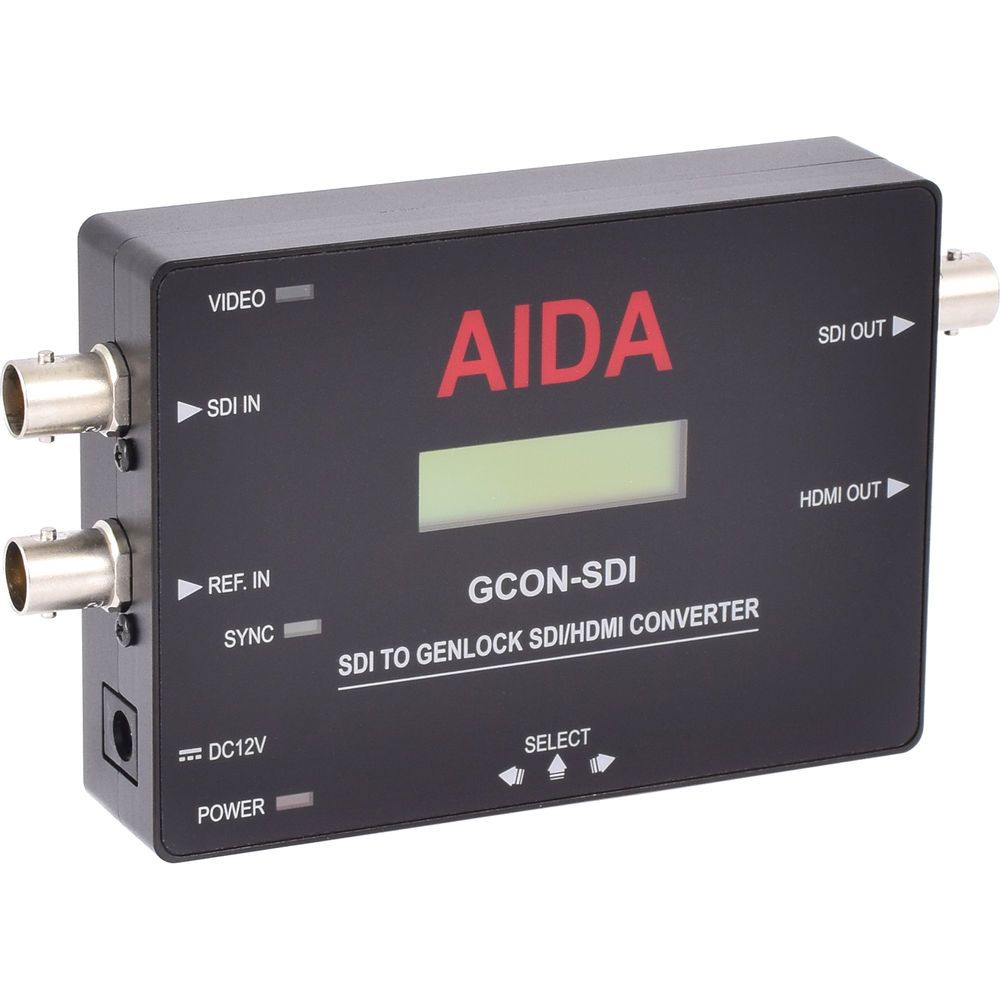

AIDA GCON-SDI SDI GENLOCK CONVERTER W/ ACTIVE LOOP OUT
SKU
AIDA-GCON-SDI
MFR#
GCON-SDI
$495.00
Availability:
Out of stock
AIDA GCON-SDI SDI GENLOCK CONVERTER W/ ACTIVE LOOP OUT
The GCON-SDI supports 1080p resolution up to 60 fps, converting SDI/3G-SDI sources to Genlock SDI/3G-SDI and HDMI with zero latency. While keeping the integrity of the original source feed intact, the featured Genlock Tri-Level Sync makes synchronization with other system components possible for seamless vertical interval switching between sources. The GCON-SDI also supports ancillary data in both SMPTE 352 payload ID and audio and relays it through its SDI output. Its rugged and portable design makes GCON-SDI a perfect camera sidekick to where it’s needed most.
Features:
- 3G-SDI up to 1080p60 full HD Resolution Input
- Simultaneous HDMI and SDI Loop Output
- SMPTE 352M Ancillary Data supported
- Embedded audio pass through via SDI & HDMI
- Adjustable V-sync & H-sync phases
- Divisional picture comparison
- Built in Pattern Generator
- Built in LCD menu screen
- Built in menu control button
- Versatile, compact, and rugged design
Specification:
| Video Input | 3G-SDI / HD-SDI |
| Resolution Rate | 1080 60p/59.94p/50p/30p/29.97p/25p1080 60i/59.94i/50i720 60p/59.94p/50p/30p/25p |
| Color Space | 4:2:2 (YCbCr) 10-bit |
| Output | Gen-locked HD-SDI / 3G-SDI, Gen-locked HDMI 1.3a |
| Gen-lock Control | ON/OFF, H Sync & V Sync Adjustment |
| Audio Control | Audio Bits (16, 20, 24 Bits) |
| Payload ID | ON/OFF |
| Payload Generate | Thirteen Patterns |
| Audio Input | 16 Channels Embedded SDI Audio |
| SMPTE | SMPTE 292M, SMPTE 424M |
| Gen-lock | External Tri-Level Input |
| Control | OSD Button & Text LCD |
| Operating Temperature | 32°F to 104°F |
| Dimensions | 130 mm x 75 mm x 24 mm / 5.11" x 2.95" x 0.94" |
| Weight | 173 g / 0.38 lbs |
| Power | 6W at 12VDC (+9 to +15VDC) |
