AIDA PTZ4K-NDI-X30W AIDA BROADCAST/CONFERENCE NDI®|HX 4K NDI/IP/HDMI PTZ CAMERA 30X ZOOM AUTO-TRACKING WHITE

AIDA PTZ4K-NDI-X30W AIDA BROADCAST/CONFERENCE NDI®|HX 4K NDI/IP/HDMI PTZ CAMERA 30X ZOOM AUTO-TRACKING WHITE

AIDA PTZ-NDI3-X20B AIDA BROADCAST/CONFERENCE NDI®|HX3 120FPS FHD NDI/IP/SRT/SDI/HDMI PTZ CAMERA 20X ZOOM AUTO-TRACKING BLACK

AIDA PTZ-NDI3-X20B AIDA BROADCAST/CONFERENCE NDI®|HX3 120FPS FHD NDI/IP/SRT/SDI/HDMI PTZ CAMERA 20X ZOOM AUTO-TRACKING BLACK

AIDA HD-100A-IP67 AIDA FHD HDMI POV WEATHERPROOF CAMERA WITH TRS STERIO AUDIO INPUT

AIDA
SKU
AIDA-HD-100A-IP67
MFR#
HD-100A-IP67
$350.00
Availability: Out of stock
AIDA HD-100A-IP67 AIDA FHD HDMI POV WEATHERPROOF CAMERA WITH TRS STERIO AUDIO INPUT
Be the first to review this product
Add to Wish List:

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

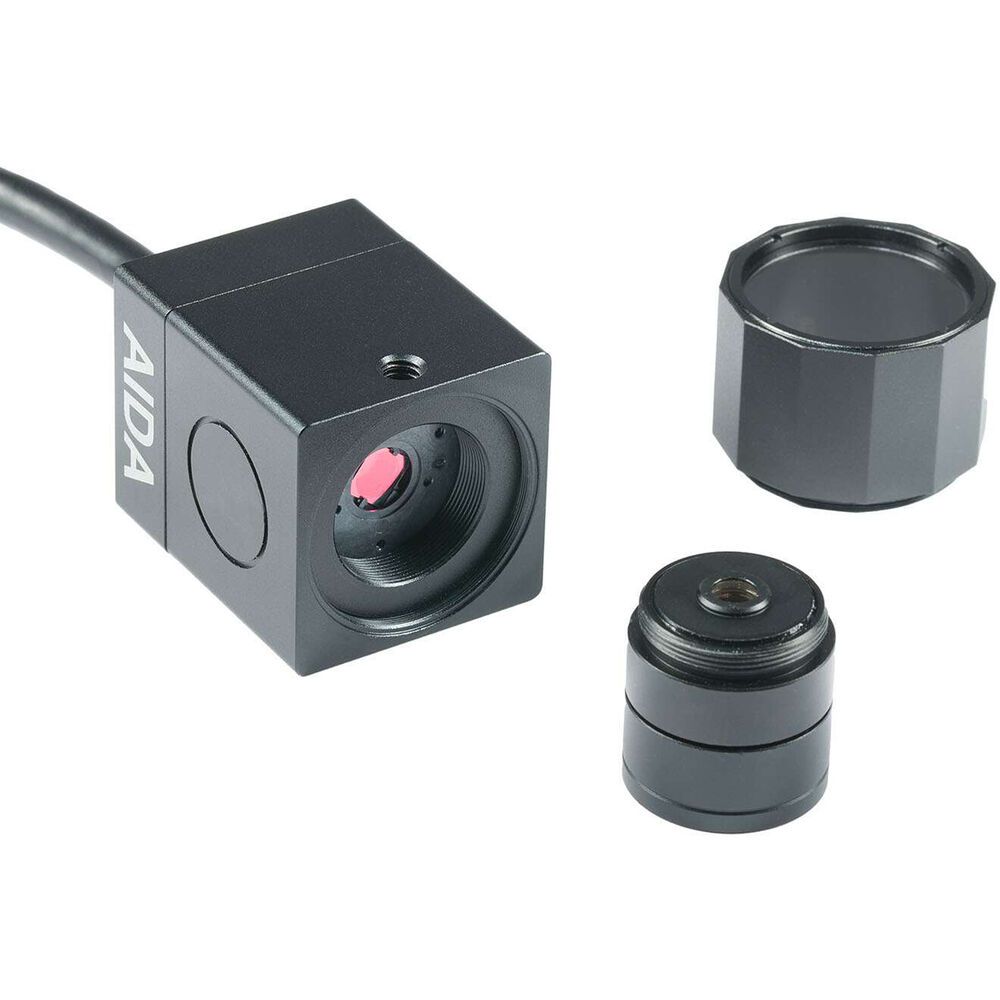

Capture 1080p60 video in surveillance, broadcasting, and other applications where a small form factor is ideal using this Full HD HDMI IP67 Weatherproof Camera with TRS Stereo Audio Input from AIDA Imaging. The camera features a 1/3" CMOS image sensor and a C/CS mount with an included 4mm lens. An integrated 6' breakout cable facilitates the camera's HDMI 1.3 output connection and 3.5mm TRS stereo input for embedded audio. Control over the camera can be achieved via RS-485 VISCA and OSD. The camera itself is IP67 rated and includes a weatherproof cap to protect the sensor when not in use. Power is delivered via an included 12 VDC power supply.

Your Rating

Features:

  • Up to 1080p60 Video
  • 1/3" CMOS Image Sensor
  • C/CS Mount with 4mm Lens Included
  • IP67 Rated Camera, Weatherproof Cap
  • HDMI 1.3 Output, 3.5mm TRS Input
  • RS-485 Port with VISCA and OSD Control
  • 6' Integrated Breakout Cable
  • Two 1/4"-20 Mounting Threads

Specifications:

Sensor Size 0.3" / 7.5 mm
Minimum Illumination 0.2 lux (Day)0.1 lux (Night)0.005 lux (Slow Shutter ON)
Image Sensor 1/3" CMOS
Pixel Size 2.75 x 2.75 μm
Color Space 4:2:2 (YCC) 10-bit
Effective Pixels 1920 x 1080
Lens 4mm (C/CS Mount)
White Balance Auto, Manual (9000 to 11000K)
Video I/O 1x HDMI 1.3 Output
Audio I/O 1x 1/8" / 3.5 mm TRS Line/Mic Input
Control RS-485 VISCA, OSD Button
Audio Sample Rate 16/24/32 Bits
Resolutions 1080p at 60, 59.94, 50, 30, 29.97, 25, 241080i at 60, 59.94, 50720p at 60, 59.94, 50
Power Source AC Adapter with Power Brick
DC Input Power 9 to 15 VDC
Power Consumption 6 W
Mounting 2x 1/4"-20 Thread
Color Black
Operating Conditions 32 to 104°F / 0 to 40°C
Cable Length 6' / 1.8 m
Dimensions 2 x 1.5 x 1.5" / 50.5 x 39 x 39 mm (With Lens)
Weight 6.3 oz / 180 g
