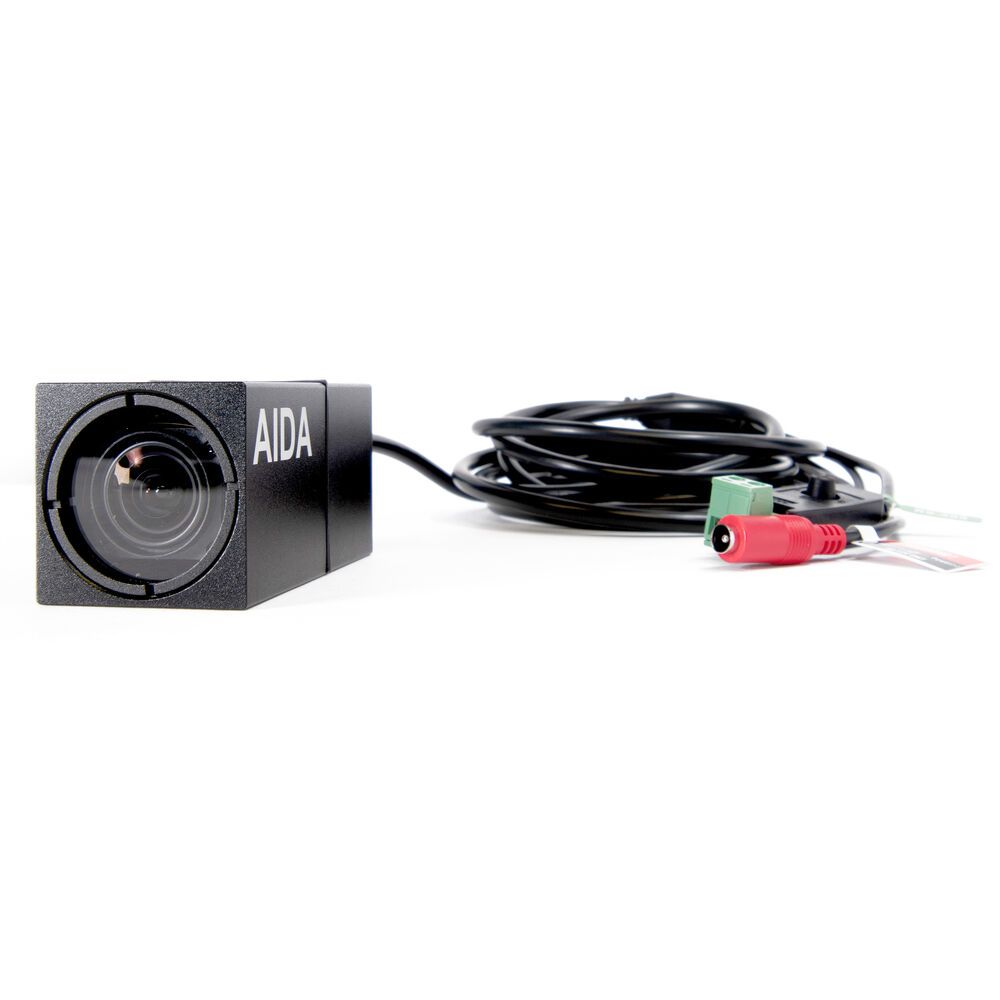

The ultracompact Weatherproof 3G-SDI 1080p POV Camera with 3.5x Optical Zoom from AIDA Imaging is suitable for web-conferencing, sports, auto racing, surveillance, medical, broadcasting, live production, education, house of worship, and other applications. Measuring approximately 2" wide by 2" tall and 3.25" deep, the camera can fit in a variety of spaces where a small footprint and wide-angle lens are advantageous, such as a dashcam or discretely in the corner of a surgical room. The camera captures up to 1080p60 resolution video, and it features a wide-angle, built-in 3x zoom lens.
The camera has a 3G-SDI output that allows you to connect it to switchers, monitors, recorders, and other devices for viewing and/or recording the image. An included 10' long breakout cable provides inputs for power, RS-485, and VISCA serial control. The cable also has an integrated OSD controller on it. This allows you to select and adjust the built-in image tools, such as 2D/3D noise reduction, digital slow shutter, black level compensation, flicker detection as well as selecting the exposure mode. The camera body includes both a power and SDI indicators allowing you to confirm its operation at a glance. Two 1/4"-20 threaded mounting holes, one on the bottom and one on the top, allow you options when mounting the camera.
Specification:
| Image Sensor |
1/3" Progressive CMOS
|
| Effective Pixels |
1920 x 1080
|
| Pixel Size |
2.75 µm x 2.75 µm
|
| Resolution |
1080p: 60/59.94/50/30/29.97/25/24
1080i: 60/59.94/50 720p: 60/59.94/50 |
| Color Space |
4:2:2 (YCbCr) 10-Bit
|
| Standards |
SMPTE 292M, SMPTE 424M, SMPTE 2081-10
|
| Connections |
Video Output: 1 x BNC 3G-SDI
I/O: 1 x 2-Pin RS-485 Power: 1 x Barrel Female |
| Focal Length |
3.85 to 13.4mm
|
| Angle of View |
78 to 25°
|
| Optical Zoom |
3x
|
| Mount Type |
2 x 1/4"-20 Threaded Hole
|
| Power |
12 VDC (9 to 15 VDC)
|
| IP Rating |
IP67
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Dimensions |
3.3 x 1.9 x 1.9" / 8.31 x 4.8 x 4.8 cm
|
| Weight |
4.8 oz / 140 g
|
