AIDA HD3G-IPC-100A FHD 3G-SDI WITH IP CONTROL POV CAMERA

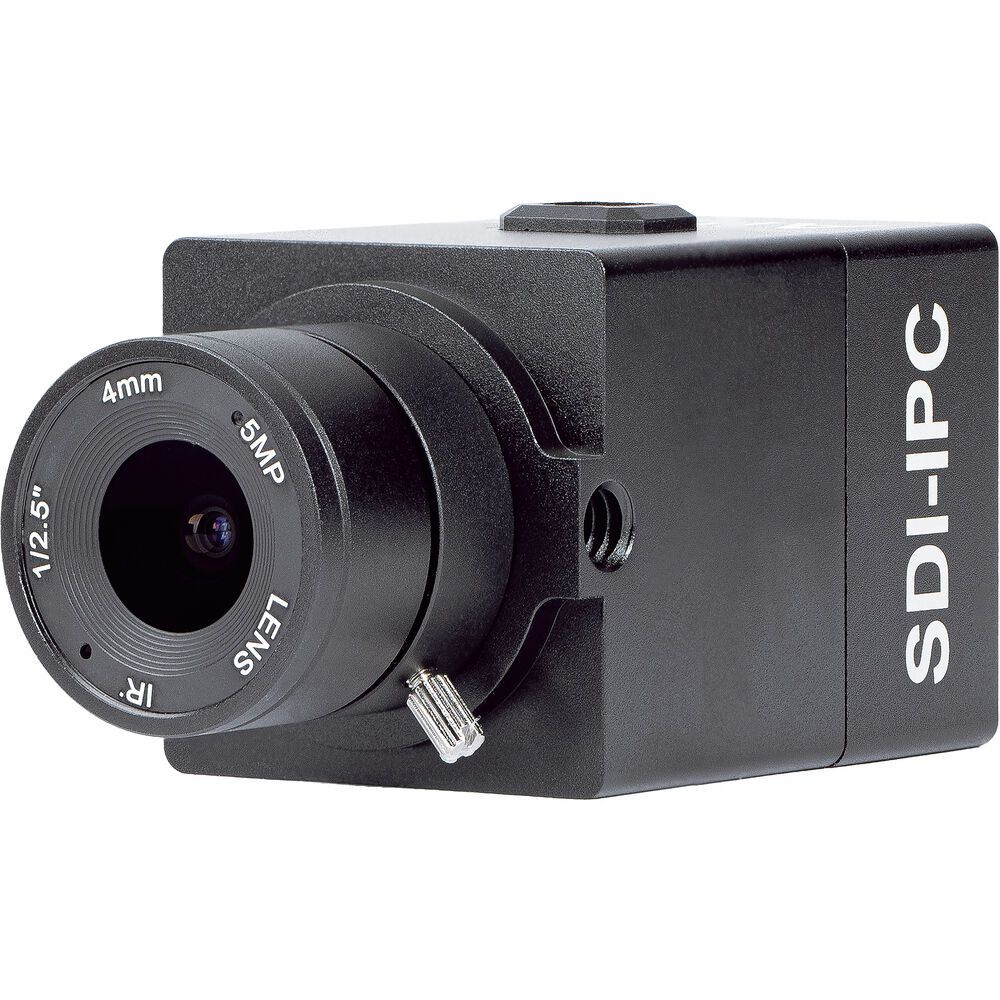

The HD3G-IPC-100A Full HD 3G-SDI POV Camera from AIDA Imaging boasts IP control with a signature compact design, affordable pricing, and exceptional image quality. The versatile camera utilizes a 1/2.8" Sony progressive CMOS sensor and a 4mm CS-mount lens that achieve an 80° angle of view and image resolutions up to 1080p60.
Full VISCA over IP control across any network eliminates the need for outdated RS-485 wiring. This camera is part of the AIDA Imaging SDI IPC series, which integrates seamlessly with both new and existing 3G-SDI setups, offering complete control over every aspect.
Features:
- 1/2.8" Sony Progressive CMOS Sensor
- Resolutions up to 1080p60
- 4mm CS-Mount Lens
- Full VISCA over IP Control
- 80° Field of View
Specifications:
| Image Sensor | 1/2.8" Sony Progressive CMOS Sensor (5.640 x 3.216 mm) |
| Effective Pixels (H x V) | 1920 x 1080 (Pixel Size: 2.9 μm Horizontal x 2.9 μm Vertical) |
| Resolution | 1080p, 1080i, 720p |
| Frame Rate | 1080p: 60/59.94/50/30/29.97/25/24, 1080i: 60/59.94/50, 720p: 60/59.94/50 |
| Color Spaces | 4:2:2 (YCbCr) 10-Bit |
| Minimum Illumination | 0.2 Lux (Day), 0.1 Lux (Night) |
| White Balance | Auto & Manual (9000 to 11,000K) |
| Lens | 4mm CS-Mount Lens |
| Field of View | 80° Field of View |
| Control Protocol | VISCA over IP |
| Video I/O | 1x BNC (3G-SDI) Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Line Input |
| Power Source | AC Adapter with Power Brick (Included), PoE (Included) |
| DC Input Power | 12 VDC |
| Power Consumption | 6 W |
| Mounting | Top: 1x 1/4"-20, Bottom: 1x 1/4"-20 |
| Color | Black |
| Operating Conditions | 14 to 122°F / -10 to 50°C |
| Dimensions | 3 x 2" / 7.6 x 5.1 cm |
