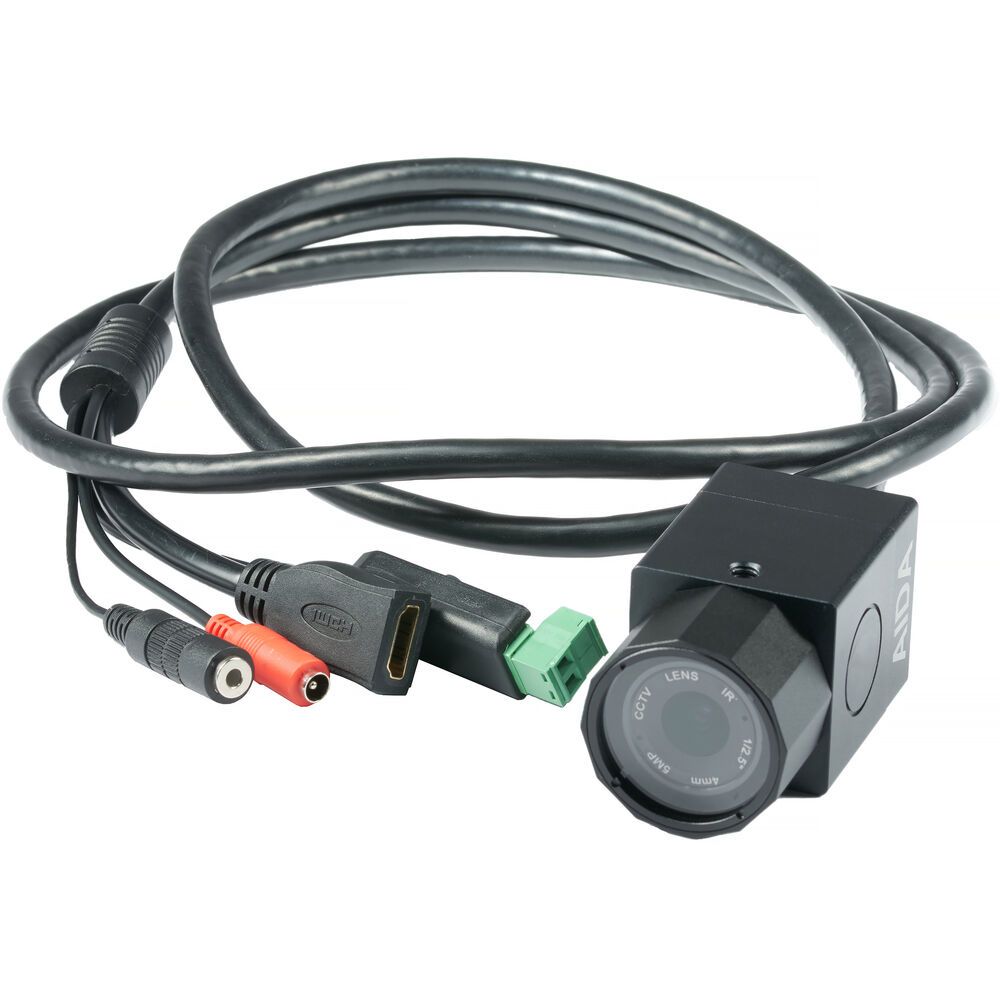

main product photo
Loading...
AIDA HD3G-IPC-MINI FHD 3G-SDI WITH IP CONTROL, LIPSTICK WEATHERPROOF IP67 POV CAMERA

AIDA HD3G-IPC-MINI FHD 3G-SDI WITH IP CONTROL, LIPSTICK WEATHERPROOF IP67 POV CAMERA

AIDA HD3G-IPC-TF FHD 3G-SDI WITH IP CONTROL, VARIFOCAL LENS 05-50MM WEATHERPROOF IP57 POV CAMERA

AIDA HD3G-IPC-TF FHD 3G-SDI WITH IP CONTROL, VARIFOCAL LENS 05-50MM WEATHERPROOF IP57 POV CAMERA

AIDA HD3G-IPC-IP67 FHD 3G-SDI WITH IP CONTROL WEATHERPROOF IP67 POV CAMERA

AIDA
SKU
AIDA-HD3G-IPC-IP67
MFR#
HD3G-IPC-IP67
$395.00
Availability: Out of stock
AIDA HD3G-IPC-IP67 FHD 3G-SDI WITH IP CONTROL WEATHERPROOF IP67 POV CAMERA
Be the first to review this product
Add to Wish List:

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

The HD3G-IPC-IP67 Full HD 3G-SDI POV Camera from AIDA Imaging boasts IP control with a signature compact design, affordable pricing, and exceptional image quality. The versatile camera utilizes a 1/2.8" Sony progressive CMOS sensor and a 4mm CS-mount lens that achieve an 80° angle of view and image resolutions up to 1080p60.

Full VISCA over IP control across any network eliminates the need for outdated RS-485 wiring. This camera is part of the AIDA Imaging SDI IPC series, which integrates seamlessly with both new and existing 3G-SDI setups, offering complete control over every aspect.

Your Rating
Features:
  • 1/2.8" Sony Progressive CMOS Sensor
  • Resolutions up to 1080p60
  • 4mm CS-Mount Lens
  • Full VISCA over IP Control
  • 80° Field of View

Specifications:

Image Sensor 1/2.8" Sony Progressive CMOS Sensor (5.640 x 3.216 mm)
Effective Pixels (H x V) 1920 x 1080 (Pixel Size: 2.9 μm Horizontal x 2.9 μm Vertical)
Resolution 1080p, 1080i, 720p
Frame Rate 1080p: 60/59.94/50/30/29.97/25/24, 1080i: 60/59.94/50, 720p: 60/59.94/50
Color Spaces 4:2:2 (YCbCr) 10-Bit
Minimum Illumination 0.2 Lux (Day), 0.1 Lux (Night)
White Balance Auto & Manual (9000 to 11,000K)
Lens 4mm CS-Mount Lens
Field of View 80° Field of View
Control Protocol VISCA over IP
Weatherproofing IP67
Video I/O 1x BNC (3G-SDI) Output
Audio I/O 1x 1/8" / 3.5 mm TRS Line Input
Power Source AC Adapter with Power Brick (Included), PoE (Included)
DC Input Power 12 VDC
Power Consumption 6 W
Mounting Top: 1x 1/4"-20, Bottom: 1x 1/4"-20
Color Black
Environmental Resistance Weather-Resistant (IP67)
Operating Conditions 14 to 122°F / -10 to 50°C
Cable Length 3' / 91.4 cm
Dimensions 2.7 x 1.7" / 6.8 x 4.3 cm
