AIDA M12-6.0F 6.0MM HD MEGAPIXEL M12 MOUNT LENS FOR AIDA HD-NDI-MINI
SKU
AIDA-M12-6.0F
MFR#
M12-6.0F
$30.00
Availability:
Out of stock

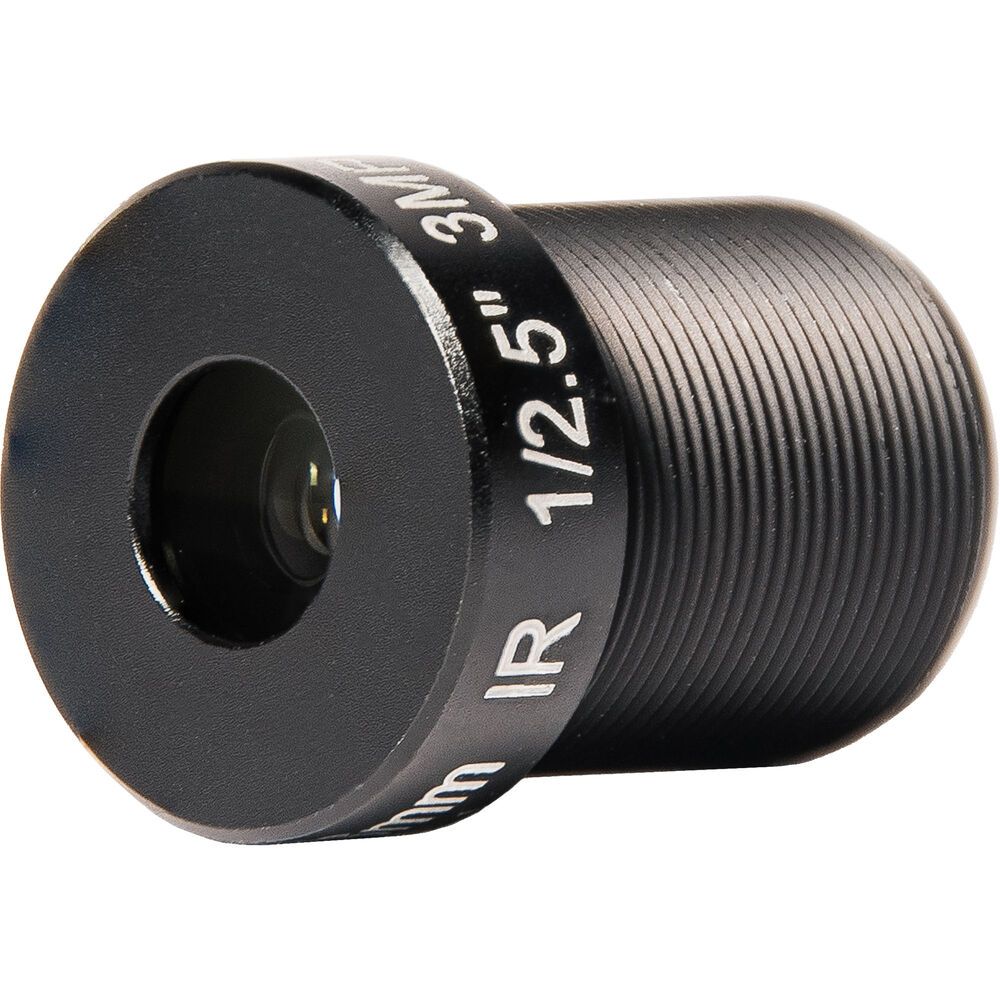

AIDA M12-6.0F 6.0MM HD MEGAPIXEL M12 MOUNT LENS FOR AIDA HD-NDI-MINI
AIDA Imaging offers this 6mm f/2.4 3MP M12 Lens for AIDA HD-NDI-MINI as an alternative to the HD-NDI-MINI's preinstalled 3.2mm fisheye lens. This 6mm lens provides a narrower 60° field of view when compared to the 3.2mm model; this tighter image helps to prevent distortion on the edges of the frame. These features extend the utility of the extremely compact camera from AIDA, making the most of its progressive CMOS sensor. While this lens has been designed specifically for use with the HD-NDI-MINI, it will also perform well with any camera equipped with an M12 lens mount and a 1/2.5" or smaller image sensor.
Features:
- For AIDA Imaging HD-NDI-MINI Camera
- 6mm Focal Length
- M12 Lens Mount
- f/2.4 Aperture
- IR Corrected
- 60° Horizontal Field of View
- Compatible with Other M12 Cameras
Specifications:
| Lens Mount |
M12
|
| Sensor Compatibility |
1/2.5", 1/3" (3 MP)
|
| Focal Length |
6mm
|
| Back Focal Length |
8.1mm
|
| Maximum Aperture |
f/2.4
|
| Angle of View |
1/2.5"-Type Sensor
Horizontal: 60° 1/3"-Type Sensor Horizontal: 52° |
| Working Distance |
Not Specified by Manufacturer
|
| Focus Type |
Manual Focus
|
| Iris Type |
Fixed
|
| Distortion |
-20%
|
| IR Corrected |
Yes
|
| Operating Conditions |
-4 to 140°F / -20 to 60°C
|
| Dimensions (ø x L) |
1.4 x 1.8" / 35.4 x 45.9 mm
|
| Weight |
0.1 oz / 2 g
|
