AIDA CCS-USB VISCA CAMERA CONTROL UNIT & SOFTWARE

AIDA CCS-USB VISCA CAMERA CONTROL UNIT & SOFTWARE

AIDA UHD6G-200 UHD 4K/30 6G-SDI EFP/POV CAMERA

AIDA UHD6G-200 UHD 4K/30 6G-SDI EFP/POV CAMERA

AIDA TGEN-6P 3G-SDI/HD-SDI TRI-LEVEL GENLOCK SYNC GENERATOR

AIDA
SKU
AIDA-TGEN-6P
MFR#
TGEN-6P
$975.00
Availability: Out of stock

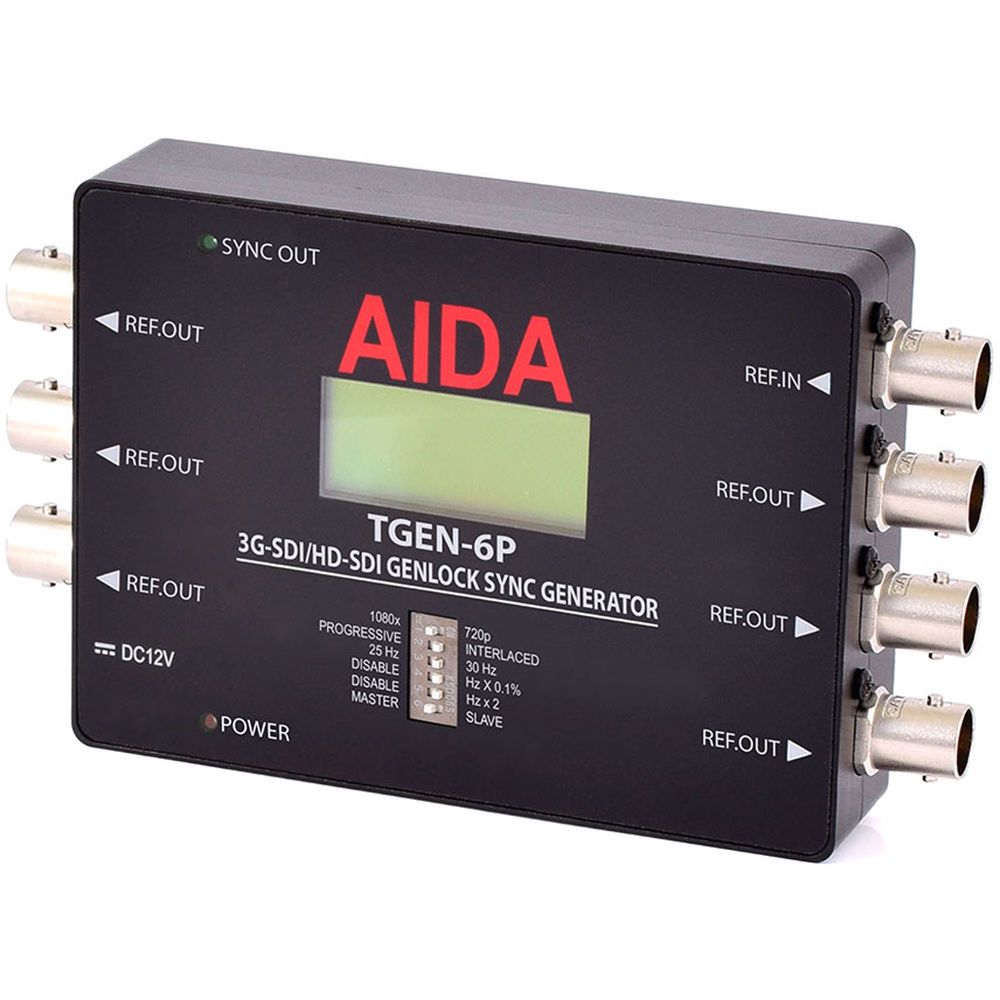

AIDA TGEN-6P 3G-SDI/HD-SDI TRI-LEVEL GENLOCK SYNC GENERATOR
Be the first to review this product
Add to Wish List:

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

Sync your video signals with the 3G-SDI/HD-SDI Tri-Level Genlock Sync Generator from AIDA Imaging. This genlock sync generator supports all 3G-SDI and HD-SDI signal formats up to 1080 60p, and complies with SMPTE 274M, 296M, and 424M standards to ensure compatibility with other reference devices. Designed for simple operation, it is equipped with dip switches and an LCD screen.

Your Rating

Features:

  • Genlock Sync
  • Supports 3G-SDI & HD-SDI up to 1080 60p
  • SMPTE 274M, 296M & 424M
  • Dip Switches
  • LCD Screen

Specifications:

Signal 3G/HD Tri-Level
Supported Formats 1080 60p/59.94p/50p/30p/29.97p/25p1080 60i/59.94i/50i720 60p/59.94p/50p/30p/29.97p/25p
Channels 6 Channels
Signal 3G/HD Tri-Level
Supported Formats 1080 60p/59.94p/50p/30p/29.97p/25p1080 60i/59.94i/50i720 60p/59.94p/50p/30p/29.97p/25p
Channels 1 Channel
SMPTE Standards Supported SMPTE 274, 296M, 424M
Synchronization Genlock: Tri-Level (Bi-Level SD Sync Not Supported)
Control Dip Switches and Text LCD
Power Source 9 to 15 VDC
Power Consumption 6 W at 12 VDC
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 5.11 x 2.95 x 1.10" / 130 x 75 x 28 mm
Weight 0.4 lb / 185 g
