AJA KONA-1-T-R0 SINGLE CHANNEL 3G/1.5G-SDI I/O TALL RS-422 PCIE 2.0 CARD

AJA
SKU
AJA-KONA-1
MFR#
KONA-1-T-R0
$825.00
Availability: Out of stock
AJA KONA-1-T-R0 SINGLE CHANNEL 3G/1.5G-SDI I/O TALL RS-422 PCIE 2.0 CARD
Be the first to review this product
Add to Wish List:

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

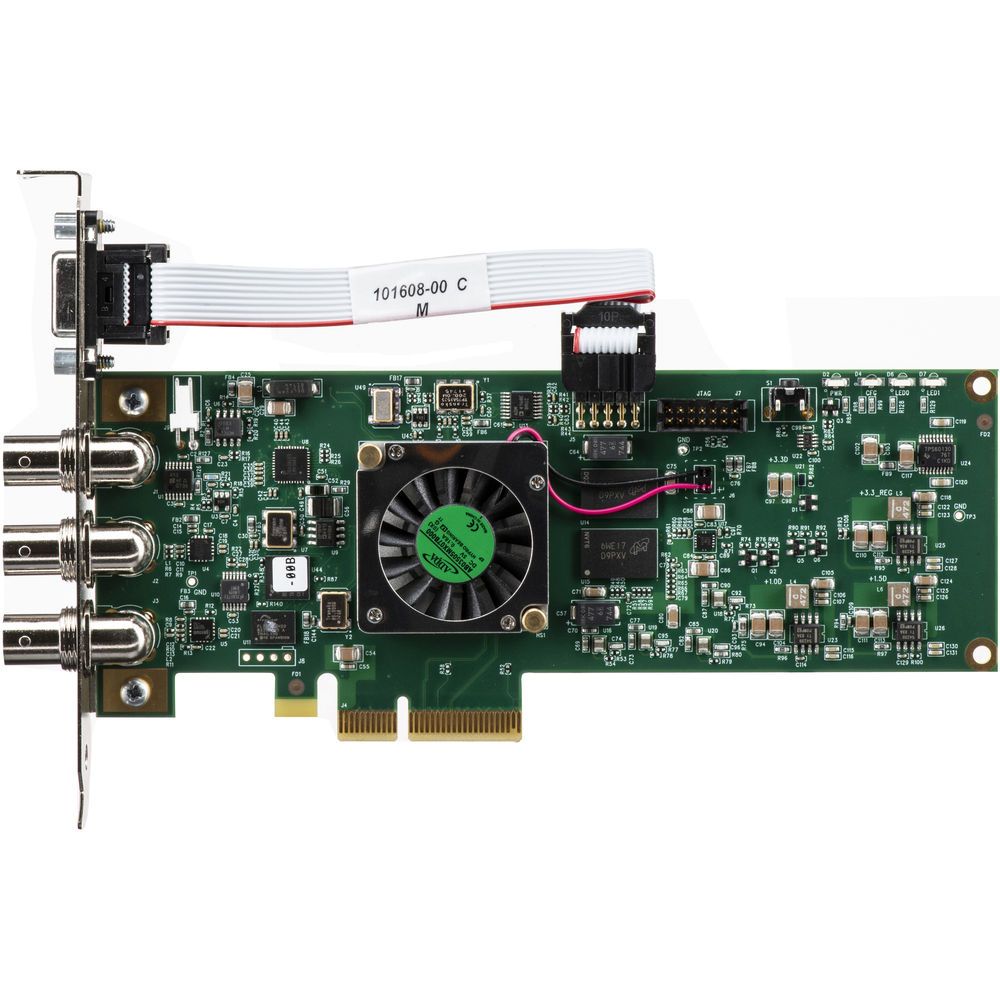

The AJA KONA 1-T is the tall, consumer version of the KONA 1 capture and playback card. It's Mac/Windows/Linux 2-lane PCIe 2.0-compatible and offers single-channel 3G-SDI 2K/HD 60p frame-accurate input/output and a selectable reference/LTC input. It also features an integrated, exposed 9-pin RS-422 control port (while the short version is designed for OEM developers and comes without this port). The KONA 1-T allows efficient capture, monitoring, and/or playback and also supports simultaneous monitoring during capture.

Your Rating

Features:

  • 1-Ch 3G-SDI 2K/HD 60p Capture & Playback
  • Tall Version with Integrated RS-422 Port
  • Selectable HD/SD Reference/LTC Input
  • Simultaneous Monitoring During Capture
  • Mac/Win/Linux 2-Lane PCIe 2.0 Compatible
  • 16-Ch Embedded Audio I/O, 24-bit/48 kHz
  • Full-Size BNC Ports
  • ANC Capture and Processing
  • 8-/10-Bit YCbCr and RGB

Specifications:

Video Formats
2048 x 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
2048 x 1080PsF at 23.98, 24, 25
1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080i at 50, 59.94, 60
1080PsF at 23.98, 24, 25, 29.97, 30
720p at 50, 59.94, 60
625i at 50
525i at 59.94
Video Inputs
1 x 3G-SDI on BNC, SMPTE-259/292/296/424, supports 16-channel 24-bit/48 kHz synchronous embedded audio
Output
1 x 3G-SDI on BNC, SMPTE-259/292/296/424, supports 16-channel 24-bit/48 kHz synchronous embedded audio
Reference/LTC Input
1 x 3G-SDI on BNC, analog color black or HD tri-level sync, LTC
Serial Control
1 x RS-422 9-pin D-connector

Pinout:
1 - GND
2 - RX-
3 - TX+
4 - GND
5 - No connection
6 - GND
7 - RX+
8 - TX-
9 - GND
Shell - GND
Interface
2-lane PCIe 2.0
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-40 to 140°F / -40 to 60°C
Relative Humidity
10-90% non-condensing
Operating Altitude
< 9850' / < 3000 m
Dimensions
0.9 x 7.4 x 4.8" / 2.2 x 18.8 x 12.1 cm
Weight
Approx. 0.3 lb / 135 g
