AJA OG-UDC 3G-SDI UP, DOWN, CROSS-CONVERSION, 2-CHANNEL UNBALANCED AUDIO OUTPUT, DASHBOARD SUPPORT

AJA
SKU
AJA-OG-UDC
MFR#
OG-UDC
$879.00
Availability: In stock

AJA OG-UDC 3G-SDI UP, DOWN, CROSS-CONVERSION, 2-CHANNEL UNBALANCED AUDIO OUTPUT, DASHBOARD SUPPORT

Be the first to review this product
Add to Wish List:

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

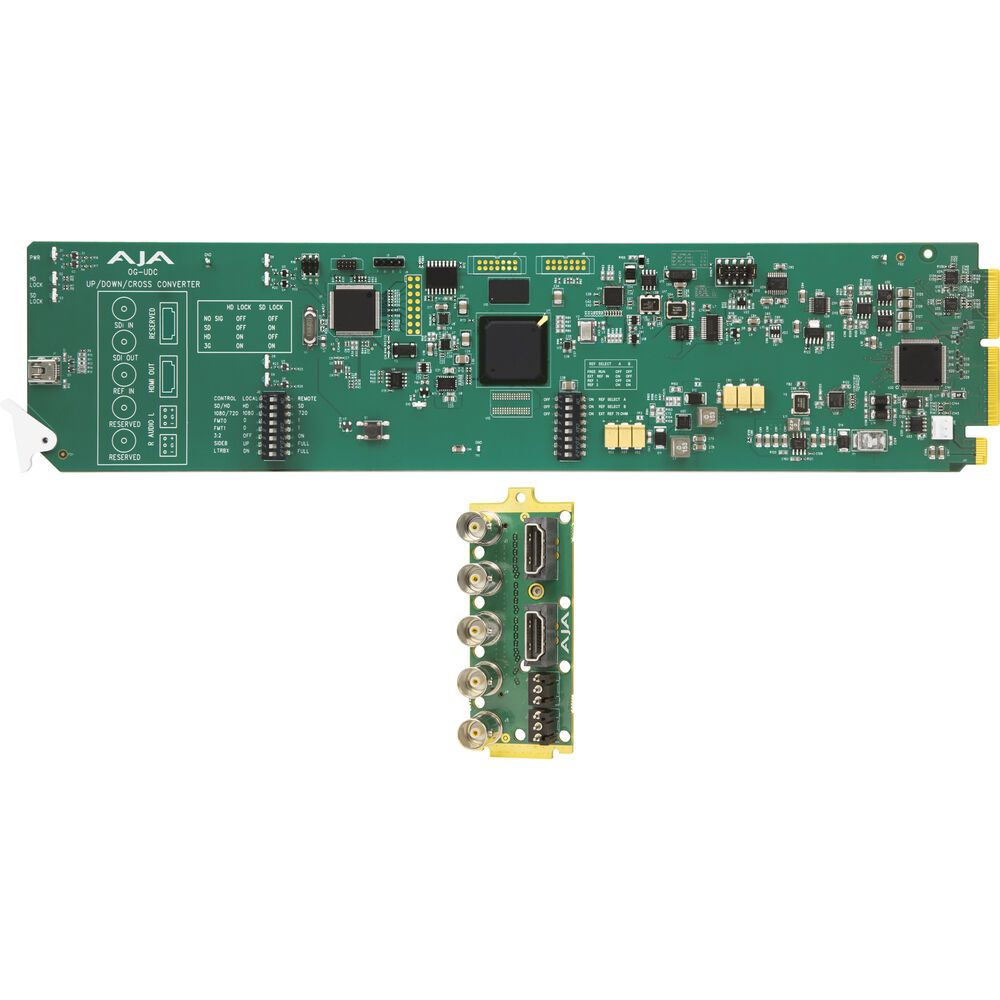

The OG-UDC 3G-SDI Up, Down, Cross-Converter Card with DashBoard Support from AJA is an openGear-compatible card that performs up, down, and cross-conversion on SD, HD, and 3G-SDI formats. Designed for use in 2 RU, high-density openGear frames, the OG-UDC is controlled by DashBoard network control software supported by Windows, macOS, and Linux operating systems.

The OG-UDC offers a 3G-SDI input and output, an HDMI output, and two 3-pin terminal block connectors for stereo analog audio output. Up to 16 channels of audio can be embedded on the 3G-SDI input and output, while the HDMI output can handle up to eight channels of embedded digital audio. AJA conversion technology ensures high image quality with resolutions up to 1080p50/60.

Please note: OG-UDC supports 3G-SDI Level A only. 3G-SDI Level B is not supported. OG-UDC passes through embedded audio ancillary data only. It does not pass through other types of embedded ancillary data.

Your Rating
Key Features
  • openGear-Compatible Card
  • Converts SD, HD, and 3G-SDI Formats
  • Supports 1080p50/60
  • DashBoard Network Control
  • 16-Channel Embedded SDI Audio
  • Includes Rear I/O Card

AJA OG-UDCSpecs

System Connection
Proprietary
Video Inputs
1x BNC (3G-SDI) Female
Audio Inputs
No
Video Outputs
1x BNC (3G-SDI) Female
1x HDMI (1.4) Female
Audio Outputs
2x Block 3-Pin Analog
Input Video Format
SDI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 56/59.94/60 fps
Output Video Format
HDMI / SDI (10-Bit)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Embedded Audio
SDI: 16-Channel
HDMI: 8-Channel
