BLACKMAGIC DESIGN ATEM MINI EXTREME ISO

SKU
BMD-SWATEMMINICEXTISO
$1,295.00
Availability: In stock
BLACKMAGIC DESIGN ATEM MINI EXTREME ISO

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

The Blackmagic Design ATEM SDI Extreme ISO Switcher is an 8-input live production switcher for live streaming. It features an integrated control panel and advanced broadcast features. In addition to live streaming using RTMP protocols, you can also output your program as if it was a webcam over USB. The switcher's ISO label means you can individually record each of the eight input videos as an MP4, as well as the program output via one of the USB-C ports. The switcher automatically generates a DaVinci Resolve project file, so you can clean it up and make changes later. This versatile switcher's eight independent 3G-SDI inputs accept all popular HD signals up to 1080p60. Each input has discrete frame rate and format converters, and it supports re-syncing for seamless switching between a variety of pro and consumer cameras, game consoles, and computer feeds.

Your Rating

ATEM Mini Extreme ISO Features

  • 8-Channel HDMI Live Streaming Switcher
  • Supports up to 1080p60
  • RTMP Streaming via Ethernet or USB-C
  • Record Program Out and Individual Inputs
  • 11-Input, 2-Channel Audio Mixer
  • Input Frame Rate and Format Converter
  • Re-Sync on All HDMI Inputs
  • HD Multiview Output with up to 16 Views
  • Local and Software Switching
  • 4 x Upstream, 2 x Downstream Keyers

General

Available M/E Layers 9 M/E
Effect Types 2 x DVE
4 x Luma Key
4 x Chroma Key
Graphics Memory 20 Images
Downstream Keys 2 x Chroma, Luma, DVE
Generators 5 x Pattern
2 x Color
Audio Mixing 2-Channel Mixing
Switching Type Pushbutton, Software
Processing Resolution 1080p

Input / Output

Number of Video Input Sources 8
Video Inputs 8 x HDMI
Input Video Format HDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Audio Inputs 2 x 1/8" / 3.5 mm TRS Stereo Analog Female
Input Audio Format Analog
Embedded Audio Input HDMI: 2-Channel (per Input)
Video Output Channels 2
Video Outputs 2 x HDMI
Output Video Format HDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Outputs 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female
Embedded Audio Output HDMI: 2-Channel
Multiview Output 16-Way Multiview viaHDMI

Connectivity / Hardware

Other I/O 1 x RJ45
2 x USB-C
HDCP Support None
IP Video H.264:
1920 x 1080 Encoding
Transport Protocols RTMP
Simultaneous Streams 1 Streams
Recording Modes 1920 x 1080p up to 60 fps (MP4)
OS Compatibility macOS 10.15
macOS 11.1 or Later
Windows 10
*As of February, 2021: Check with manufacturer for the most up-to-date compatibility
Wi-Fi None
Bluetooth None
Power I/O 1 x Barrel (12 VDC) Input
Power Consumption Device: 36 W

Environmental

Operating Temperature 41 to 104°F / 5 to 40°C
Storage Temperature 14 to 140°F / -10 to 60°C
Operating Humidity 0 to 70%
Dimensions 14.56 x 5.37 x 1.56" / 36.98 x 13.64 x 3.96 cm
Weight 2.72 lb / 1.23 kg

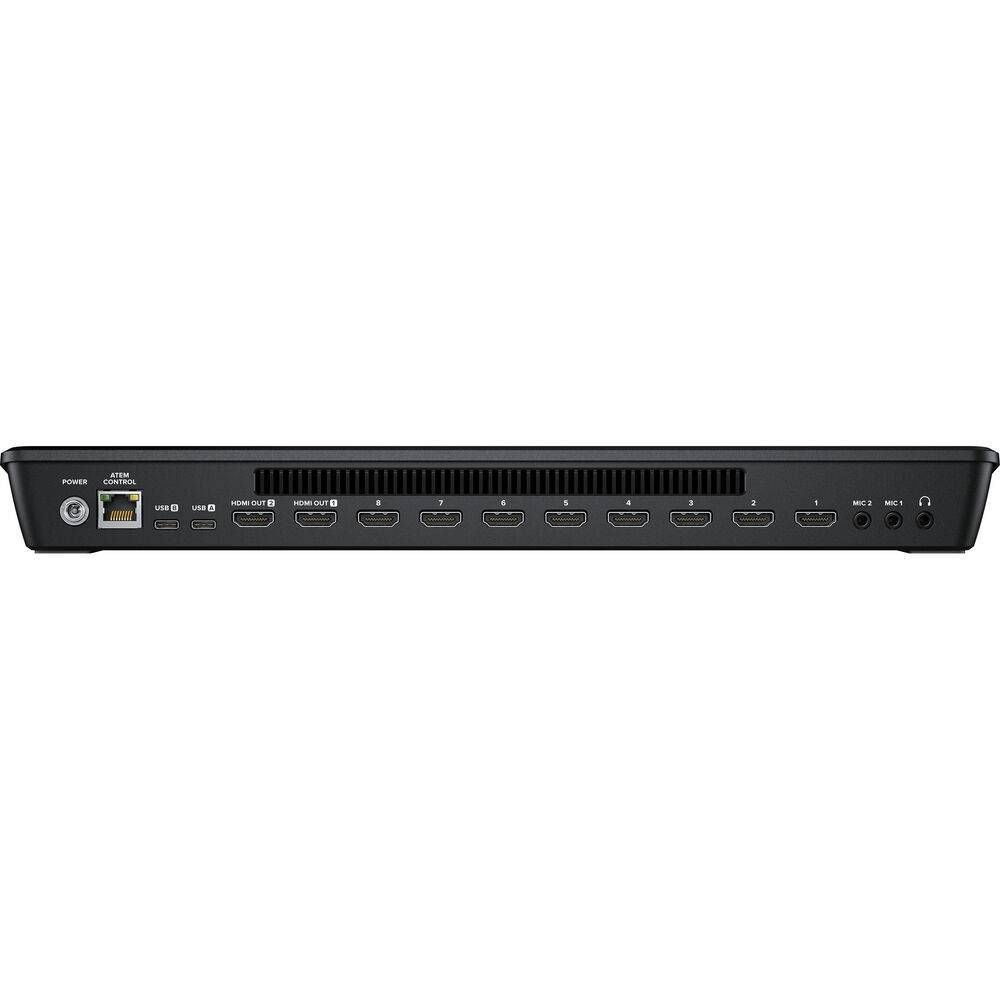

main product photo
