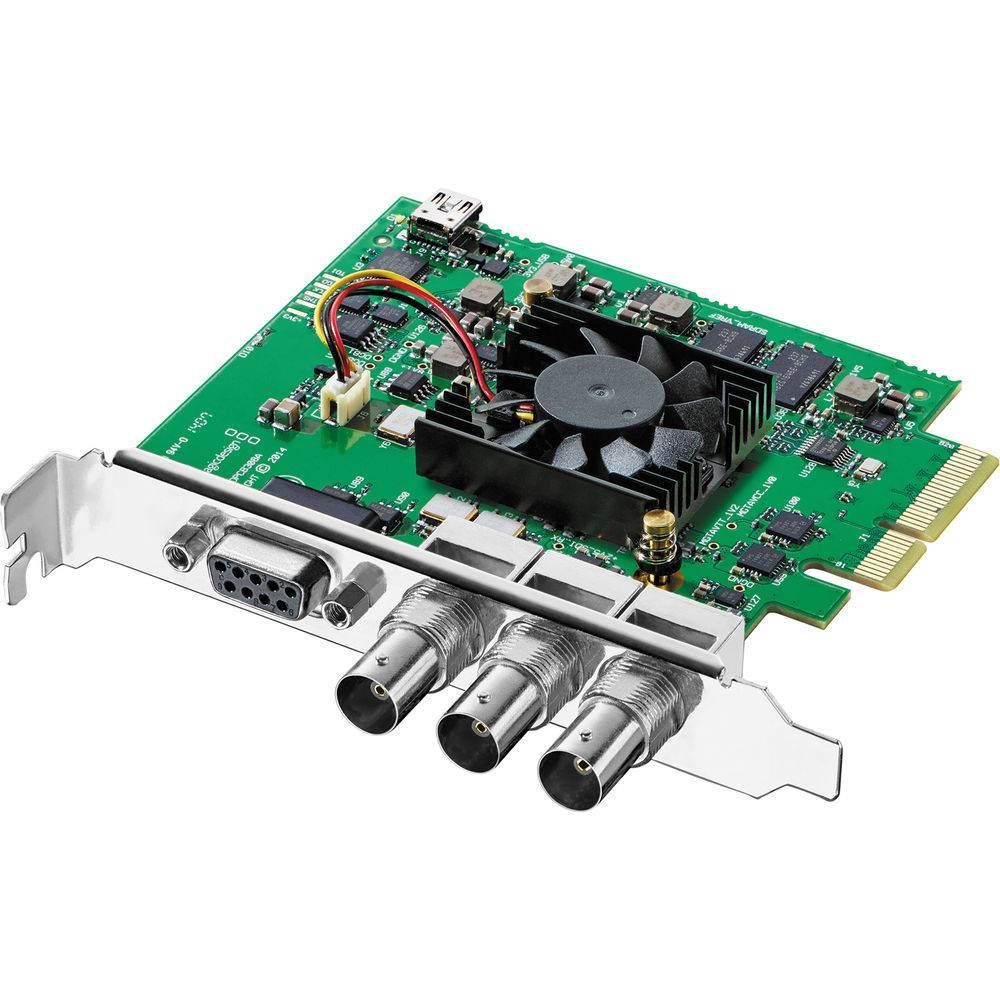

DeckLink SDI 4K is perfect when you need an SDI only solution but demand the highest quality SDI capture and playback. You get incredible quality 6G-SDI on any PCI Express Mac, Windows or Linux computer. DeckLink SDI 4K is the world’s smallest and most affordable multi rate SD/HD and Ultra HD SDI video card that lets you connect to any SD, HD-SDI, 2K and Ultra HD equipment. You also get RS-422 deck control, internal keying and reference input for a complete solution for editing, paint, design and more.
SDI Specs
System Connection | PCIe 1.0 x1 |
Video Inputs | 1 x BNC (6G-SDI) |
Input Video Format | SDI (10-Bit 4:4:4/4:2:2) 576i / 625 lines at 50 fps 480i / 525 lines 59.94 fps 720p 50/59.94/60 fps 1080p 23.98/24/25/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30 fps DCI 4K 23.98/24/25 fps DCI 2K 23.98/24/25 fps |
Video Outputs | 1 x BNC (6G-SDI) |
Output Video Format | SDI (10-Bit 4:4:4/4:2:2) 576i / 625 lines at 50 fps 480i / 525 lines 59.94 fps 720p 50/59.94/60 fps 1080p 23.98/24/25/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30 fps DCI 4K 23.98/24/25 fps DCI 2K 23.98/24/25 fps |
Standards
Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M/ST-2081 ITU -R BT.601/BT.656 |
HDCP Support | None |
HDR Compatibility | Not Specified by Manufacturer |
Environmental
Operating Temperature | 37 to 72°F / 5 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
General
Certifications | C-Tick, CE, FCC *as per Manufacturer |
Dimensions | 3.75" / 9.53 cm |
Weight | 4.5 oz / 128 g |
