BLACKMAGIC DESIGN BMD-HYPERD/ST/DG4P HYPERDECK STUDIO 4K PRO 0525
SKU
BMD-HYPERD/ST/DG4P
MFR#
BMD-HYPERD/ST/DG4P
$1,755.00
Availability:
Out of stock

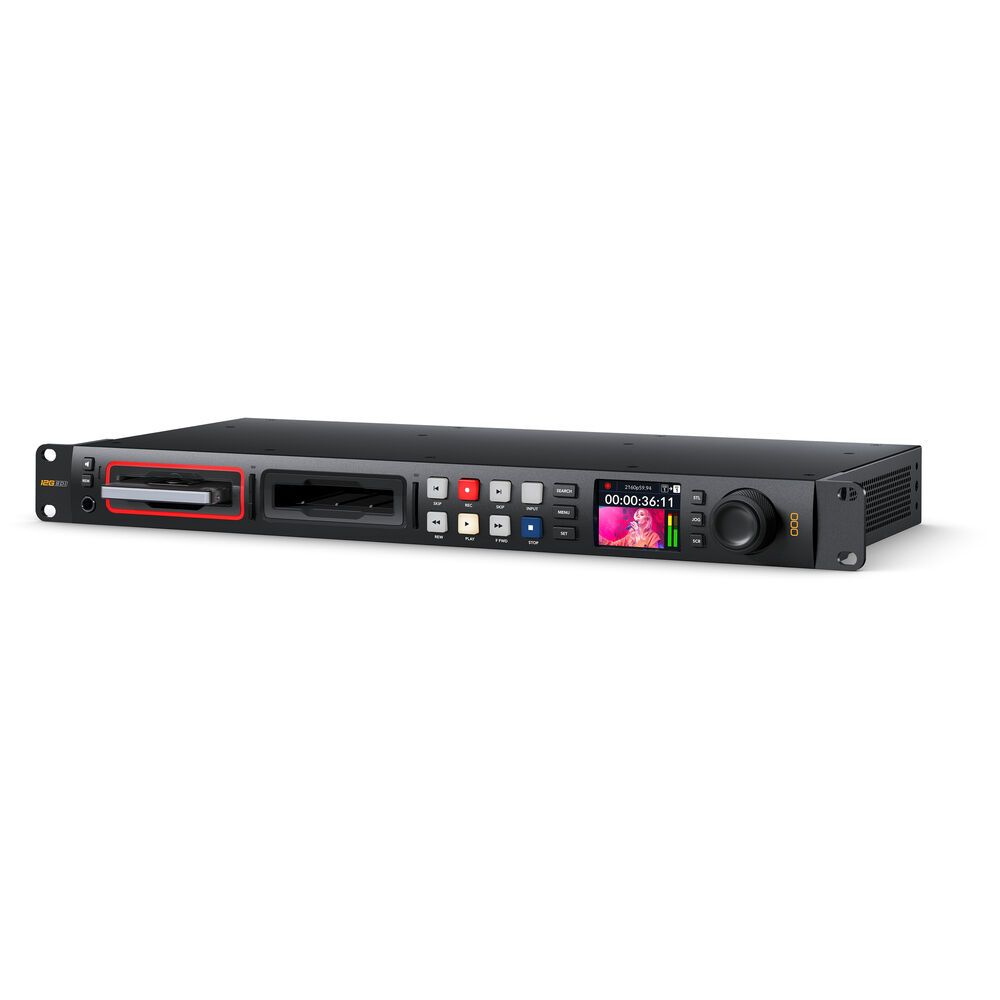

BLACKMAGIC DESIGN BMD-HYPERD/ST/DG4P HYPERDECK STUDIO 4K PRO
The Blackmagic Design HyperDeck Studio 4K Pro is an updated 1 RU file-based deck that features the same functionality and control of professional tape decks in a digital design. This model updates the previous HyperDeck Studio models with several features including 12G-SDI support, two added SD card slots, USB-C recording output, timecode input and output, Ref input and output, a redesigned jog/shuttle wheel, 10G Ethernet, and a speaker on the front.
The Studio 4K Pro records video with 10-bit 4:2:2 color using either ProRes or DNxHD codecs, as well as the H.264 and H.265 compression formats. With two SSD slots and two SD card slots, you can record almost endlessly as one SSD becomes full, recording automatically continues on to the other, and the SD card slots are also hot-swappable. The Studio 4K Pro features one 12G-SDI input, two 12G-SDI outputs, a loop-through 12G-SDI output, a dedicated SDI monitor output, and there's also one HDMI input and one HDMI output that can all output up to DCI 4K. The 4K Pro can even play ProRes 4444 files in true UHD for fill and key outputs. The ports autodetect the signal and will adjust to the SD, HD, 6G-SDI, or 12G-SDI format input. The 3-pin XLR timecode input and output allow you to sync timecode with other devices, and it also allows you to daisy-chain with other devices to create a timecode sync chain.
Features:
- 1 RU File-Based Video Recorder
- H.264/H.265 10-Bit 4:2:2 Video
- Records Compressed in ProRes / DNxHD
- 1 x 12G-SDI Input, 2 x 12G-SDI Outputs
- 2 x 2.5" SSD Slots & 2 x SD Card Slots
- 1 x HDMI Input, 1 HDMI Output
- 1 x SDI Loop Output, 1 x USB-C Out
- Speaker, Remote, 10G Ethernet Port
- Front-Panel Buttons, Jog Wheel, LCD
- Timecode, Reference & RS-422 In/Out
Specifications:
| Display Size |
2.2" LCD
|
| Format Support |
DCI/UHD 4K 2160p: 30/29.97/25/24/23.98
2K 1440p: 30/29.97/25/24/23.98 1080p: 60/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 NTSC/PAL 525i 59.94 625i 50 480p60 and 576p50 via HDMI Only |
| USB I/O |
1 x USB-C 3.1/3.2 Gen 2 Female Output
|
| Video I/O |
1x BNC (12G-SDI) Input
2x BNC (12G-SDI) Output 2x BNC (3G-SDI) Loop Output 1x HDMI 2.0 Input 1x HDMI 2.0 Output |
| Audio I/O |
1x 1/4" Headphone Output
|
| Network |
1 x RJ45, 10 Gb/s
|
| Supported Operating Systems |
macOS 10.15 Catalina
macOS 11.1 Big Sur or Later Windows 10, 64-Bit |
| Media Slots |
2 x 2.5" SSD
2 x SD Card |
| Embedded Audio |
Input:
16 x Channels SDI 8 x Channels HDMI Output: 8 x Channels SDI 8 x Channels HDMI |
| Codecs Supported |
ProRes HQ QuickTime
ProRes 422 QuickTime ProRes LT QuickTime ProRes Proxy QuickTime for all Formats up to 2160p30 ProRes 4444 QuickTime up to 1080p60 with Auto Routing of Fill and Key over SDI A and B Outputs (Playback Only) DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD Formats up to 60 fps DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p Formats up to 30 fps H.265 SDI 4:2:2 10-Bit, H.265 High 4:2:0 10-Bit, H.265 Medium 4:2:0 10-Bit, H.265 Low 4:2:0 10-Bit for all 2160p Formats up to 60 fps H.264 SDI 4:2:2 10-Bit, H.264 High 4:2:0 8-Bit, H.264 Medium 4:2:0 8-Bit, H.264 Low 4:2:0 8-Bit for all Progressive formats up to 1080p60 |
| Color Precision |
10-Bit
|
| Color Space |
Rec. 601, Rec. 709, Rec. 2020
3D LUTS can be Applied to SDI Monitor Out |
| Device Control |
1 x RS-422 Input
1 x RS-422 Output |
| HDR Support |
Hybrid Log Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
|
| Multiple Rate Support |
Autodetection of SD, HD, 6G-SDI, and 12G-SDI
|
| Rack Size |
1 RU
|
| Reference Input |
1 x BNC
|
| Reference Output |
1 x BNC
|
| SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2084, and SMPTE 2108-1
|
| SDI Metadata Support |
HD RP188 and closed captioning CEA-708
HDR Metadata Supported on SDI |
| SSD Interface |
2 x 2.5" SATA III 6 Gb/s
|
| Sampling |
Video: 4:2:2 YUV
Audio: 24-Bit, 48 kHz |
| Speaker |
Mono
|
| Timecode |
1 x XLR (Input)
1 x XLR (Output) |
| Power Source |
AC Input
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
12 VDC
|
| Power Consumption |
100 W (Maximum)
|
| Power Input Connection |
4-Pin XLR Input
|
