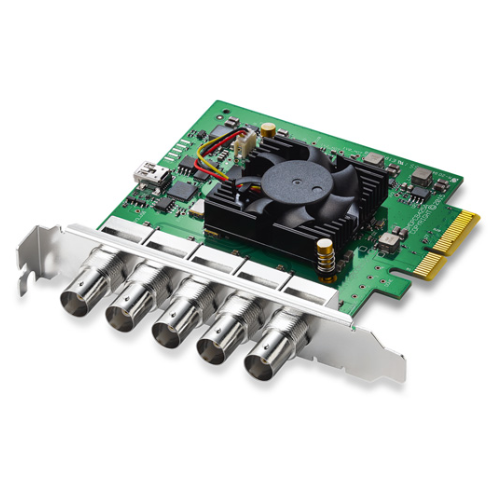

Duo 2 is a PCI Express capture and playback card that supports SDI formats in SD and HD up to 1080p60! You get the flexibility of 4 separate capture or playback cards in one! Plus, it’s completely customizable so it’s perfect for media play-out systems, multi-screen digital signage servers, real-time multi-channel capture systems and more!
Specifications
Connections
SDI Video Inputs | 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output. |
SDI Video Outputs | 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output. |
SDI Audio Inputs | 16 channels embedded in SD and HD. |
SDI Audio Outputs | 16 channels embedded in SD and HD. |
Sync Input | Tri-Sync or Black Burst. |
Computer Interface | PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots. |
Supported Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10‑bit 4:4:4 |
Software
Software Included | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
Internal Software Upgrade | Firmware built into software driver. Loaded at system start or via updater software. |
Physical Installation | PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements. |
Video Standards
SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601. |
SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning. |
Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
SDI Color Precision | 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback. |
SDI Video Sampling | 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback. |
Color Space | REC 601, REC 709, REC 2020 |
HDR Support | HDR static metadata packing, HLG and PQ transfer characteristics. |
Processing
Colorspace Conversion | Hardware based real time. |
HD Down Conversion | Built in, high quality software down converter on playback and capture. Down converted SD selectable between letterbox and anamorphic 16:9 styles. |
HD Up Conversion | Built in, high quality software up converter from SD to 720HD or 1080HD on input. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom. |
Environmental Specifications
Operating Temperature | 5° to 40 ° C (32° to 104° F) |
Storage Temperature | -20° to 45° C (-4° to 113° F) |
