BLACKMAGIC DESIGN BMD-BDLKMINIMON4K DECKLINK MINI MONITOR 4K - LOW PROFILE PCIE PLAYBACK CARD, 6G-SDI, HDMI 2.0a, 2160p30, HDR
SKU
BMD-BDLKMINIMON4K
MFR#
BMD-BDLKMINIMON4K
$195.00
Availability:
Out of stock

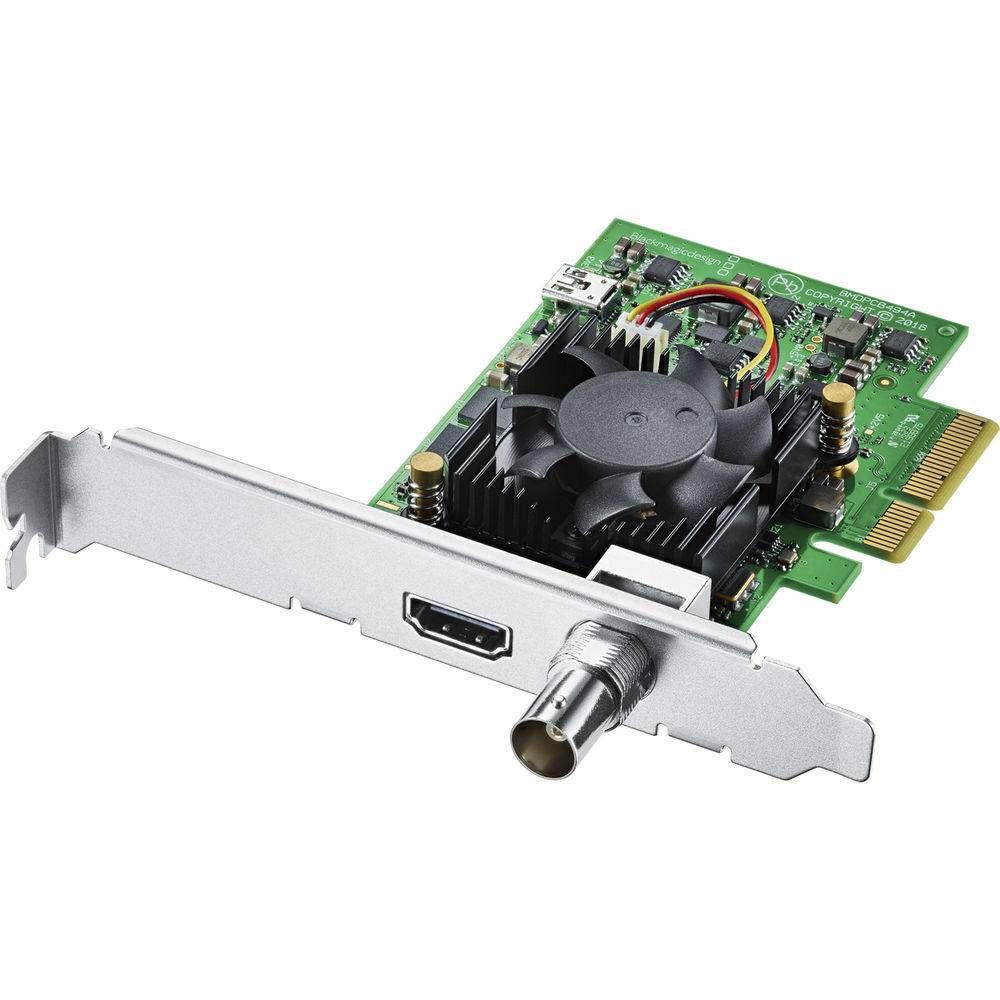

BLACKMAGIC DESIGN DECKLINK MINI MONITOR 4K
DeckLink Mini Monitor 4K is a low profile PCI Express playback card, featuring 6G-SDI and the latest HDMI 2.0a connections so you can monitor all formats up to 2160p30 from your computer! The SDI and HDMI outputs let you connect to any television or monitor and automatically detect and switch between all video formats. You even get high dynamic range playback and metadata over HDMI. You can even develop your own custom playback solutions using the Blackmagic Desktop Video SDK for Mac OS, Windows and Linux! Includes two PCI Express shields for both full height and low profile slots.
Connections
| SDI Video Outputs | 1 x 10 bit SD/HD/Ultra HD switchable. |
| SDI Audio Outputs | 16 channels embedded in SD, HD, Ultra HD. |
| HDMI Video Outputs | 1 x HDMI 2.0a connector. |
| HDMI Audio Outputs | 2 Channels of professional balanced analog audio via XLR connectors. |
| Computer Interface | PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots. |
| Supported Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2. |
Software
| Software Included | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
| Internal Software Upgrade | Firmware built into software driver. Loaded at system start or via updater software. |
| Physical Installation | PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements. |
Video Standards
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards (SDI Only) | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI F25PsF |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K DCI Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p. |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601. |
| SDI Metadata Support |
RP 188/SMPTE 12M-2 and closed captioning. |
| Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| SDI Color Precision | 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p60, and 8, 10-bit YUV 4:2:2 in all modes. |
| SDI Video Sampling | 4:4:4 & 4:2:2 |
| Color Space | REC 601, REC 709, REC 2020. |
| SDI HDR Support | HDR static metadata packing, HLG and PQ transfer characteristics. |
| HDMI Video Sampling | 4:4:4, 4:2:2 & 4:2:0 |
| HDMI Configuration | HDMI 2.0a supports Deep Color and HDR. Automatically configures to connected display. |
| HDMI Resolution | Pixel for pixel HD resolution output to connected device. |
| HDMI Color Precision | Up to 12-bit (Deep Color) |
| HDMI HDR Support | HDR static metadata packing, HLG and PQ transfer characteristics. |
| Multiple Rate Support | HDMI and SDI video connections are switchable between SD/HD/2K and 4K. |
Processing
| HD to SD Down Conversion | Software based down conversion during video playback. |
| HD Cross Conversion | Software based cross conversion from 720p to 1080HD on playback. |
| Real Time Effects | DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. |
| Colorspace Conversion | Hardware based real time. |
Environmental Specifications
| Operating Temperature: | 5° to 40° C (32° to 104° F) |
| Storage Temperature: | -20° to 45° C (-4° to 113° F) |
| Relative Humidity: | 0% to 90% non-condensing |
