BLACKMAGIC DESIGN MINI CONVERTER - SDI TO ANALOG 4K
SKU
BMD-CONVMASA4K
$325.00
Availability:
In stock

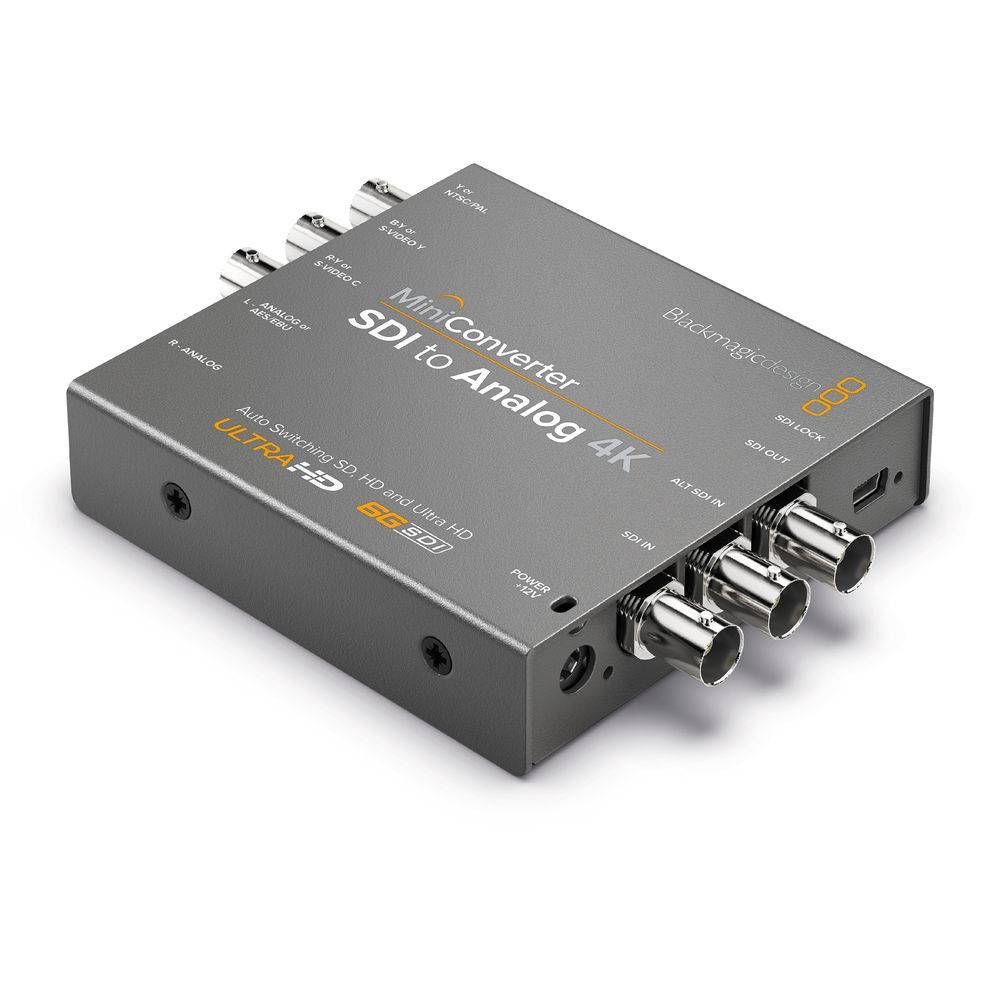

BLACKMAGIC DESIGN MINI CONVERTER - SDI TO ANALOG 4K
The Mini Converter SDI to Analog 4K from Blackmagic Design allows you to convert Single Link SD/HD/3G/6G-SDI to analog SD/HD component, composite, or S-Video. The down-converter lets you to connect professional SDI equipment which outputs resolutions up to Ultra HD 4K (3840 x 2160) and DCI 4K (4096 x 2160) with SD and HD analog video monitors and other equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.
Mini Converter SDI to Analog 4K Features
- Single Link SD/HD/3G/6G-SDI Input
- Component, Composite, & S-Video Output
- SD, HD, UHD 4K & DCI 4K Input Signals
- Automatic Input Signal Detection
- Redundant SDI Input & Looped SDI Output
- Analog & AES-EBU Digital Audio Outputs
- 24-bit, 48 kHz Audio
- Control via DIP Switches or Software
- USB 2.0 Port for Firmware Updates
- 12V Universal Power Supply Included
- 4:2:2 Sampling and color precision
- 24-bit, 48 kHz audio sampling
General
| Video Input | 1 x 6G-SDI 1 x 6G-SDI redundant input |
| Video Output | 3 x BNC connectors Analog SD/HD component, NTSC/PAL composite, and S-Video |
| Multi-Rate Support | Auto detection of SD, HD, or 6G SDI signals |
| Reclocking | Yes |
| Audio Input | Embedded audio from SDI input |
| Audio Output | 2 x 1/4" jack, 2 channels of analog or AES/EBU digital audio |
| Format Support | SD: NTSC 525/29.97 and 525/23.98 PAL 625/25 HD: 720p 59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/60 2K: 2048x1080PsF 23.98/24/25 2048/1080p 23.98/24/25 UHD/4K 3840x2160p 23.98/24/25/29.97/30 4096x2160p 24 |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, and ITU-R BT.601 |
| SDI Video Rates | Switchable between SD, HD, 3G, and 6G SDI |
| SDI Video Sampling | 4:2:2 |
| SDI Audio Sampling | 24-bit, 48 kHz |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV |
| SDI Auto Switching | Automatically detects SD, HD, 3G, or 6G-SDI |
| Analog Format Support | SD: NTSC 525/23.98 and 525/29.97 PAL 625/25 HD: 720p 50/59.94/60 1080i 50/59.94/60 1080p 23.98/24/25/29.97/30 |
| Analog Color Precision | 4:2:2 |
| HDMI Color Space | YUV |
| Format Conversion | HD down conversion |
| Settings Control | DIP switches or USB software for Mac PS X and Windows |
| Firmware Upgradeable | Via USB 2.0 |
| Power Supply | 12 VDC |
| Power Consumption | 8.04 W |
| Operational Voltage Range | 12 VDC |
| Operating Temperature | 32 to 104° F (0 to 40 ° C) |
| Storage Temperature | -4 to 113° F (-20 to 45 ° C) |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions | 4.84 x 3.63 x 0.90" (12.29 x 9.22 x 2.29 cm) |
| Weight | 10.68 oz (302.77 g) |
