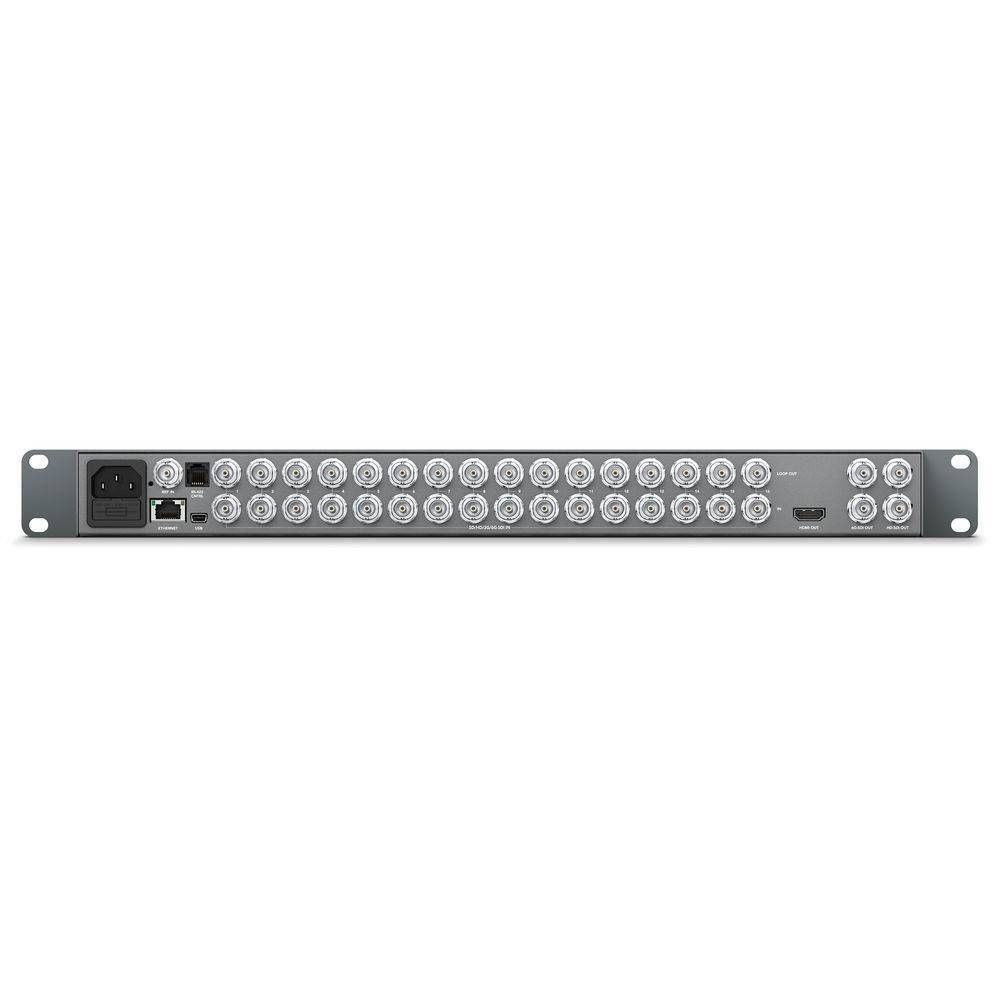

BLACKMAGIC DESIGN MULTIVIEW 16
SKU
BMD-HDL-MULTIP6G/16
$1,575.00
Availability:
In stock
BLACKMAGIC DESIGN MULTIVIEW 16
The Blackmagic Design MultiView 16 features sixteen 10-bit 6G-SDI inputs that let you monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs. This lets you take advantage of the high-resolution displays to view each source with increased clarity. The MultiView 16 allows for 4, 9, or 19 views to be selected, with each input fully re-synchronized. Two HD-SDI, two 6G-SDI, and one HDMI multi-view outputs are provided as well as a loop output for each 6G-SDI input for passing the signals to additional devices.
MultiView 16 Features
- 16 x 6G-SDI Inputs with Loop Outputs
- 1 x HDMI, 4 x SDI Multiview Outputs
- Supports SD, HD, Ultra HD 4K, DCI 4K
- 2 x 2, 3 x 3, 4 x 4 Multiview Grids
- Built-In LCD with Spin Knob Control
- Push Buttons on Front Panel
- Ethernet for Remote Control
- 1 RU Machined Aluminum Chassis
- Built-In Multi-Voltage Power Supply
General
| Input | 16 x BNC (3G-SDI / 6G-SDI / HD-SDI) |
| Embedded Audio | SDI |
| Output | 16 x BNC (6G-SDI / HD-SDI / SD-SDI, Looping) 2 x BNC (6G-SDI) 2 x BNC (HD-SDI) 1 x HDMI |
| Other I/O | 1 x RJ45 (RS-422) 1 x RJ45 (10/100 Mbps Ethernet) 1 x Mini-USB 2.0 |
| Video Standard Compliance | SMPTE 259M/292M/296M/425M-B ITU -R BT.601/BT.656 |
| Reclocking | Yes |
| HDR Compatibility | None |
| HDCP Support | Yes |
| EDID Support | Yes |
| Video Format | SDI (10-Bit 4:2:2 RGB, YUV) DCI 4K: 24 fps UHD 4K: 23.98/24/25/29.97/30 fps DCI 2KPsF: 23.98/24/25 fps DCI 2K: 23.98/24/25 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 59.94 fps PAL: 50 fps |
| Maximum Sampling Rate | 48 kHz / 24-Bit |
| Maximum Data Rate | 6 Gb/s |
| OS Compatibility | macOS 10.15 to 11.1 or Later Windows 10 (64-Bit Only) *As of August, 2022: Check with manufacturer for the most up-to-date compatibility |
| Power Connector | 1 x IEC C14 Input |
| Power Consumption | 90 to 240 VAC (45 W) |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
| Rack Form Factor | 1 RU |
| Certifications | FCC Class A *as per Manufacturer |
| Maximum Multiple Display Configuration | 4 x 4 |
| Material of Construction | Metal |
| Dimensions | 19.0 x 6.0 x 1.7" / 482.6 x 152.4 x 43.2 mm |
| Weight | 5.07 lb / 2.3 kg |
