BLACKMAGIC DESIGN MULTIVIEW 4 HD
SKU
BMD-HDL-MULTIP3G/04HD
MFR#
BMD-HDL-MULTIP3G/04HD
$199.00
Availability:
Out of stock

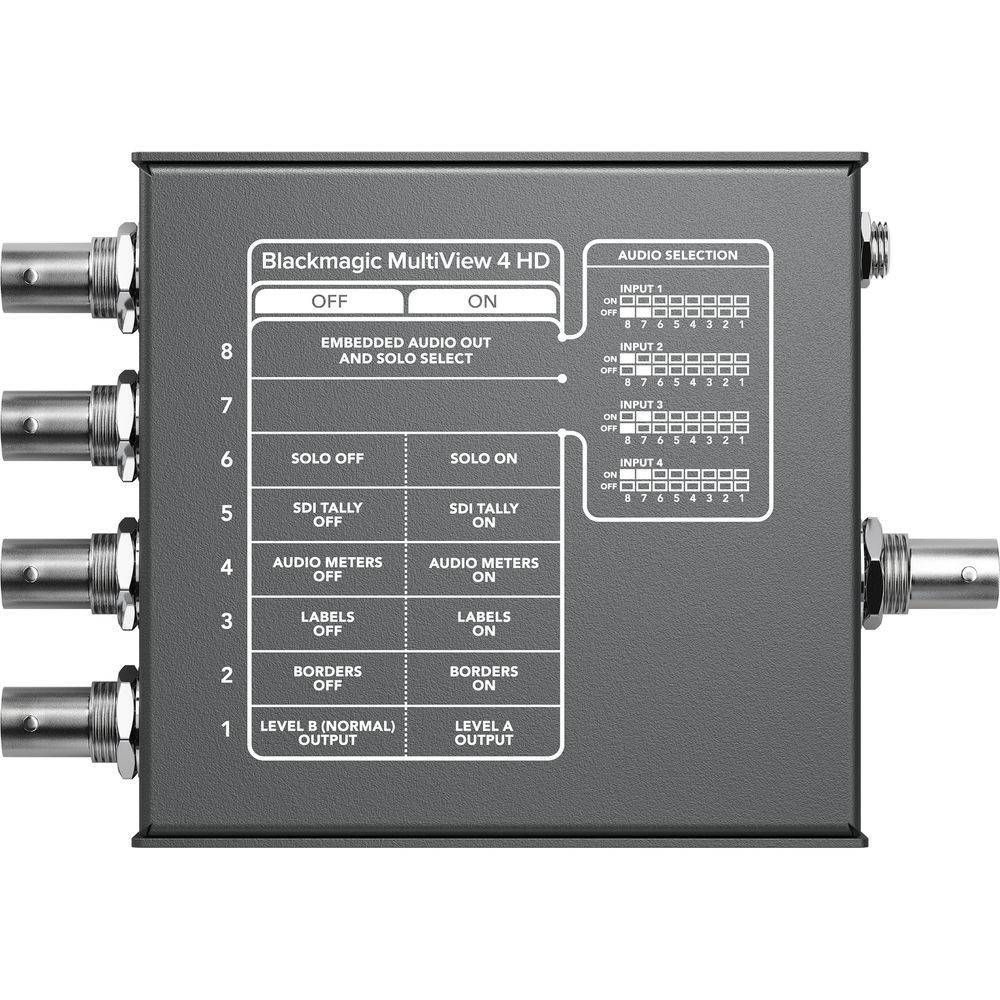

BLACKMAGIC DESIGN MULTIVIEW 4 HD
The Blackmagic Design MultiView 4 HD is a compact mini-converter that enables you to display up to four separate SDI streams via its HDMI or 10-bit SDI multiview outputs. This unit supports SD/HD/3G-SDI formats, and features automatic signal detection, SDI re-clocking, and monitor EDID support.
Each view can display custom overlays like labels and audio meters, and the integrated USB 2.0 interface can be used for updates. The MultiView 4 HD's metal housing measures approximately 5.3 x 3.6", and it includes a power supply with international adapters.
MultiView 4 HD Features
- 4 x SD/HD/3G-SDI Inputs
- 1 x SDI & 1 x HDMI Outputs
- Automatic Signal Detection
- SDI Re-Clocking on Output
- Monitor EDID Support
- Display Custom Labels & Audio Metering
- Compact Metal Housing
- Quad Multiviewer
General
| Input | 4 x BNC (3G-SDI) |
| Output | 1 x BNC (3G-SDI) 1 x HDMI |
| Video Standard Compliance | SMPTE 259M/292M/296M/310M/425M-B ITU -R BT.601/BT.656 |
| Reclocking | No |
| Video Format | SDI (10-Bit 4:4:4/4:2:2 RGB, YUV) DCI 2K 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 59.94 fps PAL: 50 fps |
| Maximum Sampling Rate | 48 kHz / 24-Bit |
| OS Compatibility | macOS 10.15 macOS 11.1 or Later Windows 10 or Later (64-Bit Only) *As of July 2020: Check with the manufacturer for the most up-to-date compatibility |
| Power Connector | 1 x Barrel Input |
| Power Consumption | 6 to 36 VDC (5.5 W) |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
