BLACKMAGIC DESIGN STUDIO CAMERA 4K PLUS
SKU
BMD-CINSTUDMFT/G24PDD
$1,345.00
Availability:
In stock

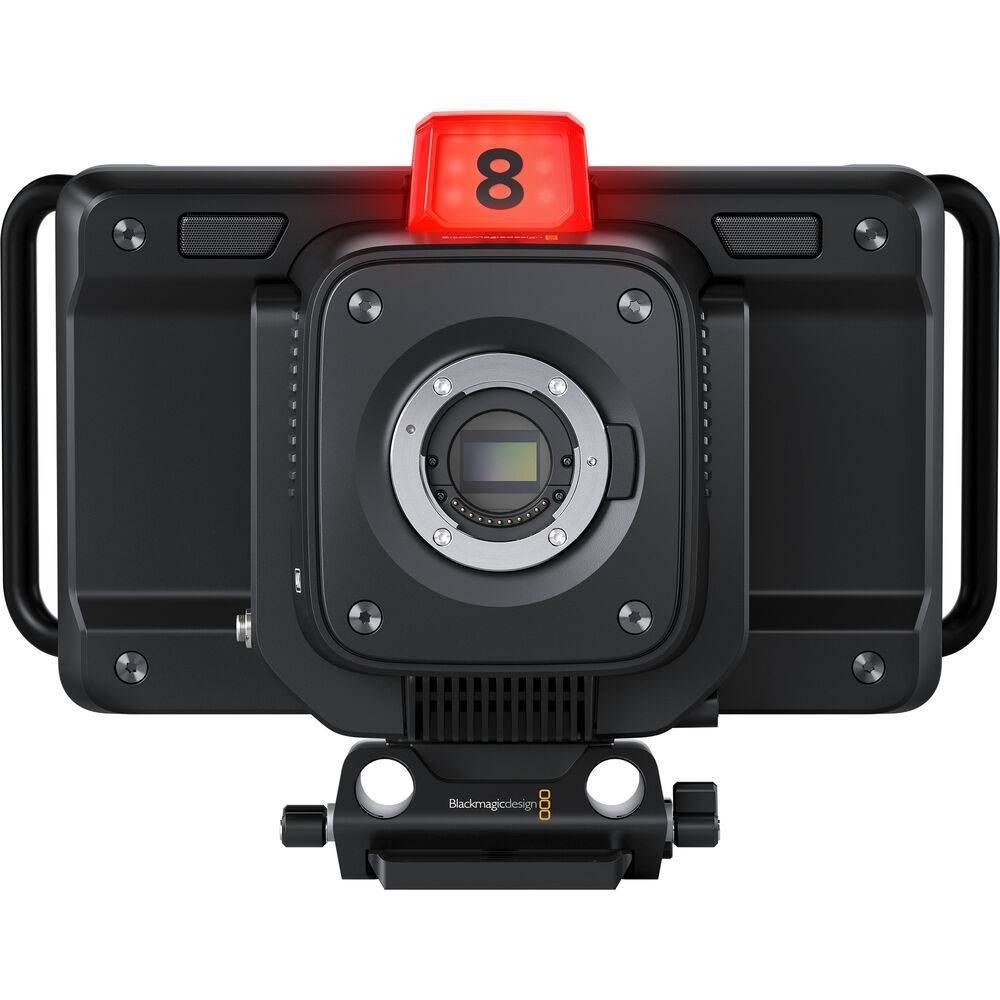

BLACKMAGIC DESIGN STUDIO CAMERA 4K PLUS
Add a powerful studio camera to your 4K broadcast when using an ATEM Mini with the Blackmagic Design Studio Camera 4K Plus. This updated compact and lightweight broadcast camera is designed for live production and provides a variety of options to record and broadcast your video, and it's designed to be used with the ATEM Mini switcher. This camera is similar to the Studio Camera 4K Pro model but it has pared down inputs, so you can control all the camera outputs using a separately available ATEM Mini video switcher. The main features added to the Studio 4K Plus model include a lighter carbon fiber body, up to 25,600 ISO, 13 stops of dynamic range, a bigger tally light, HDMI output, two USB Type-C ports for recording and control, built-in dual microphones, a 7" HDR LCD, and a redesigned sun hood.
Studio Camera 4K Plus Features
- Large Tally Light
- Micro Four Thirds Lens Mount
- 3.5mm Audio Input, Built-In Mics
- Capture up to UHD 4K 3840 x 2160p60
- 7" High-Brightness HDR Touchscreen LCD
- HDMI Video Output Designed for ATEM Mini
- Record to External USB Type-C Disks
- Records Blackmagic RAW, Up to 25,600 ISO
- Built-In DaVinci Resolve Color Corrector
- Light Carbon Fiber Polycarbonate Body
Imaging
| Image Sensor | 17.78 x 10 mm (Four Thirds) CMOS |
| Sensor Resolution | Not Specified by Manufacturer |
| ISO Sensitivity | 100 to 25,600 |
| Gain | 0 to 18 dB |
| Signal-to-Noise Ratio | 63 dB |
Camera
| Lens Mount | Micro Four Thirds |
| Shutter Speed | 1/5000 to 1/24 Second |
| Built-In ND Filter | None |
| Built-In Microphone Type | Stereo |
| Broadcast System Compatibility | NTSC, PAL |
Interfaces
| CCU I/O | None |
| Video I/O | 1 x HDMI Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input 1 x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output |
| Other I/O | 2 x USB-C (USB 3.2 / 3.1 Gen 1) Data/Video Input/Output |
Recording
| Recording Modes | DNxHD/ProRes: 3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
| Raw Recording | Blackmagic RAW 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps [26 to 190 Mb/s] |
| Audio Recording | Raw: 2-Channel 24-Bit 48 kHz LPCM Audio |
Display
| Display Type | Fixed Touchscreen LCD |
| Size | 7" |
| Resolution | 1920 x 1200 |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
General
| Accessory Mount | 2 x 1/4"-20 Female |
| Tripod Mount | 3/8"-16 Female |
| Dimensions (W x H x D) | 10.77 x 6.68 x 6.59" / 27.36 x 16.97 x 16.74 cm (Without Protrusions) |
| Weight | 3.71 lb / 1.68 kg |
