BLACKMAGIC DESIGN TERANEX MINI - 12G-SDI TO QUAD SDI
SKU
BMD-CONVNTRM/DB/SDIQD
$545.00
Availability:
In stock
BLACKMAGIC DESIGN TERANEX MINI - 12G-SDI TO QUAD SDI

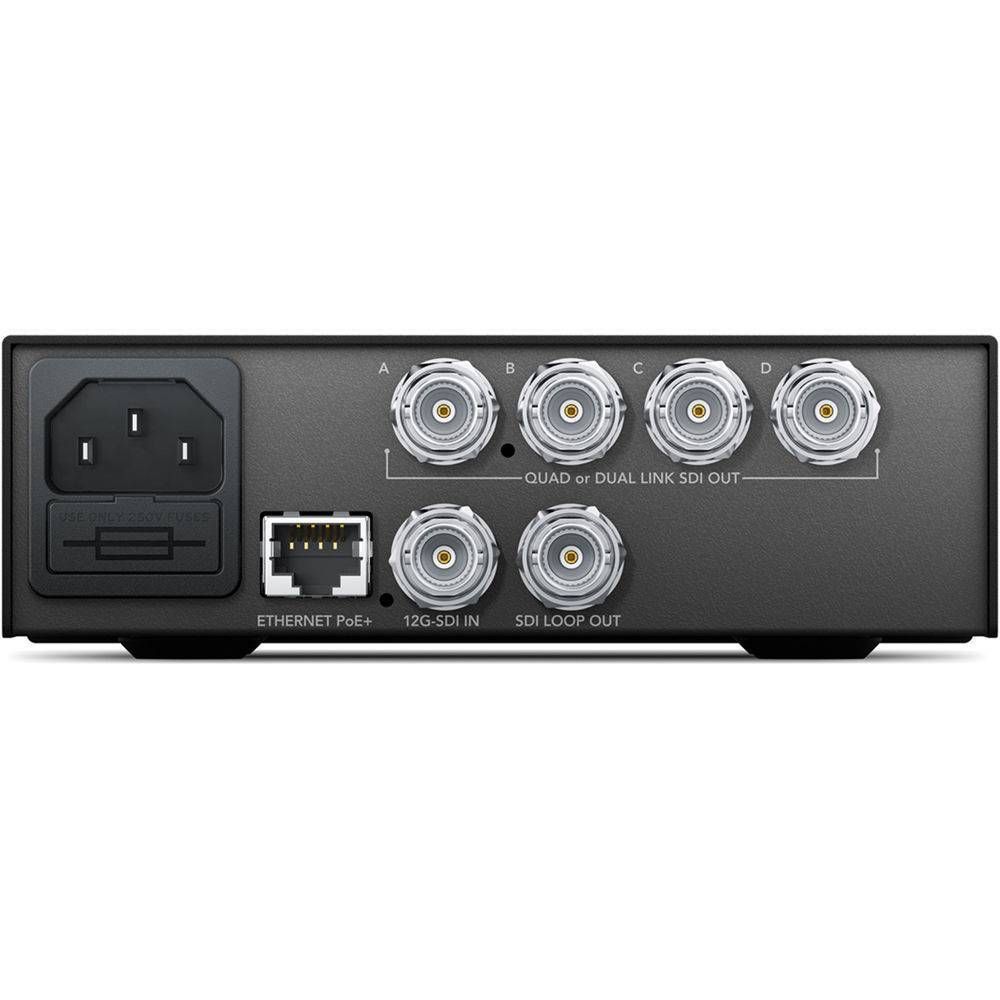

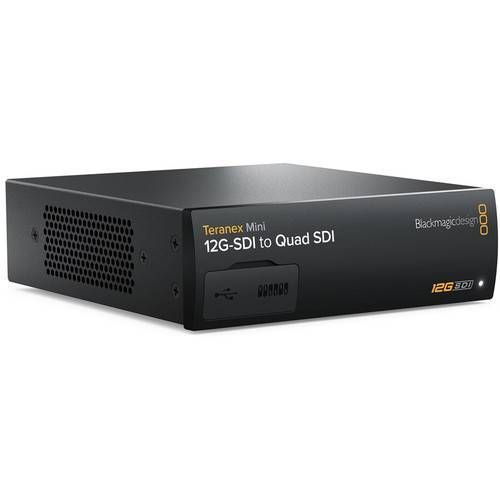

Distribute a high-resoution 12G-SDI source to Quad-Link SDI equipment with the Teranex Mini 12G-SDI to Quad SDI Converter from Blackmagic Design. Housed in a low-profile enclosure, this Teranex Mini Converter seamlessly fits in studio and post-production workflows or anywhere with multiple displays or a video wall design. The unit features one 12G-SDI input, one 12G-SDI loop output, and four 3G-SDI distribution outputs that support multirate auto-switching between DCI 4K, UHD 4K, HD, and SD sources and destinations. The unit also supports up to 16 channels of broadcast-quality 24-bit, 48 kHz audio.
Connecting the unit via Ethernet enables you to use the included control software to make adjustments to fit your needs, as well as power the unit via PoE (Power-over-Ethernet). DIP switch controls and a USB configuration port are also available on the front panel.
Teranex Mini 12G-SDI to Quad SDI Converter Features
- 1 x 12G-SDI Input, 12G-SDI Loop Output
- 4 x 3G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 16-Channel, 24-Bit, 48 kHz Audio Support
- Control via DIP Switches or Software
- Power via PoE or IEC C14 Power Cable
- Ethernet or USB for Firmware Updates
Inputs / Outputs
| Video Inputs | 1 x BNC Female |
| Audio Inputs | None |
| Video Outputs | 4 x BNC (3G-SDI) Female 1 x BNC (12G-SDI) Female (Loop Output) |
| Audio Outputs | None |
| Other I/O | 1 x RJ45 LAN, PoE Input/Output 1 x USB-A Firmware Input |
| Expansion Slots | None |
Format Support
| Input Video Format | SDI (4:4:4/4:2:2 RGB, YUV) DCI 4K at 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25 fps DCI 2KPsF 23.98/24/25 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps |
| Output Video Format | SDI (4:4:4/4:2:2 RGB, YUV) DCI 4K at 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25 fps DCI 2KPsF 23.98/24/25 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps |
| Embedded Audio | SDI: 16-Channel |
Standards
| Video Standard Compliance | SMPTE 259M/292M/296M/372M/424M-A/424M-B/425M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10 |
| Wi-Fi | None |
Power
| Power I/O | 1 x IEC C14 Input |
| PoE Support | PoE+ 802.3at |
| Power Consumption | Device: 90 to 240 VAC (16 W) |
Environmental
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% |
