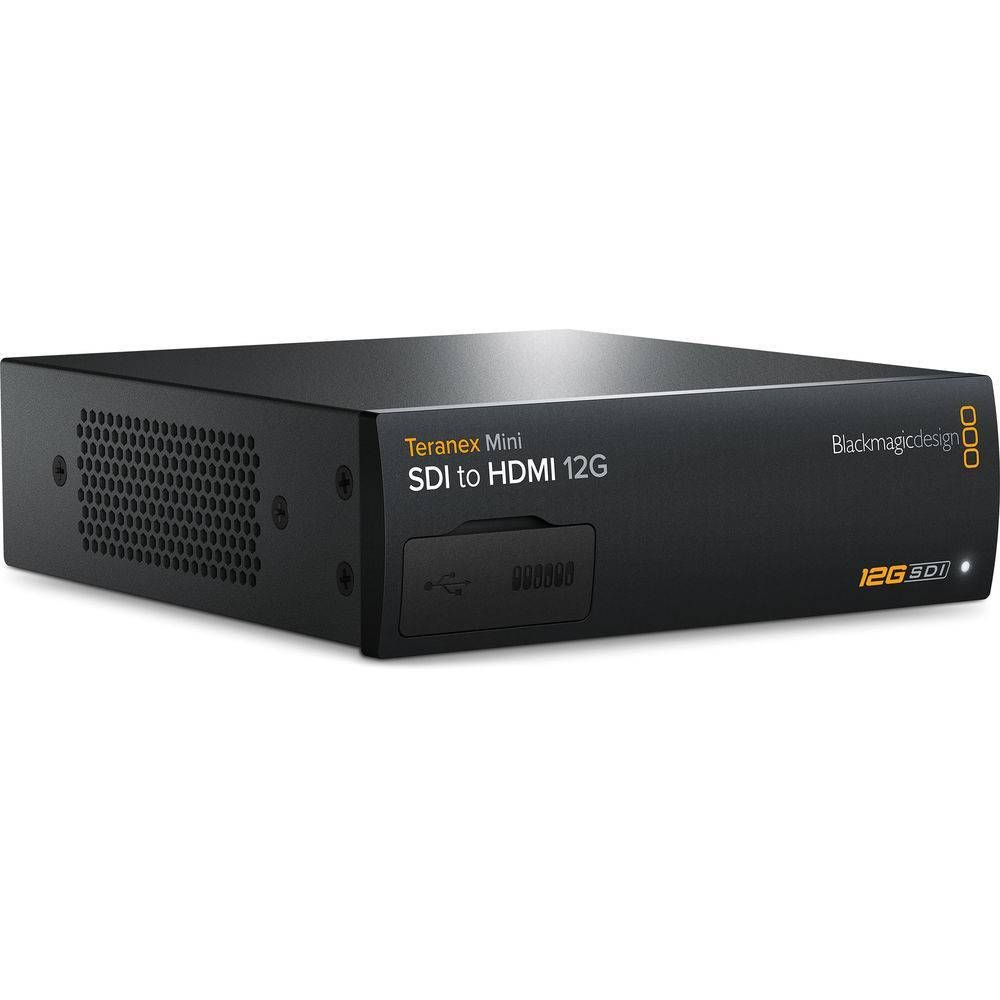

Supporting up to 12G-SDI data rates with intelligent heat dissipation, and offering features such as XLR connections and an Ethernet control and PoE port, the Teranex Mini SDI to HDMI 12G Converter, from Blackmagic Design, is a highly improved solution for rack-mount as well as cable duct and desktop installations. Connect up to a Full 4K DCI 4096x2160p SDI signal and run it out to an HDMI display in the same DCI 4K resolution, and monitor the signal locally via an SDI loopout. You can also de-embed audio from the signal and route it separately via full-size XLR connectors that are switchable between balanced analog and AES/EBU digital audio.
The compact size of the Teranex Mini makes it very useful for portable racks at live events or in broadcast trucks. Up to three units can easily be installed in an optional 1U 19" rack tray, and they can just as easily be removed, and all this with the advantage of 12G-SDI capability. The Ethernet port on the rear will allow you to manage the Teranex Mini remotely or can alternatively be used for power over Ethernet. If you don't want to use power over Ethernet, you won't have to deal with cumbersome power supplies, as the Teranex Mini features a built-in 90-240V power supply, and all you'll need is a standard IEC power cable, sold separately.
Teranex Mini SDI to HDMI 12G Converter Features
Inputs / Outputs
Video Inputs | 1 x BNC (12G-SDI) Female |
Audio Inputs | None |
Video Outputs | 1 x HDMI (HDMI 2.0a) 1 x BNC (Loop Output) |
Audio Outputs | 2 x XLR 3-Pin Stereo AES/EBU Female |

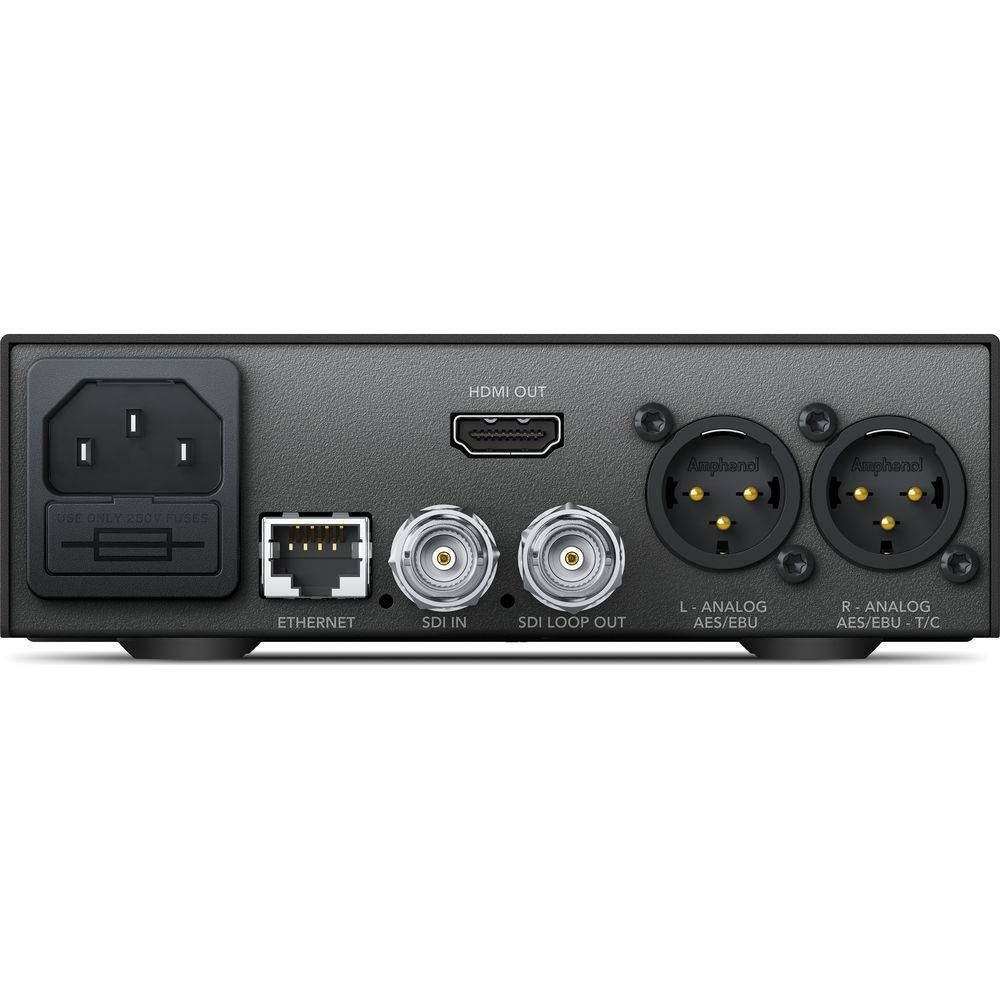

Other I/O | 1 x XLR 3-Pin Timecode Output (Shared With Right Audio XLR) 1 x RJ45 Control, Firmware, PoE Input 1 x Mini-USB Firmware Input |
Expansion Slots | None |
Format Support
Input Video Format | SDI (4:4:4/4:2:2 RGB, YUV) DCI 4K at 23.98/24/25 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K at 23.98/24/25 fps DCI 2KPsF at 23.98/24/25 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps |
Output Video Format | HDMI (4:2:2 YUV) DCI 4K at 23.98/24/25 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps |
Embedded Audio | HDMI/SDI: 8-Channel |
Hardware / Standards
Wi-Fi | None |
OS Compatibility | Windows 10 (64-Bit Only) macOS 10.15 to 11.1 or Later *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
Video Standard Compliance | SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10 |
HDR Compatibility | Not Specified by Manufacturer |
Power
Power I/O | 1 x IEC C14 (100 to 240 VAC) Input |
PoE Support | PoE+ 802.3at |
Power Consumption | 16 W |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
