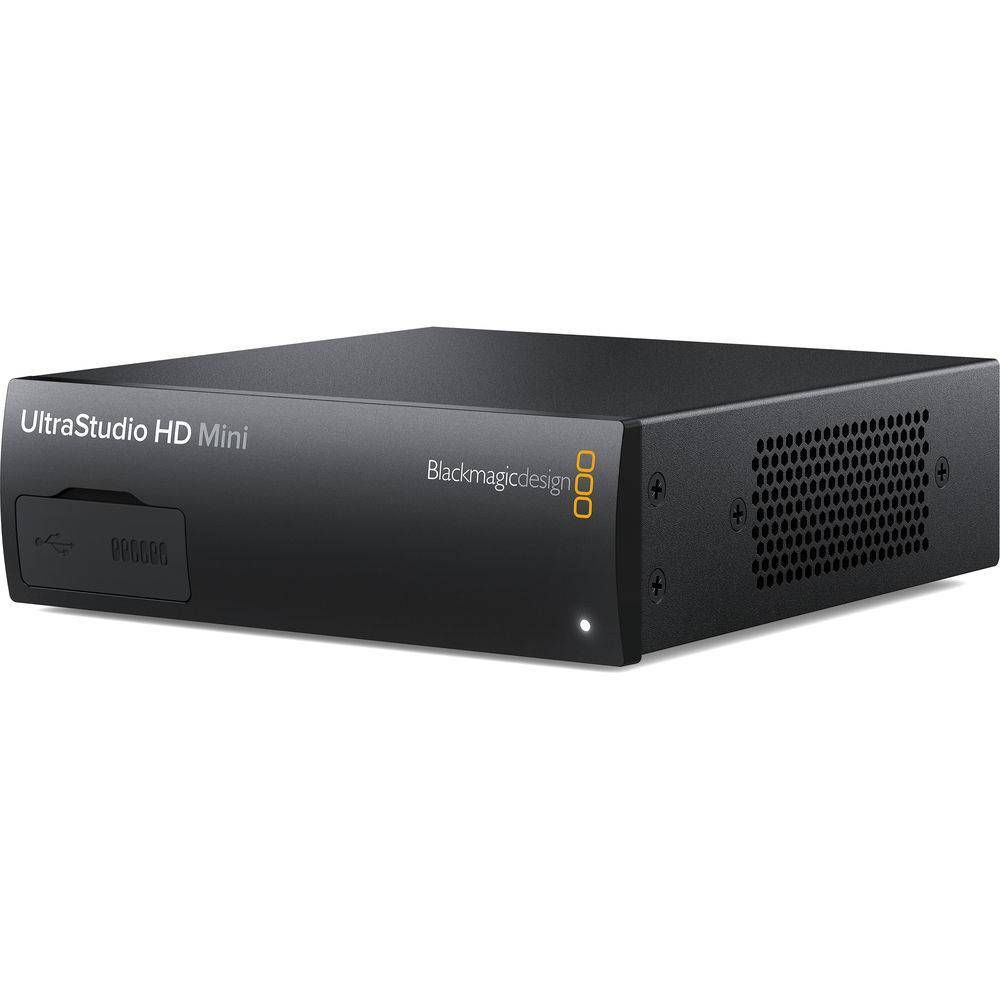

Perform footage acquisition from digital or analog sources straight into your NLE of choice with the Blackmagic Design UltraStudio HD Mini. SDI and analog video inputs can import video from modern or legacy professional video equipment. Using the versatile Thunderbolt 3 interface, the UltraStudio HD Mini can send and receive SD and HD video up to 1080p at 60 fps with up to 16 channels of embedded audio. Available outputs include dual SDI for fill and key, as well as an HDMI output for driving consumer displays. With the built-in RS-422 connection, the UltraStudio HD Mini can also interface with professional broadcast decks.
HD Mini Specs
System Connection | USB-C (Thunderbolt 3) |
Video Inputs | 1 x BNC (3G-SDI) Female 1 x 3BNC (Component/Composite) Female |
Audio Inputs | 2 x 1/4" TRS Analog Female |
Video Outputs | 2 x BNC (3G-SDI) Female 1 x HDMI (1.4b) Female |
Other I/O | 1 x DE-9/DB-9 RS-422 Input 1 x BNC Reference Input |
Format Support
Input Video Format | SDI (4:4:4/4:2:2) DCI 2K at 23.98/24/25 fps DCI 2KPsF 23.98/24/25 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 576i / 625 lines |
Output Video Format | HDMI (8-Bit 4:4:4 RGB) 1080p at 30 fps SDI (8/10/12-Bit 4:4:4 RGB) 1080p at 30 fps |
Embedded Audio | SDI: 16-Channel HDMI: 2-Channel |
Standards
Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M-A/425M-B |
HDR Compatibility | None |
Hardware
OS Compatibility | Windows 10 or Later (64-Bit Only) Windows 11 macOS 11.1 or Later Linux *As of April, 2023: Check with manufacturer for the most up-to-date compatibility |
Power I/O | None |
Environmental
Operating Temperature | 32.0 to 104.0°F / 0.0 to 40.0°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% |
General
Dimensions | 6.69 x 5.51 x 1.75" / 16.99 x 14 x 4.45 cm |
Weight | 1.34 lb / 608 g |
