CLEAR-COM CZ-BP410 DX410 SYSTEM - BP410 BELTPACK : 2CH, 2.4GHZ WITH (2) BAT50 BATTERIES 0525
SKU
CLE-CZ-BP410
MFR#
CZ-BP410
$1,245.00
Availability:
Out of stock

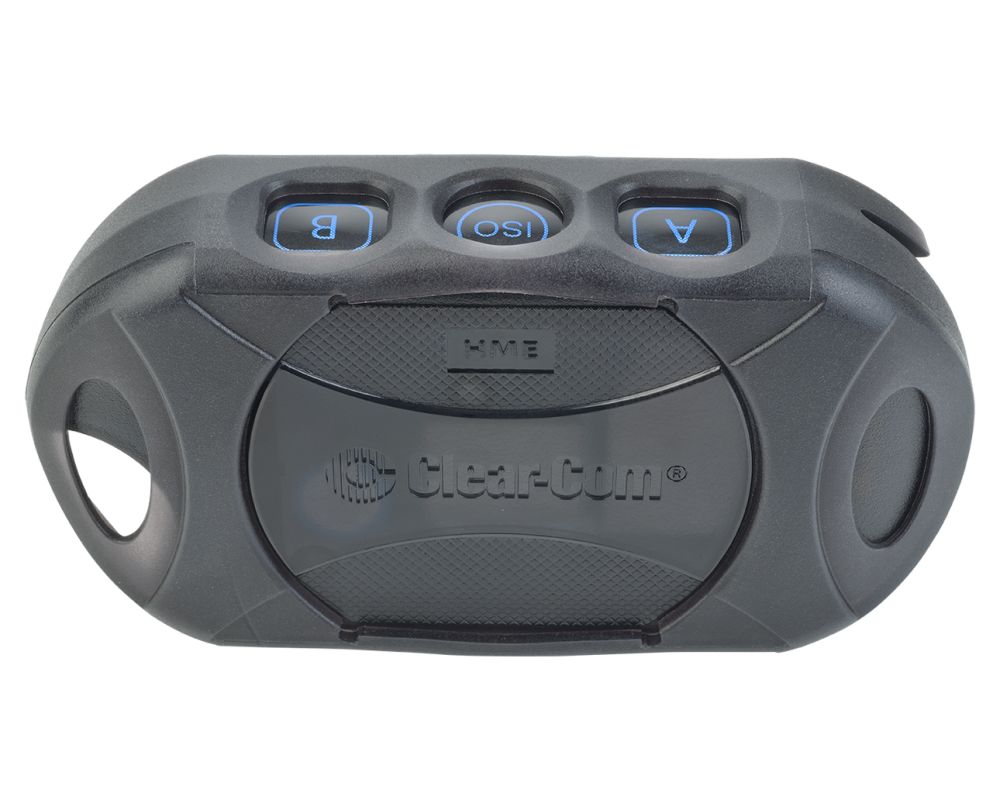

CLEAR-COM CZ-BP410 DX410 SYSTEM - BP410 BELTPACK : 2CH, 2.4GHZ WITH (2) BAT50 BATTERIES 0525
The BP410 is a rugged, light-weight, ergonomically designed beltpack. The BP410 operates in the license-free 2.4GHz frequency range and are used with the BS410 base station.
Features:
- Two-channel operation
- 2.4GHz license-free operation
- Up to 15 beltpacks and/or all-in-one handsets on a single system
- 7kHz wideband audio
- Single or dual-channel operation
- Up to 12 hours of battery life
- Light-weight, compact design, ergonomic design
- Rugged and reliable
Specifications:
| Channels | 2 audio channels |
| Frequency Range | 2400 MHz – 2483.5 MHz |
| Frequency Response | 200 Hz – 7 kHz |
| Headset Connector | 4-pin, mini-DIN |
| Microphone | Electret |
| Headset Output | 160 mW into 32 Ω |
| System Distortion | < 2% |
| Controls | Power, Volume-Up, Volume-Down, A, B, ISO |
| Indicators | Dual-color LED (red/green) |
| Battery Requirements | 3.6V lithium-ion |
| Battery Life | Up to 12 hours |
| Antenna | Internal, horizontal/vertical diversity |
| Type | Frequency Hopping, Spread Spectrum (FHSS) |
| Transmit Power | 100 mW burst |
| Modes | Momentary or Latch |
| Modulation | Gaussian filtered FSK, TDMA |
| Frequency Stability | ±13 ppm |
| Harmonics/Spurious | Exceeds FCC and ETSI specifications |
| Type | Frequency Hopping, Spread Spectrum (FHSS) |
| RF Sensitivity | < -90 dBm with 10⁻³ BER |
| Frequency Stability | ±13 ppm |
| Distortion | < 2% |
| Environmental | Operating Temperature: 32° to 122°F (0° to +50°C) |
| Dimensions | 2.25 × 4.5 × 1 in (H × W × D) 57.2 × 114.3 × 25.4 mm |
| Weight | 7.4 oz (0.21 kg), including battery and pouch |
