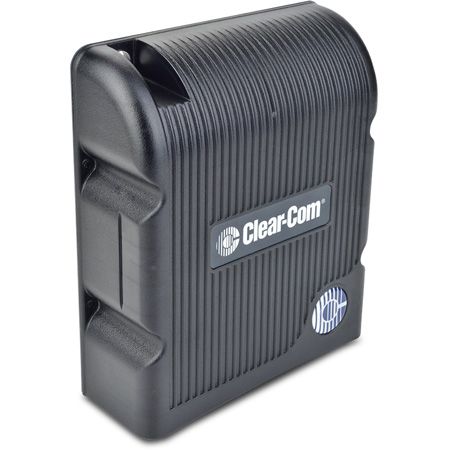

CLEARCOM FSII-TCVR-IP-19-US FREESPEAK II 1.9 GHZ IP TRANSCEIVER FOR UP TO 10 FSII 1.9 GHZ BELTPACKS. 0525
SKU
CLE-FSII-TCVR-IP-19-US
MFR#
FSII-TCVR-IP-19-US
$3,460.00
Availability:
Out of stock
CLEARCOM FSII-TCVR-IP-19-US FREESPEAK II 1.9 GHZ IP TRANSCEIVER FOR UP TO 10 FSII 1.9 GHZ BELTPACKS. 0525
The ClearCom FreeSpeak II Intercom System FSII-TCVR-IP-19-US is a 1.9GHz Intercom IP Transceiver that supports 10 FSII 1.9GHz beltpacks per transceiver. The FSII-TCVR-IP-19-US is for use with FreeSpeak II 1.9 GHz systems only. The transceiver connects to the Eclipse HX matrix system via the E-IPA interface card. Each transceiver can support up to 10 FSII-BP19 beltpacks. When supported with the E-IPA card, up to 50 1.9GHz beltpacks (in North America or 64 beltpacks in EU countries) and up to 64 transceivers can be supported on one Eclipse HX matrix system.
The FSII-TCVR-IP-19 allows transceivers and beltpacks to be placed anywhere there is an AES67 IP network connection. It connects to the E-IPA-HX card via copper or fiber over an AES67 compliant network switch. Transceivers can be connected by copper (2 RJ45's) or fiber (2 high speed SFP cages).
The FSII-TCVR-IP-19 can be powered from an Power-over-Ethernet switch, using the supplied external power supply, or it can be connected via fiber and will need to be locally powered. The unit is IP-53 rated for water and dust resistance and has a mount for wall or microphone stand. The green status light is visible from either mounting orientations.
Features:
- FSII 1.9GHz IP Transceiver
- Requires E-IPA-HX card and an Eclipse HX frame (not available for FSII-BASE-II)
- For use with FreeSpeak II 1.9 GHz only
- Operates over IP on an AES67 compatible network
- Supports 10 FSII 1.9GHz beltpacks per transceiver
- Up to 64 transceivers supported on Eclipse HX matrix system
- Ethercon RJ45 network connections (2)
- High speed fiber SFP cages (2)
- Power-over-Ethernet (PoE) up to 300 ft (91 m)
- Green LED status indicator on top and bottom
- Mic stand or wall mount orientation (metric and imperial threads)
- IP53 rating for wet and dry conditions
Specifications:
| Regional Frequency & Power | |
| USA, Canada, Mexico | 1920 – 1930 MHz (5 Channels) Output Power: 100 mW |
| EU, Russia, Singapore, Hong Kong, Australia, New Zealand, South Africa | 1880 – 1900 MHz (10 Channels) Output Power: 250 mW |
| Japan | 1894 – 1905 MHz (6 Channels) Output Power: 250 mW |
| Latin America (LA) | 1910 – 1930 MHz (10 Channels) Output Power: 250 mW |
| Brazil | 1910 – 1920 MHz (5 Channels) Output Power: 250 mW |
| Modulation | GFSK, TDMA (10ms frame, Full and Long slot) |
| Power & Input | |
| RF Output Power | EU/Russia: 10 dBm avg US: 18–20 dBm |
| AC Power Input | 100 – 240V AC, 50/60Hz, Max 1.4A |
| Max Power at 120V AC | 20W |
| PoE | IEEE 802.3af • Port Input: 15.4W • Device Consumption: 12.95W |
| USB Power Source | 5V, 3A Max Power: 12.5W |
| Environmental | |
| Operating Temperature | 32°F – 125°F (0°C – 50°C) |
| Storage Temperature | 32°F – 150°F (0°C – 70°C) |
| Humidity | 20% – 90%, Non-Condensing |
| Mounting Options | |
| Rear Mount | 5/8" & 3/8" threaded mic stand sockets |
| Safety | Integrated Safety Harness Attachment |
| Adapter | Ball Joint Mic Adapter |
| Physical | |
| Dimensions | 8.5 × 7.5 × 2.5 in (HxWxD) (217 × 192 × 64 mm) |
| Weight | 36.3 oz (1028 g) |
