CLEARCOM MT-701 ENCORE ISOLATOR : 1CH WITH CALL SIGNAL PASS-THROUG 0525
SKU
CLE-MT-701
MFR#
MT-701
$485.00
Availability:
Out of stock
CLEARCOM MT-701 ENCORE ISOLATOR : 1CH WITH CALL SIGNAL PASS-THROUG 0525

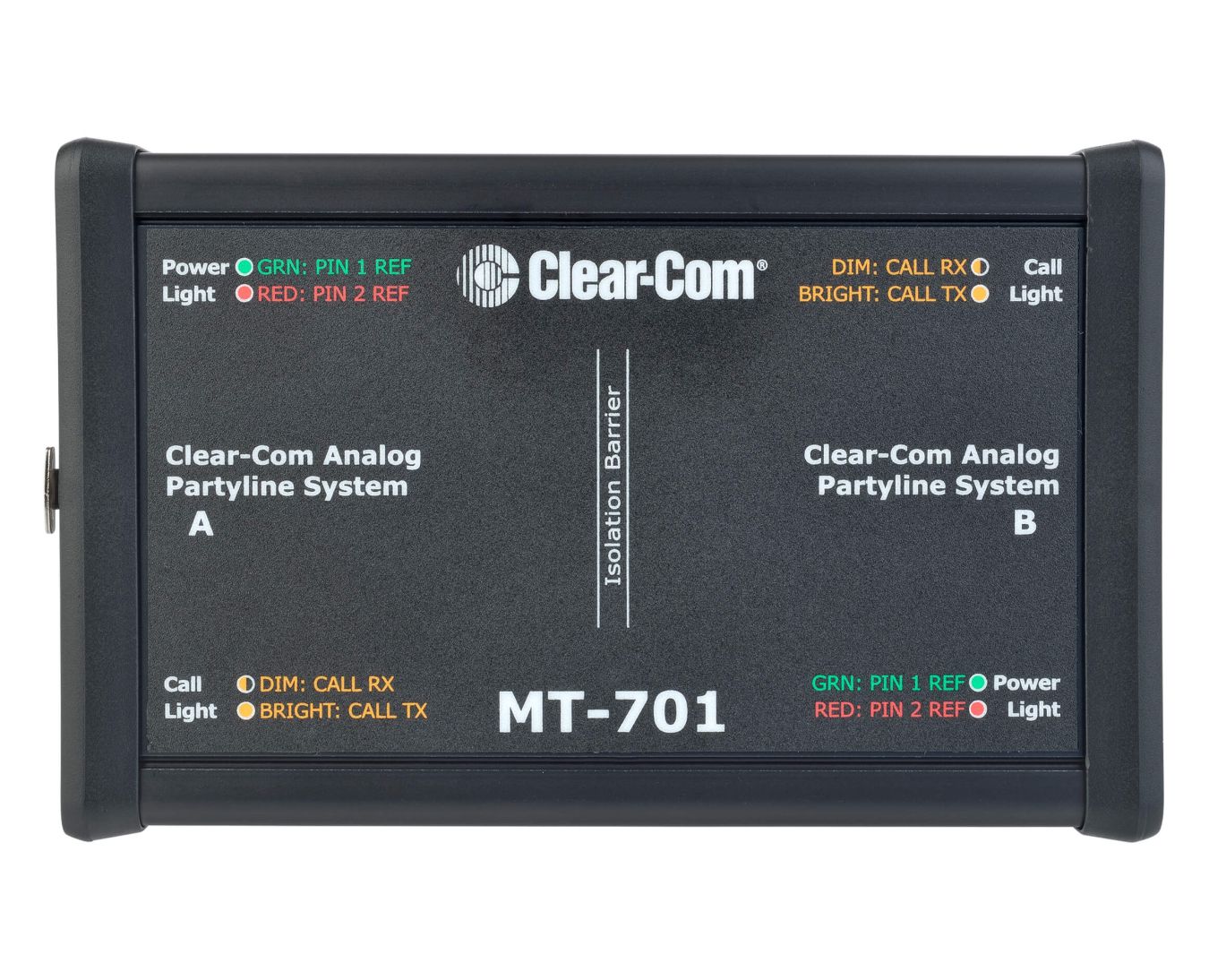

The Clear-Com MT-701 is an isolation box that is used to reduce hum in Clear-Com Encore Partyline products when multiple grounds are present. The MT-701 can also be used to bridge two Encore partyline systems together. Encore™ is a 2-wire analog partyline system with intuitive plug-and-play design and superior "Clear-Com Sound" audio clarity.
Features:
- One termination required between connected systems
- Status information LEDs
- Easy installation with standard XLR cables
- High-quality enclosure for professional use
Specifications:
| Audio | |
| Pin 2 Impedance | > 5000 Ω |
| Maximum Level | +2 dBu |
| Distortion | < 0.2% THD (200 Hz – 10 kHz, -10 dBu) |
| Frequency Response | 100 Hz – 10 kHz, +2 dBu |
| Nominal Input Level | -18 dBu (Clear-Com Standard) |
| Power | |
| Power Consumption | < 5 mA |
| Environmental | |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Physical | |
| Dimensions (HxWxD) | 1.8 x 3.2 x 5 in / 46 x 81 x 126 mm |
| Weight | 9.6 oz / 0.27 kg |
