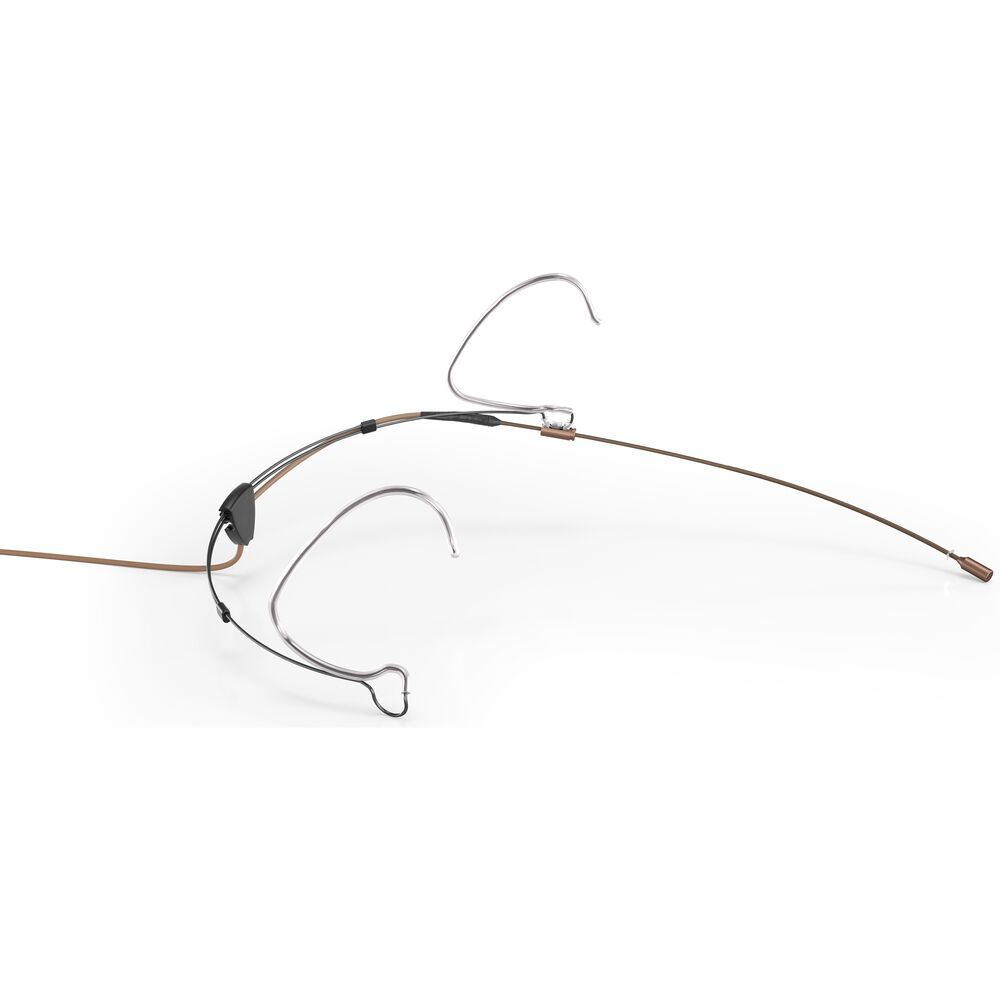

DPA 6066-OC-R-C10 6066 CORE OMNI HEADSET MIC, BROWN, TA4F MINI-XLR
The brown 6066 CORE from DPA is a subminiature lightweight omnidirectional headset microphone with an advanced, fully adjustable, stainless steel headset mechanism. The barely noticeable, dual-ear design offers a very comfortable wearing experience for presenters and performers while the tiny 3mm mic capsule provides broadcast-quality sound up to the demanding standards of theater, TV, and live event professionals
The 6066 fits the wearer by using 3-point ear grips with spring mechanisms that grip comfortably above and below the ears and to the side of the head for added security. The 2-way adjustable boom system—length and height—features an anti-rotate mechanism that makes it easy to position the tiny 3mm mic capsule for optimal sound quality. A sliding lock mechanism secures the boom positioning. In addition, the 90° cable management system safeguards the cable from stress and directs it down the wearer's back, where it can't be seen.
DPA Microphones 6066-OC-R Specs
| Microphone Type |
Headworn
|
| Wearing Style |
Over-Ear (Double/Neckband)
|
| Sound Field |
Mono
|
| Element Type |
1x Electret Condenser
|
| Polar Pattern |
Omnidirectional
|
| Frequency Range |
40 Hz to 20 kHz
|
| Maximum SPL |
128 dB SPL Peak (Plug-In Power, 1% THD)
144 dB SPL Peak (Plug-In Power, 10% THD) |
| Sensitivity |
6 mV/Pa
|
| Dynamic Range |
102 dB A-Weighted
|
| Output Connector |
1x Microdot Coaxial Male
|
| Cable Length |
4.3' / 1.3 m
|
| Power Sources |
Plug-In Power
|
| Operating Voltage |
5 to 10 V (Plug-In Power)
|
| Color |
Brown
|
| Environmental Protection |
Dust/Water-Resistant to 3.28' / 1 m (IP58)
|
| Dimensions |
ø: 0.1 x L: 0.1" / ø: 3 x L: 3.4 mm (Capsule)
|
| Weight |
0.4 oz / 11.34 g (with Cable)
|
