HOLLYLAND AROCAM C2 LIVESTREAM PTZ CAMERA
SKU
HOL-AROCAM-C2
MFR#
HL-AROCAM-C2
$699.00
Availability:
Out of stock

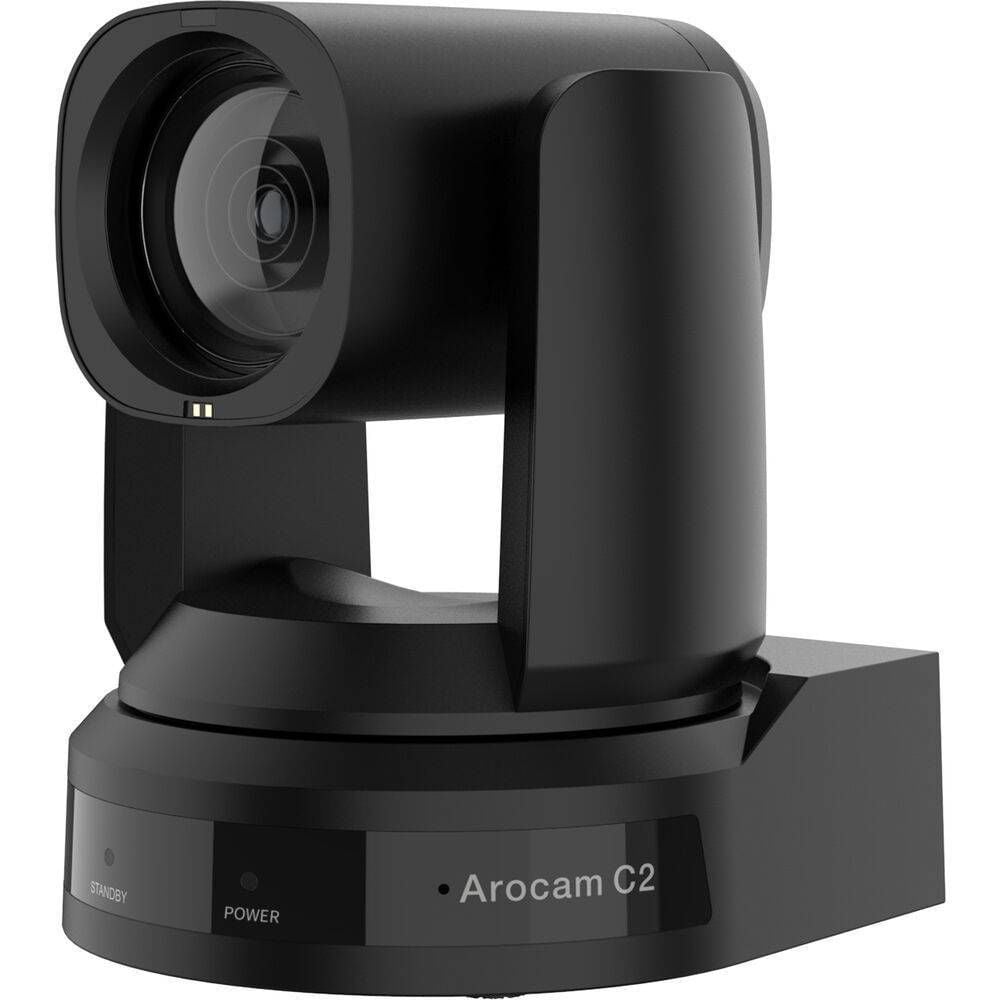

HOLLYLAND AROCAM C2 LIVESTREAM CAMERA
The Hollyland Arocam C2 HD Vertical Livestream Camera with it's Time-of-Flight infrared sensor module is suitable for livestream applications requiring fast and intuitive autofocus. The camera is outfitted with a 1/2.8" CMOS sensor with 2.07MP effective pixels for up to 1080p video at 60 fps. It supports both a default portrait or horizontal orientation, making it perfect for livestreaming to social media platforms. Optically, the camera features a 72.5° wide angle lens with 12x optical zoom and 0.5 minimum illumination. A power adapter, a remote controller, and a USB cable are included.
Key Features
- 2.07MP 1/2.8" CMOS Sensor
- ToF Autofocus Technology
- HDMI Output, USB 3.0 Interface
- Up to 1080p at 60 fps Video
- 72.5° Wide-Angle Lens, 12x Optical Zoom
- 0.5 Minimum Illumination
- RS-232 for Remote Control
- RJ45 Ethernet Port
- 1 x 3.5mm Line Input
- Power via USB or DC Input
Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.07 Megapixel
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
|
| Shutter Speed |
1/10000 to 1/30 Second
|
| Signal-to-Noise Ratio |
55 dB
|
| Minimum Illumination |
0.5 Lux
|
| Flip / Mirror Support |
Image Flip
|
| White Balance |
Presets: Auto, Indoors, Manual, One Push, Outdoors
|
| Focal Length |
3.5 to 42.3mm
|
| Optical Zoom Ratio |
12x
|
| Field of View |
Horizontal: 72.5 to 6.9°
Vertical: 44.8 to 3.9° |
| Maximum Aperture |
f/1.8 to 2.8
|
| External Recording Modes |
HDMI
1920 x 1080p at 25/29.97/50/59.94 fps 1280 x 720 at 50/59.94 fps |
| Internal Recording Modes |
H.264 4:2:2 8-Bit
1920 x 1080p |
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, MJPEG
1920 x 1080 |
| IP Multi-Stream Support |
Simultaneous
H.264, MJPEG: 1080p, 720p |
| Presets |
255
|
| Move Speed |
Pan: 2.7 to 35.7°/sec
Tilt: 2.7 to 31.5°/sec |
| Movement Range |
Pan: 340°
Tilt: 120° |
| Tally Light |
No
|
| Supported Control Protocols |
IP
RS-232 |
| Wireless Range |
98.4' / 30 m
|
| Video I/O |
1 x HDMI 1.4b Output
|
| Audio I/O |
1 x 1/8" / 3.5 mm TRS Stereo Line Input
|
| Other I/O |
1 x RJ45 (LAN) Input
1 x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Input 1 x USB-C (USB 3.2 / 3.1 Gen 1) Input |
| Power I/O |
1 x Barrel (12VDC) Input
1 x USB-C (5VDC) Input/Output |
| Power Consumption |
Device: 5 to 12 VDC at 1 A (12 W)
|
| Operating Temperature |
14 to 104°F / -10 to 40°C
|
| Storage Temperature |
-40 to 140°F / -40 to 60°C
|
| Mounting |
1 x 1/4"-20 Female
|
| Environmental Protection |
No
|
| OS Compatibility |
Android
Windows 7 Windows 8 Windows 10 macOS 10 Linux *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Dimensions (W x H x D) |
5.6 x 6 x 6.9" / 142.2 x 151.9 x 175.8 mm
|
| Weight |
3.3 lb / 1.5 kg
|
