HOLLYLAND COSMO C1 SDI/HDMI WIRELESS VIDEO TRANSMISSION SYSTEM
SKU
HOL-COSMO-C1
MFR#
HL-COSMO-C1
$899.00
Availability:
Out of stock

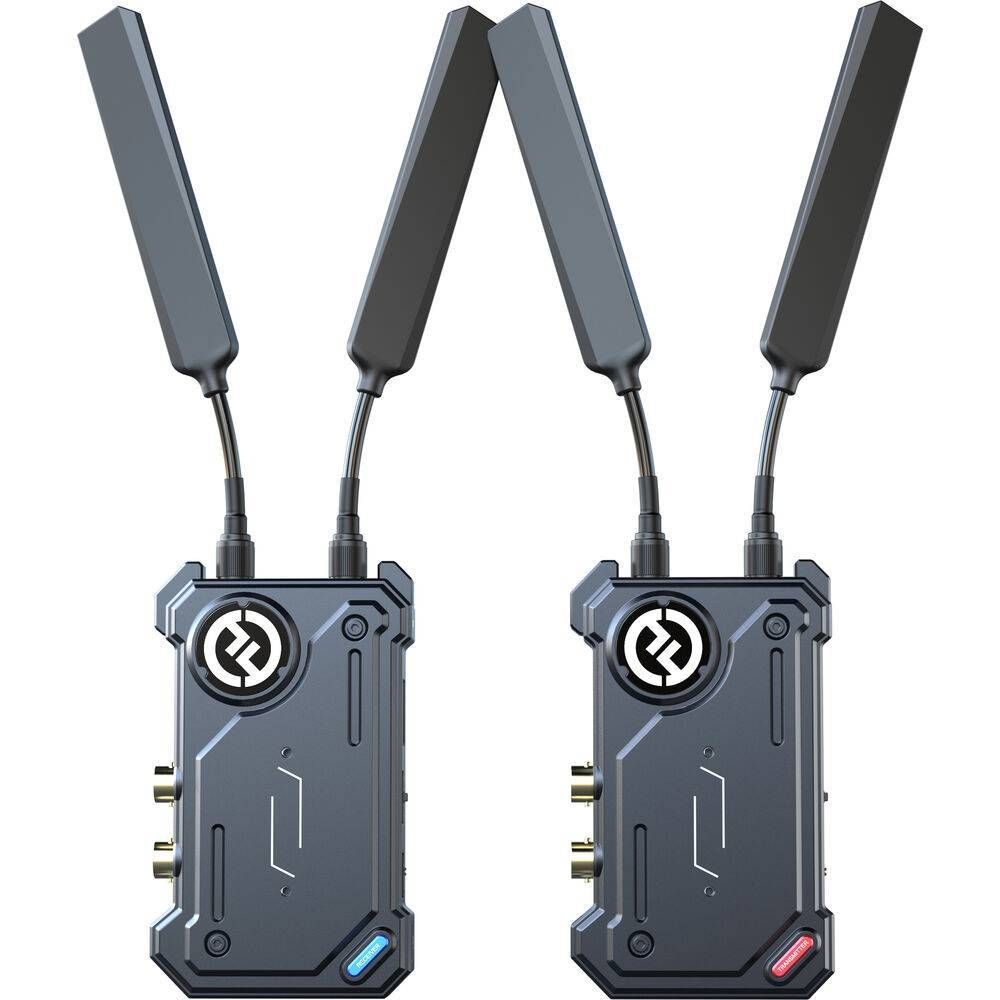

HOLLYLAND COSMO C1 SDI/HDMI WIRELESS VIDEO TRANSMISSION SYSTEM
The Cosmo C1 SDI/HDMI Wireless Video Transmission System from Hollyland allows you to wirelessly transmit high-resolution video up to 1080p60 over long distances up to 1000' to a single receiver, allowing flexible video monitoring and distribution for your studio or field production. This kit consists of a transmitter and a receiver that communicate over the 5.1 to 5.9 GHz wireless frequency range.
The Cosmo C1 can transmit video up to 1000' line-of-sight with a low 40 ms latency using the HEVC/H.265 codec. The system operates on the 5 GHz frequency band and uses AES-128 encryption to prevent video leakage. It also supports smart channel selection, allowing the system to choose the cleanest channel for transmission as well as HEVO, an adaptive frequency hopping technology, for seamless retransmission without losing a frame.
Key Features
- Wireless Video Transmitter/Receiver Set
- Transmitter HDMI/SDI Input, SDI Loop Out
- Receiver HDMI & 2 x SDI Outputs
- OLED Screen, USB Type-C Power Input
- 1000' Line-of-Sight 1080p60 Transmission
- 5.1 to 5.9 GHz Frequency Range
- AES-128 Encryption, 40 ms Latency
- L-Series Battery Plates on TX/RX
- DC Adapter Power or Optional Battery
Specs
| Video I/O |
Transmitter: 1 x BNC (3G-SDI) Input
Transmitter: 1 x HDMI Input Transmitter: 1 x BNC (3G-SDI) Loop Output Receiver: 2 x BNC (3G-SDI) Output Receiver: 1 x HDMI Output |
| HDCP Support |
Not Specified by Manufacturer
|
| Embedded Audio |
HDMI/SDI: 2-Channel
|
| Audio I/O |
No
|
| Power |
Transmitter/Receiver: 1 x USB-C (2 A / 5 VDC) Input
|
| Other I/O |
Transmitter/Receiver: 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Input
|
| Encryption |
128-Bit AES
|
| Wireless Range |
1000' / 304.8 m
|
| Channel Bandwidth |
20 MHz
|
| Frequency Range |
US: 5.1 to 5.8 GHz
|
| Latency |
40 ms
|
| RF Power |
22 dBm
|
| RF Sensitivity |
-80 dBm
|
| Wi-Fi |
Yes
|
| Bluetooth |
No
|
| Video Format |
HDMI
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Audio Format |
Not Specified by Manufacturer
|
| Timecode Support |
Yes
|
| DC Input Power |
6 to 16 VDC
|
| Battery Type |
Transmitter/Receiver: 1 x L-Series
|
| Power Consumption |
Transmitter/Receiver: 9 W
|
