HOLLYLAND PYRO S 4K HDMI/SDI WIRELESS VIDEO TRANSMISSION SYSTEM UP TO 1300 FT 2.4 AND 5 GHZ FREQUENCY BAND
SKU
HOL-PYRO-S
MFR#
HL-PYRO-S
$449.00
Availability:
Out of stock

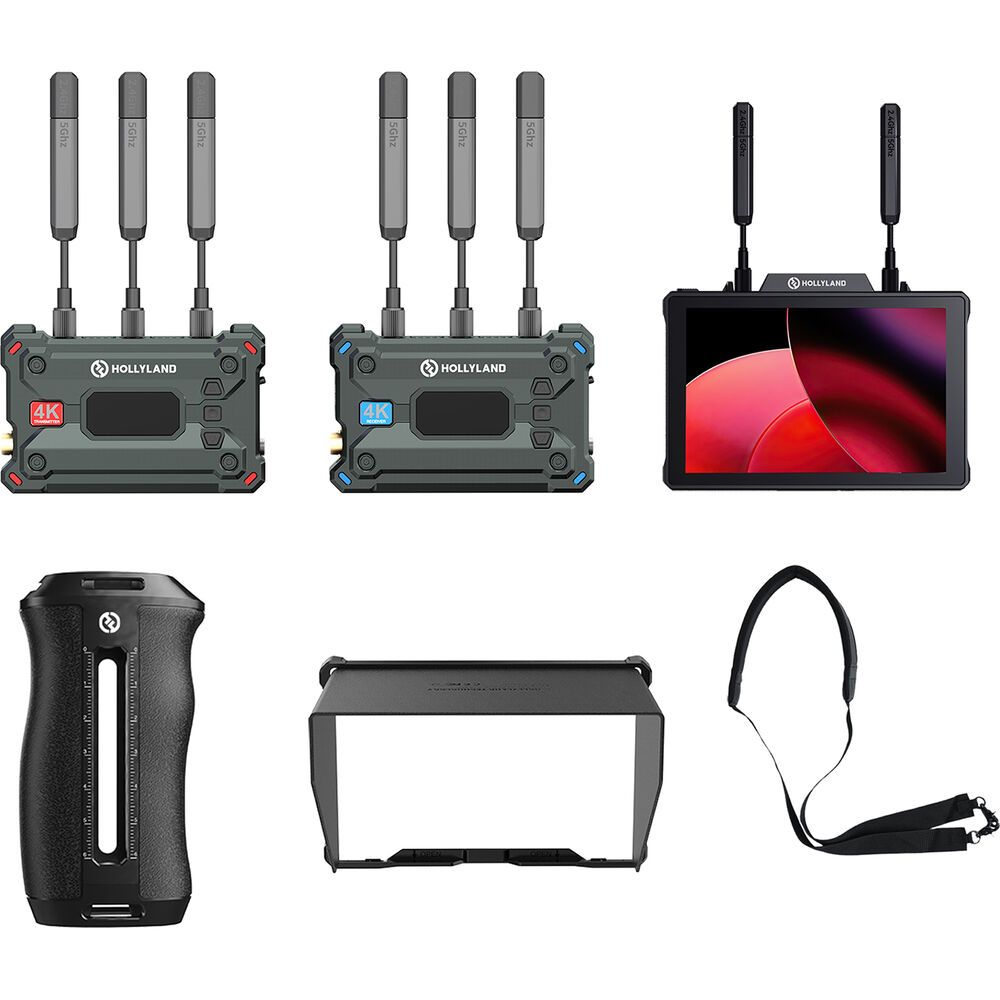

HOLLYLAND PYRO S 4K HDMI/SDI WIRELESS VIDEO TRANSMISSION SYSTEM UP TO 1300 FT 2.4 AND 5 GHZ FREQUENCY BAND
Transmit, receive, and monitor high-quality wireless video transmissions using the versatile Pyro 7 Wireless Transceiver Monitor from Hollyland. The Pyro 7 takes the previous M1 transceiver/monitor and makes everything bigger and better with a bright 7" touchscreen display, dual L-series battery plate, wireless transmission up to 1300' away, updated HollyOS imaging tools, SD card video recording, HDMI/SDI input/output, RTSP streaming, one Pyro 7 sends to up to four receivers, as well as auto dual-band 2.4/5 GHz hopping and auto-frequency hopping.
Key Features
- Pyro 7 Transceiver/Recording Monitor
- Pyro S 4K Transmitter & Receiver Kit
- Monitor Hood, Shoe Mount, Pyro 7 Handle
- SDI/HDMI I/O, 1300' Transmission
Hollyland PYRO S and PYRO 7 KitSpecs
Display
| Panel Type |
LCD
|
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Aspect Ratio |
16:9
|
| Touchscreen |
Yes
|
| Maximum Brightness |
1200 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| HDR Support |
No
|
| Pixels Per Inch (ppi) |
323 ppi
|
| LUT Support |
Yes
|
| Image Controls |
Focus Peaking, Waveform
|
Inputs / Outputs
| Antenna I/O |
2x RP-SMA Male
|
| Video I/O |
1x BNC (3G-SDI) Input
1x BNC (3G-SDI) Output 1x HDMI 1.4b Input 1x HDMI 1.4b Output |
| Embedded Audio |
HDMI/SDI: 8-Channel
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Power I/O |
1x Barrel Input
|
| Other I/O |
1x USB-C (Firmware) Input
|
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC
|
| Encryption |
No,
|
| Wireless Range |
1300' / 396.2 m (Line-of-Sight)
650' / 198.1 m |
| Channel Bandwidth |
40 MHz, 20 MHz
|
| Frequency Range |
US: 5.1 to 5.8 GHz
US: 2.412 to 2.484 GHz |
| Latency |
60 ms
|
| RF Power |
23 dBm
|
| RF Sensitivity |
-80 dBm
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
Yes, Required: Android & iOS
App Name: HollyView Functionality: Adjust Settings, Firmware Update, Remote Control, Setup, View Live Feed |
Format Support
| Video Format |
HDMI
UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/30/29.97/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Audio Format |
4-Channel
|
| Wireless Video Compression |
Compressed
|
| Timecode Support |
Yes
|
