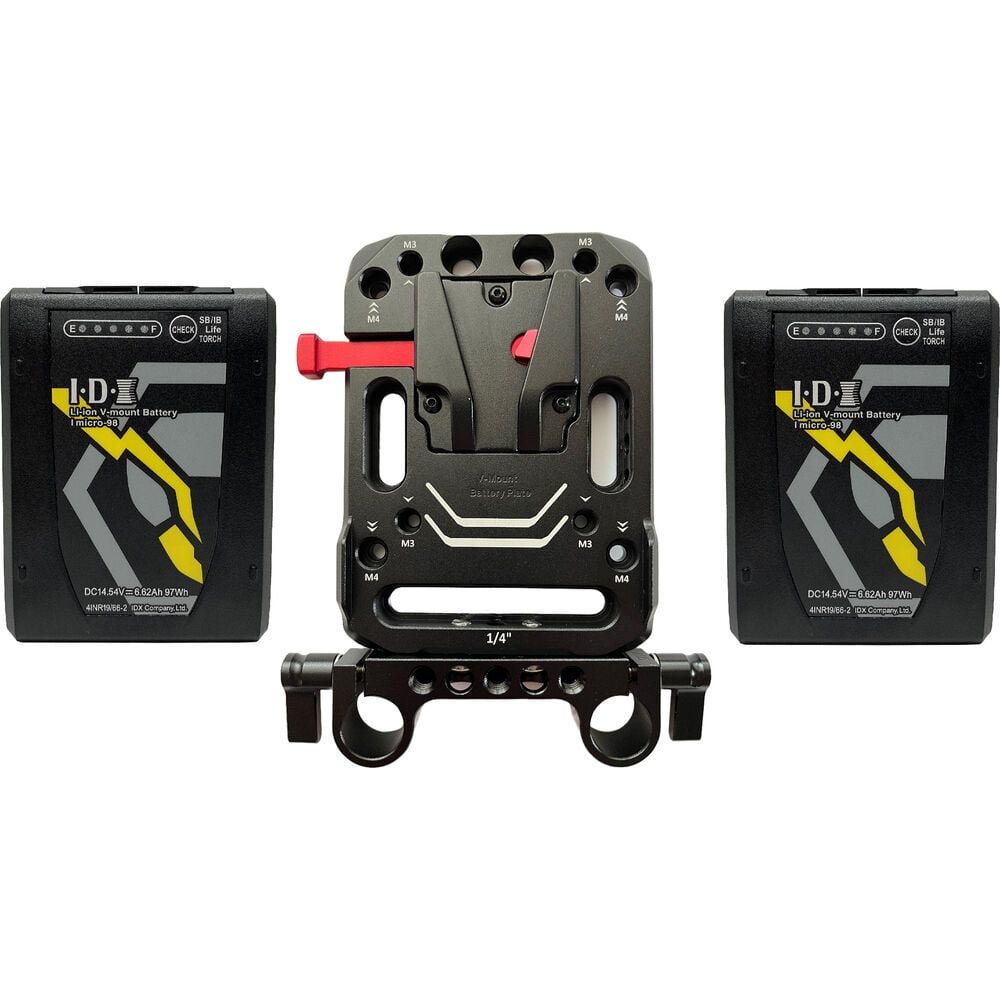

The 2 x Imicro-98 Batteries & V-Mount Plate Kit from IDX System Technology provides power to your camera or other V-mount powered devices in a 14.5V, 97Wh battery with a compact size of only 3.8 x 2.8". Two batteries, each with a 14A draw, are included in this kit, along with a V-mount battery plate.
Each battery has two D-Tap outputs, one of these a D-Tap Advanced option that can be used to charge the battery. A 5-LED gauge informs on battery status, and battery circuit protection shields the battery from certain causes of battery misuse, such as exposure to high temperatures, overcharge/overdischarge, and overcurrent. The batteries also feature a V-Torch LED for working in dark environments and SMBus support, which allows users to display battery info via the viewfinder on select ARRI and RED cameras. The Imicro-98 is an ideal option for using when traveling as it meets aircraft carry-on limits.
IDX System Technology IMICROSpecs
| Mount / Series Type |
V-Mount
|
| Chemistry |
Lithium-Ion
|
| Battery Capacity |
6600 mAh / 97 Wh
|
| Output Voltage |
14.5 VDC
|
| Maximum Load |
14 A
|
| Accessory I/O |
1x D-Tap / P-Tap Output
1x D-Tap Advanced Input/Output |
| Maximum Load (Accessory I/O) |
100 W (D-Tap)
|
| Storage Temperature |
-4 to 122°F / -20 to 50°C (Recommended)
|
| Charging Temperature |
32 to 104°F / 0 to 40°C (Recommended)
|
| Discharging Temperature |
-4 to 113°F / -20 to 45°C
|
| Dimensions (W x H x D) |
2.8 x 3.8 x 2" / 7.1 x 9.7 x 5.1 cm
|
| Weight |
1.21 lb / 549 g
|
