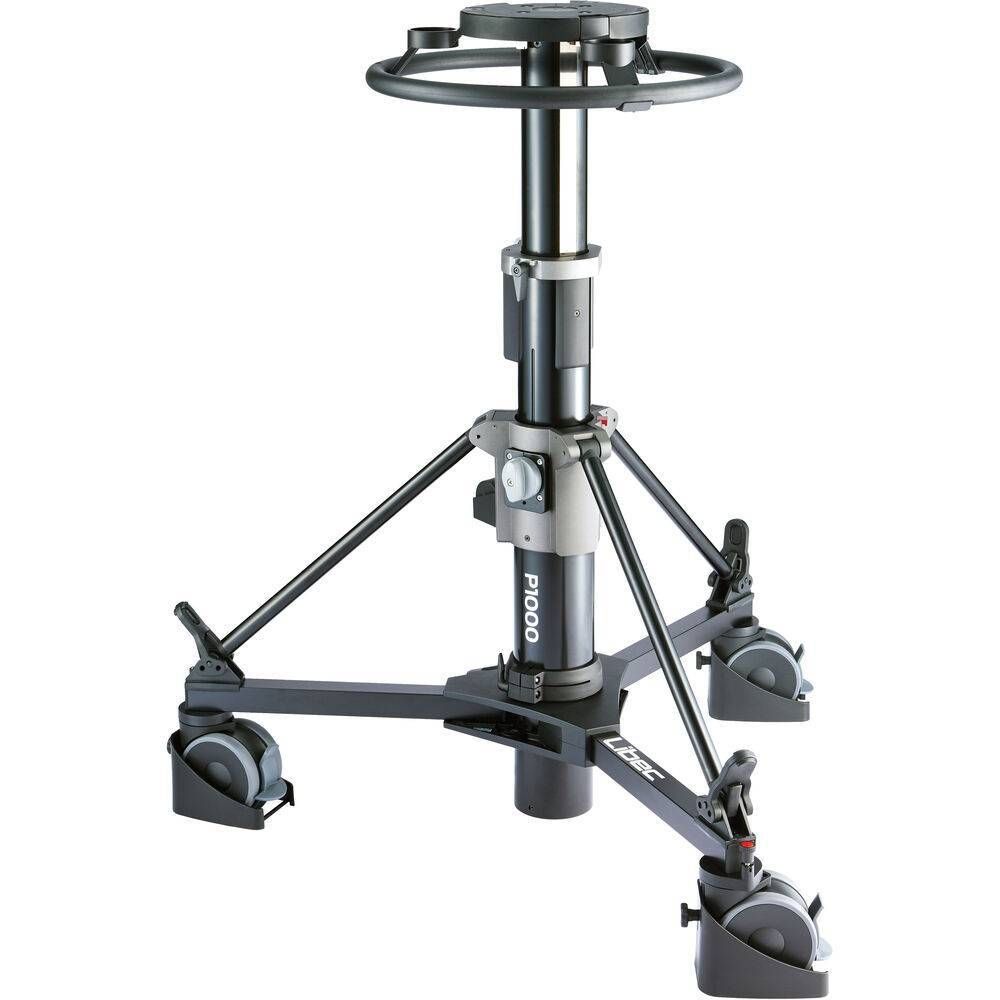

The Libec P1000 150mm Flat Base Pedestal System is a 2-stage pneumatic column pedestal system that supports up to 132 pounds (including fluid head) and features 31.9" of height adjustment, a steering ring, 150mm flat base for mounting either a Libec QH1 or QH3 fluid head, and a rolling dolly with removable cable guards.
The P1000 is equipped with a tracking locking mechanism that ensures straight-line movement by locking the caster direction as you move from position to position.The cable guards ride low over the wheels to prevent you from accidently rolling over cables when shifting positions on the studio floor. The cable guards can be raised up when needed to allow the dolly to roll over uneven surfaces. An included manual air pump allows you to charge the center column for proper operation, while an optional kick ring helps provide you a place to use your feet to help start smooth rolling movement of the pedestal.
Specs
Load Capacity |
132.28 lb / 60 kg
|
Head Fitting |
150mm Flat Base with 4 x Mounting Holes
|
Steering Ring Diameter |
19.69" / 50 cm
|
Maximum Operating Air Pressure |
0.93MPa (9.3 bar / 134.9 psi)
|
Relief Valve Pressure |
0.99MPa (9.9 bar / 143.6 psi)
|
Minimum Height |
26.77" / 68 cm
|
Maximum Height |
58.66" / 149 cm
|
Weight |
57.98 lb / 26.3 kg
|
Stages |
2
|
Stroke Range |
Upper: 16.34" / 41.5 cm
Lower: 15.55" / 39.5 cm |
Leg Radius |
4.92" / 12.50 cm
|
Wheel Diameter |
4.92" / 12.50 cm
|
Wheel Lock |
Foot Pressure Lever-Type
|
Cable Guards |
Removable
|
