LIBEC 75MM BALL AND FLAT BASE VIDEO HEAD WITH A PH-6B, PAYLOAD 3KG
SKU
LIB-H15
MFR#
H15
was
$840.00
Special Price
$669.00
Availability:
Out of stock

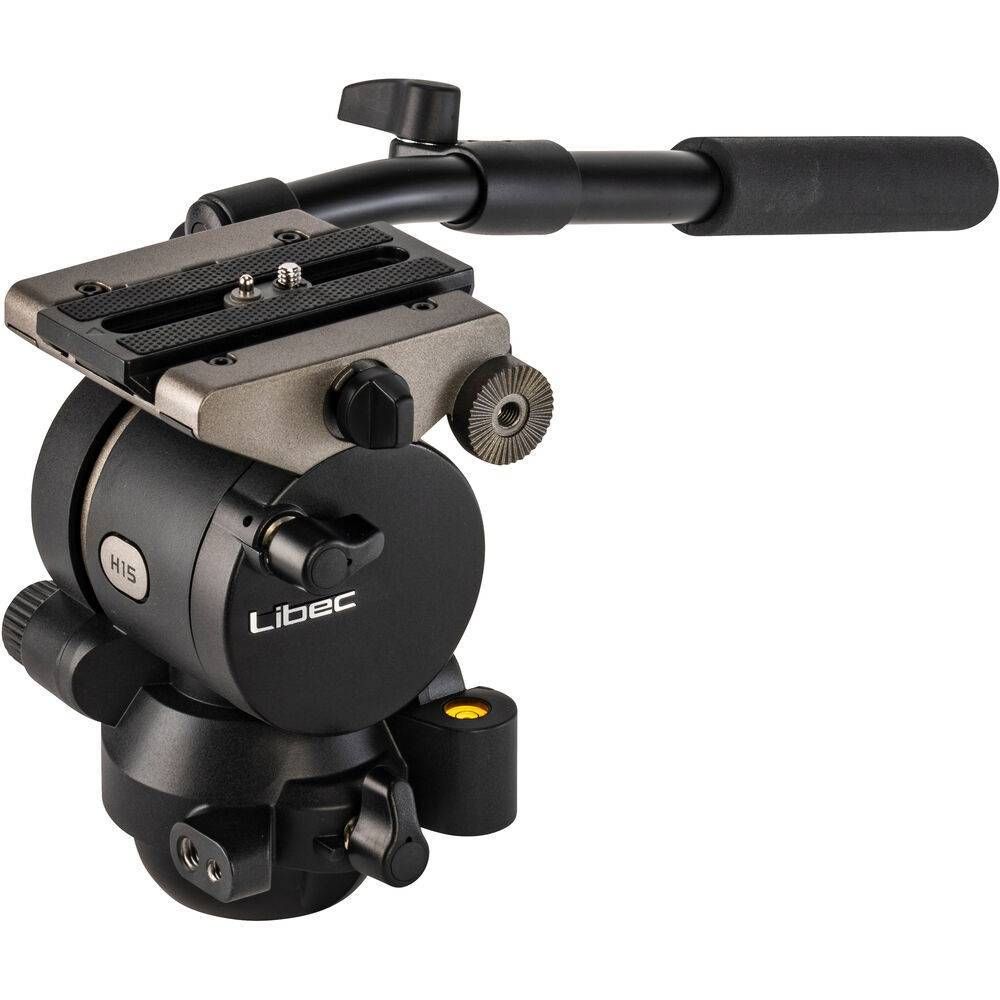

LIBEC 75mm ball and flat base video head with a PH-6B, payload 3kg
Integrate a fluid head into your tripod configuration with various adjustment features using this H15 75mm Ball and Flat Base Video Head with Pan Handle from Libec. An included pan handle makes for easy movement up and down or side to side. Independent pan and tilt adjustments make movements intuitive and smooth. The H15 head has a load capacity of 6.6 lb and an adjustable counterbalance range of 1.7 to 4.4 lb.
Your camera is secured via a 1/4"-20 screw and locating pin, and additional 3/8"-16 and 1/4"-20 screws are included for further attachments. An illuminated bubble level ensures your configuration is level when mounted onto tripod legs. The H15 is compatible with Manfrotto or Sachtler heads.
Key Features
- 75mm Ball and Flat Base
- 6.6 lb Load Capacity
- 1.7 to 4.4 lb Counterbalance Range
- 1/4"-20 Mounting Screw with Locating Pin
- 1/4"-20 & 3/8"16 Threads
- For Use with Manfrotto & Sachtler Heads
- Pan Handle
- Illuminated Bubble Level
Specs
| Camera Plate Features |
Sliding Balance Plate
|
| Camera Mounting Screw |
1 x 1/4"-20 Male with Locating Pin
|
| Balance Plate Sliding Range |
1.2" / 30 mm
|
| Base Mount |
75 mm Half Ball
Flat Base |
| Counter Balance |
Continuous (1.8 to 4.4 lb / 0.8 to 2 kg)
|
| Center of Gravity |
2.2" / 55 mm
|
| Included Pan Handle Length |
10.8" / 275 mm
|
| Bubble Level |
1 x Illuminated
|
| Accessory Mounting |
1/4"-20 Female Thread
3/8"-16 Female Thread |
| Drag Control |
Tilt: Stepped 3-Step
Pan: Stepped 3-Step |
| Drag Type |
Fluid
|
| Vertical Tilt |
+90° to -70°
|
| Independent Pan Lock |
Yes
|
| Independent Tilt Lock |
Yes
|
| Load Capacity |
6.6 lb / 3 kg
|
| Operating Temperature |
-8 to 92°F / -40 to 60°C
|
| Weight |
6 lb / 2.7 kg
|
