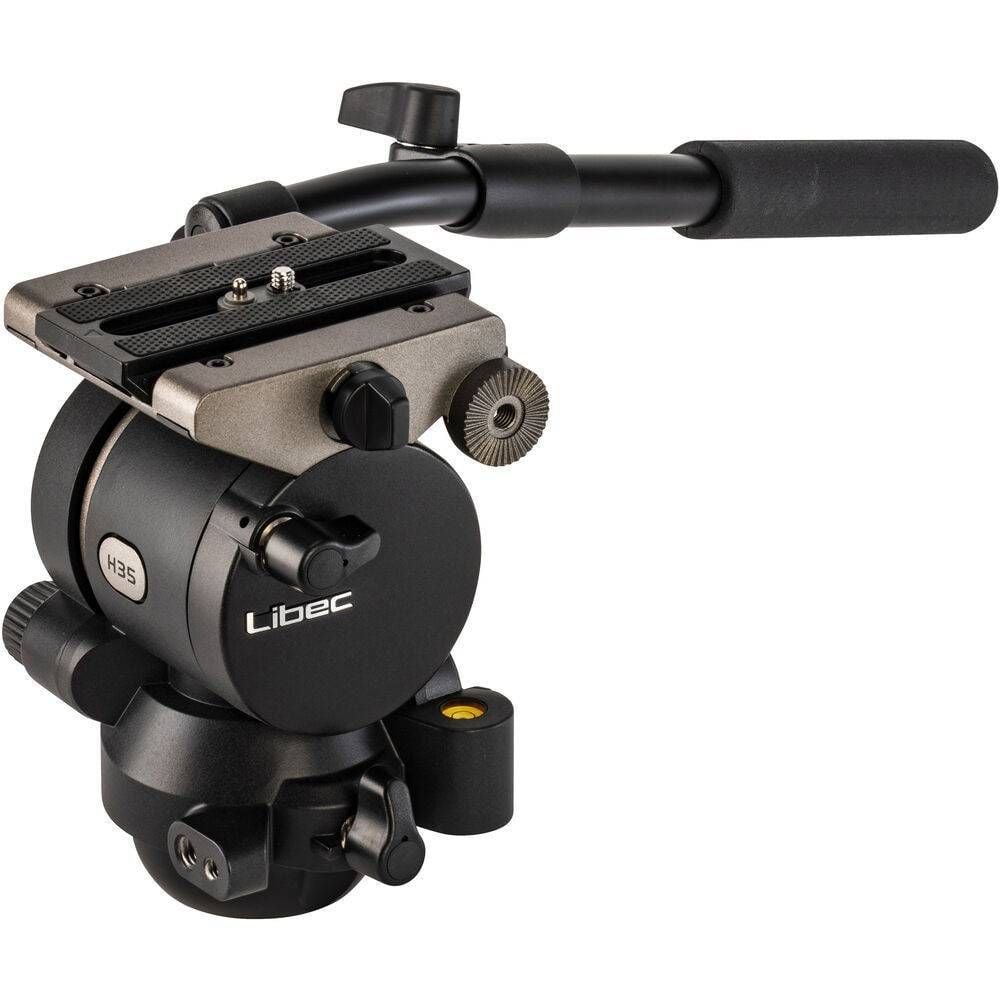

Integrate a fluid head into your tripod configuration with various adjustment features using this H35 75mm Ball and Flat Base Video Head with Pan Handle from Libec. An included pan handle makes for easy movement up and down or side to side. Independent pan and tilt adjustments make movements intuitive and smooth. The H35 head has a load capacity of 17.6 lb and an adjustable counterbalance range of 6.6 to 16.5 lb.
Your camera is secured via a 1/4"-20 screw and locating pin, and additional 3/8"-16 and 1/4"-20 screws are included for further attachments. The head also comes with a long sliding plate with one 3/8"-16 screw and one 1/4"-20 screw. An illuminated bubble level ensures your configuration is level when mounted onto tripod legs. The H35 is compatible with Manfrotto or Sachtler heads.
Camera Plate Features |
Sliding Balance Plate
|
Camera Mounting Screw |
1 x 1/4"-20 Male with Locating Pin
1 x 1/4"-20 Male 1 x 3/8"-16 Male |
Balance Plate Sliding Range |
1.2" / 30 mm
|
Base Mount |
75 mm Half Ball
Flat Base |
Counter Balance |
Continuous / 3 to 7.5 kg
|
Center of Gravity |
3.9" / 100 mm
|
Included Pan Handle Length |
10.8" / 275 mm
|
Bubble Level |
1 x Illuminated
|
Accessory Mounting |
1/4"-20 Female Thread
3/8"-16 Female Thread |
Drag Control |
Tilt: Stepped 3-Step
Pan: Stepped 3-Step |
Drag Type |
Fluid
|
Vertical Tilt |
+90° to -70°
|
Independent Pan Lock |
Yes
|
Independent Tilt Lock |
Yes
|
Load Capacity |
17.6 lb / 8 kg
|
Operating Temperature |
-8 to 92°F / -40 to 60°C
|
Weight |
6.2 lb / 2.8 kg
|
