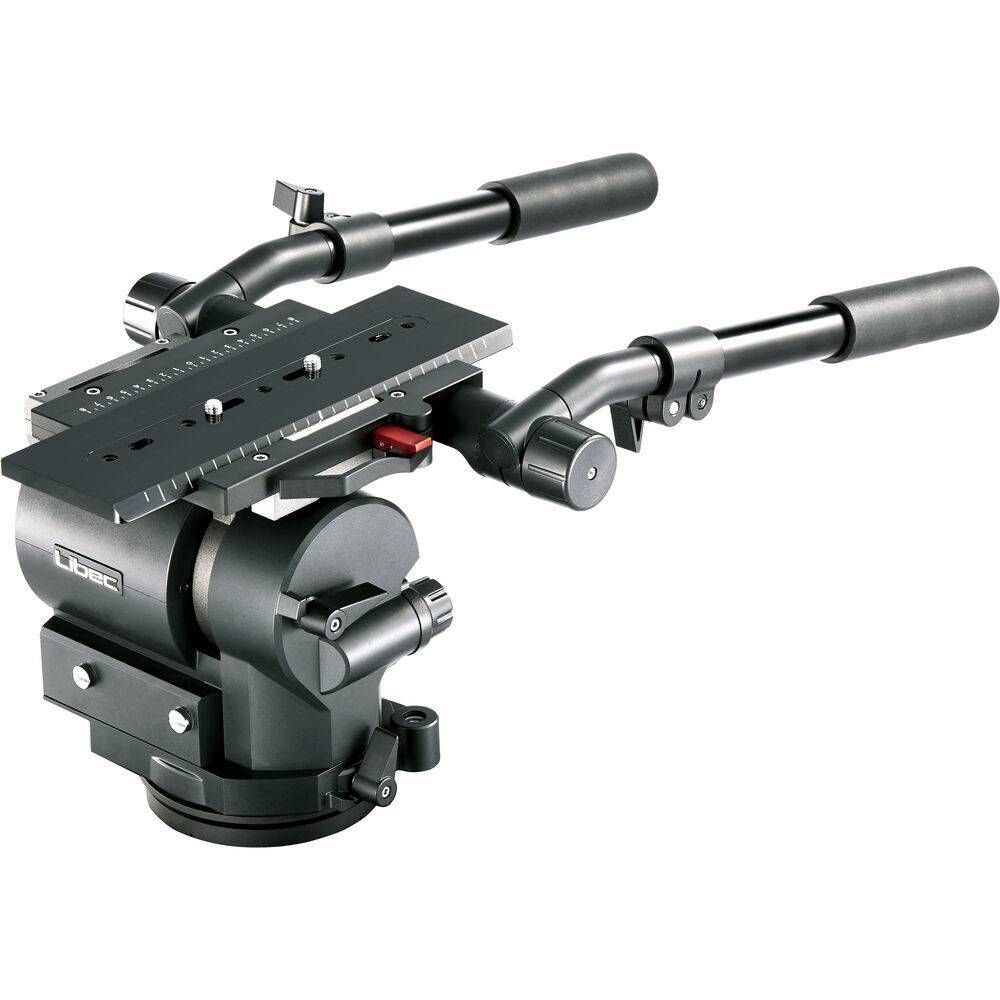

The Libec QH1 Fluid Head is a pedestal-capable heavy-duty head supporting up to 88 lb. It features a 4-bolt flat base and comes with a 150mm half ball adapter that secures via four included screws. The QH1 has a side-mount camera plate system and includes a sliding plate with dual 3/8"-16 threaded mounting screws.
The fluid head is well suited for use with teleprompter setups, including those with talent monitors, as well as for supporting cameras with small box lenses, and it comes with two 2-piece telescoping pan bars that allow for easier integration of optional zoom controllers. Other features include continuous counterbalance, 7-step drag, independent pan and tilt locks, and an illuminated bubble level.
Libec QH
Camera Plate Features |
Sliding Balance Plate
|
Camera Mounting Screw |
2 x 3/8"-16 Male
|
Balance Plate Sliding Range |
2.95" / 75 mm
|
Base Mount |
4-Bolt Flat Base
|
Counter Balance |
Continuous (33 to 77 lb / 14.97 to 34.93 kg)
|
Center of Gravity |
4.92" / 125 mm
|
Bubble Level |
1 x Illuminated
|
Drag Control |
7-Step
|
Vertical Tilt |
+90° to -70°
|
Independent Pan Lock |
Yes
|
Independent Tilt Lock |
Yes
|
Load Capacity |
88 lb / 39.92 kg
|
Operating Temperature |
12 to 92°F / -20 to 60°C
|
Weight |
27.9 lb / 12.66 kg
|
